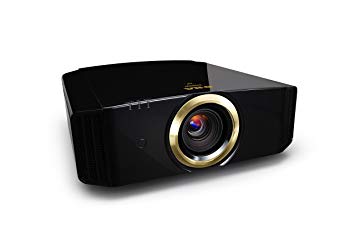

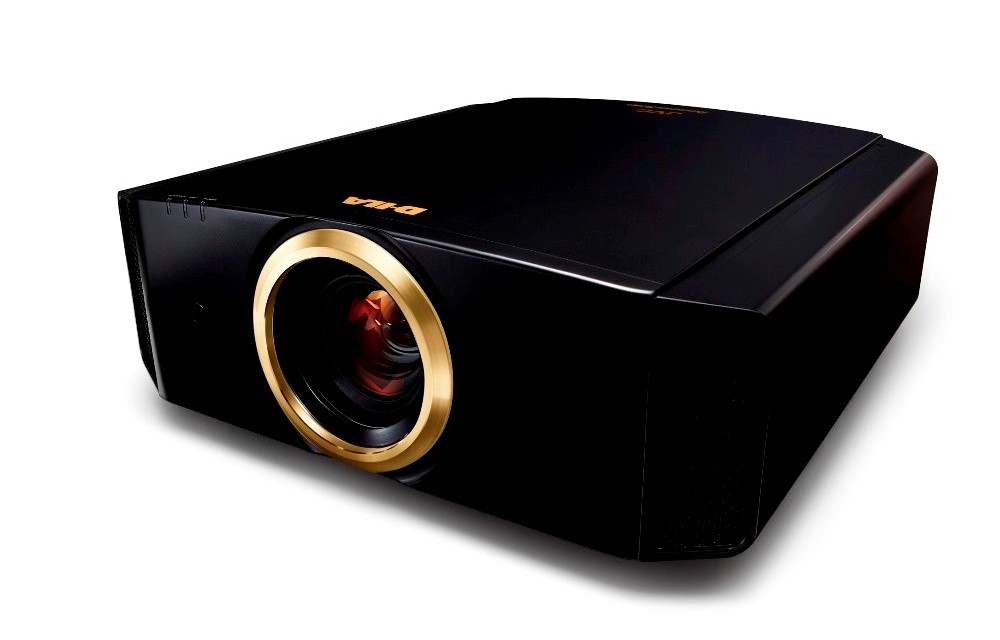

The DLA-RS520U is a high performance, fully-customizable home theater projector that produces exquisite quality images with class leading 130,000:1 native contrast ratio. This THX 3D and ISF certi­ed projector accepts native 4K 60P (4:4:4) material through Full Speed 18Gbps HDMI/HDCP 2.2 compatible inputs and displays it with stunning 3840 x 2160 precision.

JVC's 6th Generation D-ILA Imaging Device. The exceptional picture quality achieved by JVC projectors is a result of the precision technology behind the D-ILA device which features a 0.3µ pixel gap and high light eciency for bright, high native contrast and superior detail.

4K Precision JVC e-shift4 Technology. The 4th generation of e-shift provides optimization for signals up to 4K, new Multiple Pixel Control features AUTO input mode detection for convenience and adds signal compatibility extending to 4K60P (up to 4:4:4). A new processing algorithm improves sharpness for an advanced 4K picture.

HDR10 plus Hybrid Log-Gamma. HDR content such as UHD Blu-ray discs incorporate extended dynamic range, 10bit color and wide BT.2020 color gamut. This demands exceptional specications and exacting performance from display devices. DLA-RS520 supports BT.709 and Digital Cinema Initiative (DCI) color gamut with BT.2020 color mapping, with high native contrast and bright vivid images to let you experience a full complement of HDR content. Hybrid Log-Gamma is an additional HDR Gamma mode that is used for live broadcast or streaming events.

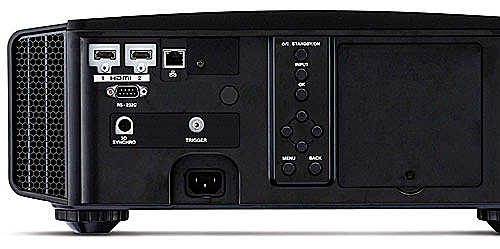

18Gbps Full Speed HDMI Inputs with HDCP2.2 With the current expansion of 4K streaming and the next generation Ultra HD Blu-ray, JVC has incorporated the latest HDMI/HDCP2.2 standard on both DLA-RS520 HDMI inputs allowing two HDCP2.2 copy protected devices to be connected at the same time up to 60 fps.

Superior Color Performance and Contrast — Improved Optical Engine Design. In order to take full advantage of UHD Blu-ray and HDR the optical engine incorporates advanced color ltering which enables a wider color gamut. The viewing experience comes alive with the vivid color saturation and extended contrast range found in these new formats. Extended color gamut enables a larger color palette to more faithfully reproduce the intent of the content creator in movies, sporting events or photography. A variety of color modes are available and can be setup as custom user memories.

Home Automation. All JVC Reference Series projectors are Control4 SDDP (Simple Device Discovery Protocol) software certified so they can easily be integrated into a Control4 home automation system.
