Sanyo PLC-XW200
LCD Projector, XGA, 2200 Lumens, Wired Networking, 5.5 lb., 3-Year Warranty
Item #0601-5630 Model #PLCXW200
Overview

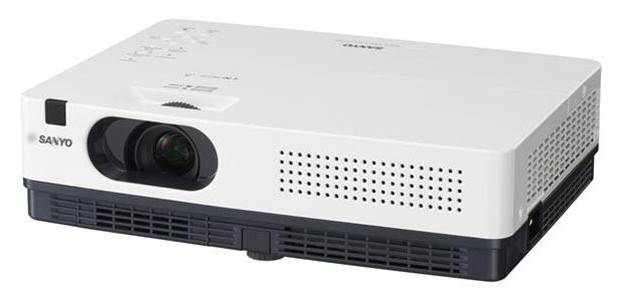

Sanyo PLC-XW200
XGA Ultraportable Multimedia Projector
The Sanyo PLC-XW200 is a portable XGA LCD projector designed for business and educational presentations. It delivers 2,200 ANSI lumens, a 500:1 contrast ratio, and a native resolution of 1024x768. Its multiple auto-setup features add value and convenience.
Auto Signal Detection greatly reduces setup time, while the Auto Vertical Keystone Correction function automatically detects the projector's position and angle and corrects for any image distortion. For its part, Auto Input Signal Search automatically detects the input signal and makes the necessary internal settings. The Guidance Function displays on-screen connection instructions when there is no input signal detected, enabling easy setup for expert users and novices alike.
Features
- Ultra-compact, fully portable XGA design: Not much larger than a laptop PC, the PLC-XW200 weighs less than 5.7 pounds and delivers true XGA picture quality in a versatile, go-anywhere system. Also, the PLC- XW200 may be ceiling or inverse-mounted for enhanced versatility.
-
Complete easy auto setup function, smart auto input search and auto vertical keystone correction: The PLC- XW200 provides an "Auto Set Up Function" that corrects keystone shaped distortion by searching for an input signal and detecting projector incline, therefore reducing setup time. It automatically compensates for keystone picture distortion. Auto Keystone Correction, Auto Input Search and Auto PC Adjustment make it a really smart projector.
- Wired LAN (RJ-45) for projector control: This model is equipped with Wired LAN (RJ-45) that allows you to manage and control the projector via Network. It is possible to check the operating time of the lamp and manage the warning notification by email. Power ON/OFF and switching of the input signal can also be controlled, saving you a lot of time.
- Environment friendly power consumption in standby mode: The power consumption is reduced in standby mode to 0.4 W, 84% lower than previous models.
- Dual D-Sub 15 inputs: The PLC-XW200 offers excellent flexibility via a pair of D-Sub 15 input terminals. Using an optional adapter cable, it can even accept component video signals. One of the D-Sub 15 terminals can be switched between input and monitor output for greater programming flexibility.
-
Blackboard/color board mode: What could be better for education than a blackboard mode? The PLC-XW200 is compatible with four differently colored (red, blue, green, and yellow) projection surfaces via Color Board Mode, without a screen.
Specifications
| Resolution | XGA |
| Brightness (typical) | 2200 ANSI lumens |
| Uniformity | 85% |
| Panel System | 0.55" TFT Poly x3 |
| Number of Pixels | 2,359,296 |
| Contrast Ratio (Full on/off) | 500:1 |
| Image Size | 40" – 300" |
| Aspect Ratio | 4:3 |
| Projection Lamp | 220W UHP |
| Scanning Frequency | H sync : 15 ~ 100 kHz V sync : 50 ~ 100 Hz |
| Dot Clock | 140 MHz |
| Fan Noise | 29 dBA (Eco) |
| Voltage | 100 V ~ 240 V |
| BTU Rating | 723 (Eco) |
| Power Consumption | 212 W (Eco) |
| Input signal compatibility | UXGA* / WXGA* / SXGA+* / SXGA* / XGA / SVGA / VGA / MAC, 480i, 480p, 575i, 575p, 720p, 1035i and 1080i (*: compression) |
| Color System | PAL / SECAM / NTSC / NTSC4.43 / PAL-M/ N |
| Projection Lens | F: 2.00 – 2.15; f: 18.38 ~ 22.06 mm |
| Throw Ratio | 1.62 – 1.92:1 |
| Throw Distance | 4.3 – 38.7 feet |
| Zoom / Focus | manual |
| Zoom Ratio | 1.2x |
| Up / Down Ratio | 6:1 |
| Digital Keystone Correction | Auto ±30 deg (Vertical) |
| Digital Zoom | 16x – 1/4x |
| Speaker Output | 1 W |
| Dimensions (W x H x D) | 13.13" x 3.35" x 9.72" (333.5 x 85.2 x 247.0 mm) not including protrusions |
| Weight | 5.5 lb (2.5 kg) |
| Replacement Lamp | 610 345 2456 |

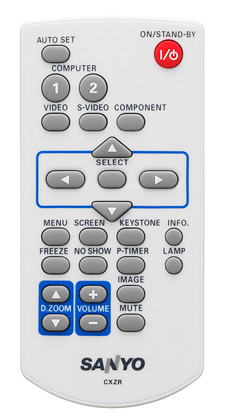

| Replacement Remote | 645 099 3213 |

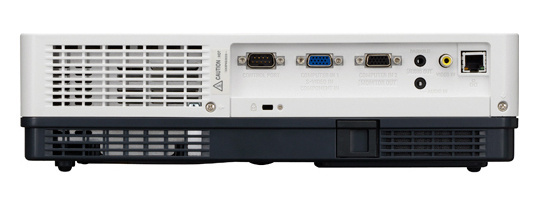

| Computer Terminal | D-sub15 x 1 : Analog RGB Input (Component and S-video input with conversion cable) D-sub15 x 1 : Analog RGB Input or Monitor out |
| Video Terminal | RCA x 1 : Composite video |
| Audio | Mini-Jack (stereo) x 1 : Input (for Computer & Video) Mini-Jack (stereo) x 1 : Output (variable audio out) |
| Communication Terminal | RJ-45 (LAN) D-sub 9pin (RS 232 C) |
| Included Accessories | Quick reference guide, Owner's manual (CD-ROM), CD-ROM read me note, CD-ROM (PJ-Net Manager application software), PIN code Label, Lamp replacement label, UL cable card, Warranty card, Power cord, Remote control, AAA Battery x 2, Lens cap, Strap for lens cap |
| Optional Accessories | POA-CACOMPVGA, POA-CAVGAS, POA-CASCART |
| User Maintenance | Clean air filters, replace lamp assembly |
Warranty
- 3 years parts and labor on the projector
- 90 days original lamp
- Quick Repair Program under warranty
