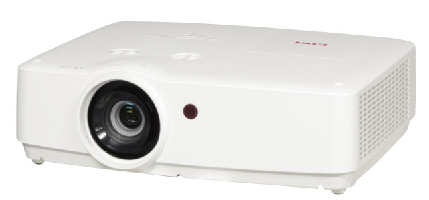

Eiki EK-306U
LCD Projector, 1920x1200 WUXGA, 5000 Lumens, H&V Lens Shift, D:W 1.07-1.75:1, 3 year warranty
Item #0601-5756 Model #EK306U
Overview
The EK-306U was designed to be installed where a large image is desired but throw distance is restricted due to limited space. These projectors incorporate a new lens with a shorter throw distance than the previous EK-300 series. The throw ratio for is 1.07~1.75:1. This makes the projector ideal for golf simulators and where there is someone standing close to the screen and no shadow is wanted.
The EK-306U offers Ease-of-Installation features such as large vertical and horizontal lens shift, Corner Keystone Correction usually reserved for more expensive projectors.
- Contrast Ratio 10.000 : 1 with Iris on & ECO mode

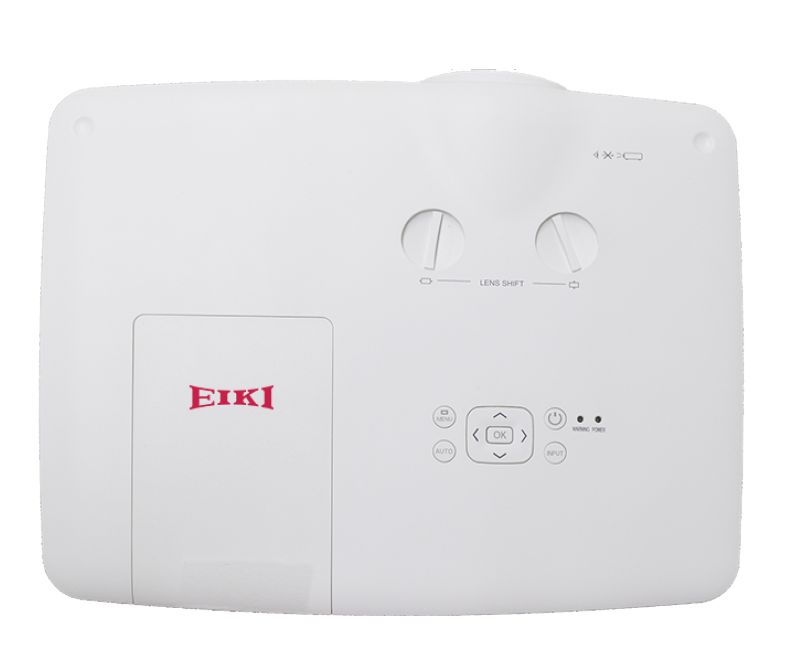

- Vertical and Horizontal Lens Shift
- Corner Correction
- Electrostatic Air Filter
- LAN Controlled: Crestron Room View / AMX Device discovery / PJ Link
- Easy maintenance - Top-accessed lamp and side-accessed filter
- Quick Power off, no need to keep power on while the projector lamp is cooling down
- Built-in 10-Watt Audio Speaker
- Compatible with a wide range of video formats from VGA up to WUXGA
Specifications
| Imaging Device | 0.64" 3 LCD |
| Brightness |
5,000 ANSI Lumens |
| Contrast Ratio |
10,000:1 |
| Resolution | WUXGA 1920x1200 |
| Color Reproduction |
10-bit (16.7 million colors) |

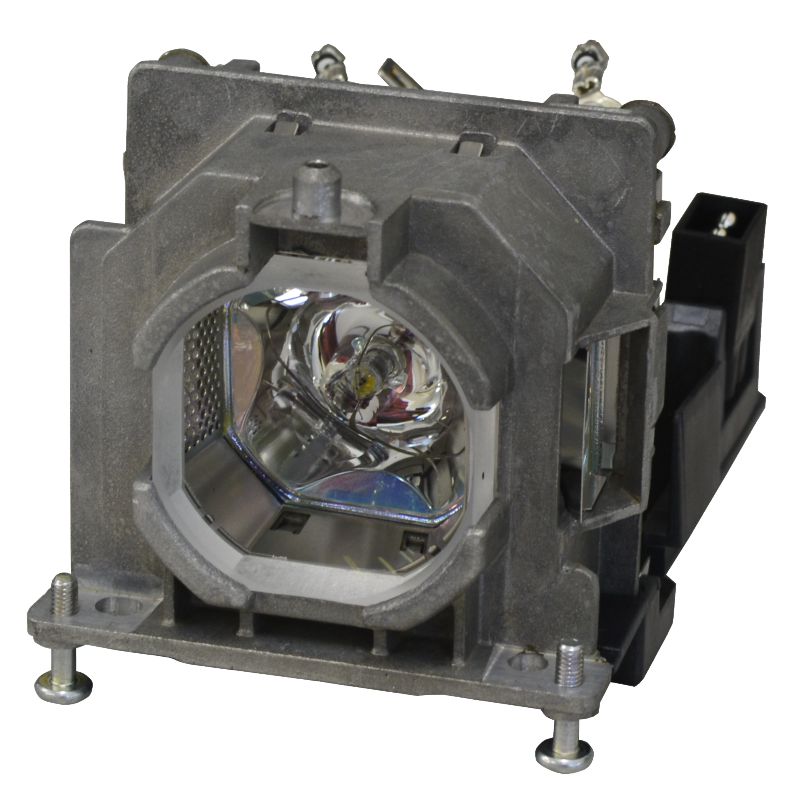

| Projection Lamp |
280 Watts UHP |
| Estimated Lamp Life (Eco / Normal) |
4,000 / 3,000 hours |
| Lens | Manual Zoom and Focus |
| Lens f-Stop |
1.6-1.9 |
| Lens Focal Length | 0.602-0.970 in (15.31-24.64mm) |
| Lens Throw Ratio |
1.07-1.75:1 |
| Lens Shift | Vertical ±45%, Horizontal ±10% Manual |
| Keystone Correction | Vertical ±30%, Horizontal ±15% Corner Correction |
| Fan Noise (Eco / Normal) | 33.5dB / 40.0dB |
| Dimensions (W x H x D) | 15.6"x4.9"x12.5" (395x128x318mm) |
| Weight | 9.8 lbs (4.45 KG) |
