Eiki EK-820U
Overview
High Contrast 100,000 ：1 (with Extreme Black Mode)
High Color reproduction
Digital Input Terminal (HDBaseT x 1, HDMI x 2 , DVI-D x 1)
20,000 Hours Light Source Life with Laser Technology
Flexible installation
- 360-degree free orientation (vertical and horizontal) projection capabilities
- Lens Shift H: +/- 15 %, V: +/- 50%
- Keystone Correction H: +/- 20 °, V: +/- 20 °, 4-Corner
- 7 Optional Lenses including Ultra Short Throw Lens
Built-in Picture in Picture and Picture by Picture
The lightest weight with 16.9kg ever in EIKI Laser Series
Specifications
|
Model (EAN) |
EK-820U (4571194679175) |
|||
|
Display Type |
0.67" 1 chip DMD |
|||
|
Resolution |
WUXGA (1920 x 1200) |
|||
|
Aspect Ratio |
16:10 |
|||
|
Brightness (ANSI) |
10,000 lm |
|||
|
Contrast Ratio (with Extreme Black mode) |
100,000:1 |
|||
|
Projection Light Source |
Laser (Blue and Red LD) + Phospher |
|||
|
Light Source Life |
20,000 hours |
|||
|
Image Diagonal |
Depends on lens (See below table) |
|||
|
Zoom & Focus |
Powered |
|||
|
Throw Ratio |
Depends on lens (See below table) |
|||
|
Lens Shift |
V: +/- 50 %, H: +/- 15% (Powered) |
|||
|
Keystone Correction |
V: +/- 20 degrees, H: +/- 20 degrees, 4-corner |
|||
|
Projection Elevation Adjustment |
Up to 5 degrees |
|||
|
Scanning Frequency |
H Sync: 15, 31 - 91.4 kHz, V sync: 24 - 30, 47 - 120 Hz |
|||
|
Dot Clock |
162 MHz |
|||
|
Input Signals - Computer |
WUXGA (1920 x 1200) - VGA ( 640 x 480) |
|||
|
Input Singals - Video |
1080 i/p, 720p, 576i/p, 480i/p |
|||
|
Terminal |
3G-SDI In |
BNC x 1 |
||
|
HDBaseT In |
RJ45 x 1 |
|
||
|
HDMI In |
HDMI (version 1.4) x 1 |
|
||
|
DVI In |
DVI-D x 1 |
|
||
|
VGA In |
D-Sub 15 x 1 |
|
||
|
LAN |
RJ45 x 1 |
|
||
|
Monitor Out |
D-Sub 15 x 1, HDMI (version 1.4) x 1 |
|
||
|
Wi-Fi |
USB Type A x 1 |
|
||
|
3D SYNC In |
MINI DIN 3 pin x 1 |
|
||
|
3D SYNC Out |
MINI DIN 3 pin x 1 |
|
||
|
Service |
MINI USB x 1 |
|
||
|
RS232C |
D-sub 9 x 1 |
|
||
|
Remote Control In |
3.5mm Mini Jack in x 1 |
|
||
|
Fun Noise (Eco / Normal) |
32 dB / 35 dB |
|||
|
Dimensions (W x H x D) |
484 x 181 x 509 mm |
|||
|
Weight (without Lens) |
23.4 kg |
|||
|
Power Requirements |
AC 100 - 240 V, 50/60 Hz |
|||
|
Power Consumption (Eco / Normal) |
480 W / 945 W |
|||
|
Thermal Dissipation |
3213 BTU / hour |
|||
|
Standard Accessories |
AC Power Cord x 2 (U.S. A. & Euro), VGA cable x 1, Lens Cover x 2, Remote Control (with AAA batteries x 2), Quick Start Guide, Safety Guide- |
|||
Accessories

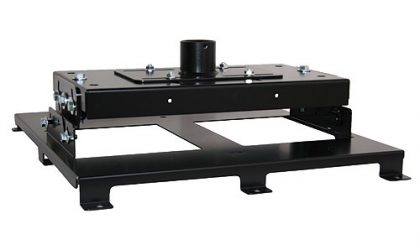

.jpg) |

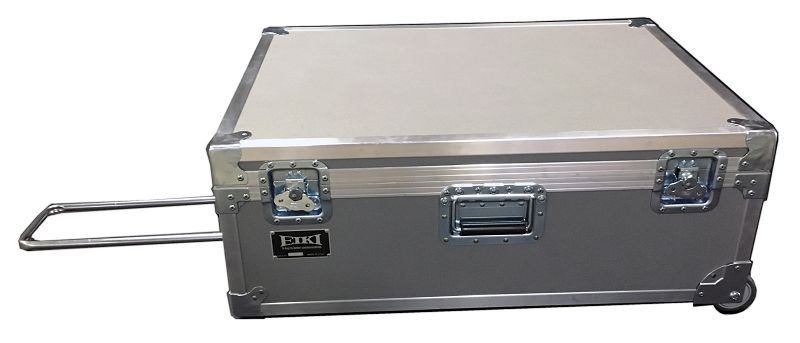

.jpg) |
 |
 |
 |
 |
 |
 |
 |
 |
|
| Model | 0001-5045 | 0001-5046 | AH-A25010 | AH-A22010A | AH-A22020 | AH-A22050 | AH-A21010 | AH-A23010 | 0183-5042 | 0173-5040 |
| Throw Ratio | 0.36:1 | 0.75 - 0.95:1 | 0.95 - 1.22:1 | 1.22 - 1.53:1 | 1.52 - 2.92:1 | 2.90 - 5.50:1 | N/A | N/A | ||
| f/stop | 2.8 | 3.5 | 2.4 | 2.3-2.53 | 2.3-2.57 | 2.0-2.32 | 2.3-3.39 | 2.3-2.74 | N/A | N/A |
Warranty
Limited Warranty: to the original end use customer only
Only the laser light engine on Eiki laser projectors will have a 20,000 hour warranty
Projector: 3 years / 6000 hours (whichever occurs first)
