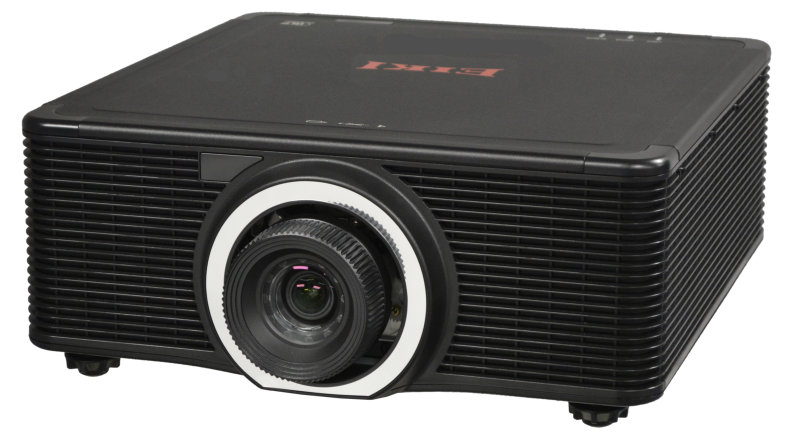

Eiki EK-815U

Red-Blue Laser/Phosphor 1-DLP Projector, 1920x1200 WUXGA, 8500 Lumens, No Lens, 3 years or 6000 Hr warranty
Part #: 0601-5767    Mfr #: EK815U

Eiki EK-815U

Overview

High Contrast 100,000 :1 (with Extreme Black On)

Digital Terminal (HDBaseT, HDMI IN/OUT, 3G-SDI IN, DVI-D IN)

20,000 Hours Light Source Life with Laser Technology

Flexible Installation

  • Any Orientation (vertical and horizontal) and rotated 360- degree at any angle, Portrait Projection
  • Lens Shift H: +/- 15 %, V: +/- 50 %
  • Keystone Correction  H: +/- 20 °, V: +/- 20 ° , 4-Corner
  • Geometric Correction and Blending Function

6 Optional Lenses

Built-in Picture in Picture and Picture by Picture

Wired & Wireless Network Monitoring and Control

Sealed Optical Engine design (IP6X)

Specifications

  • Model (EAN)

    EK-815U (4571194679083)

    Display Type

    0.67" 1chip DMD

    Resolution

    WUXGA (1920 x 1200)

    Aspect Ratio

    16:10

    Brightness (ANSI)

    8,500 lm

    Contrast Ratio (with Extreme Black mode)

    100,000:1

    Projection Light Source

    Laser (Blue and Red LD) + Phospher

    Light Source Life

    20,000 hours

    Image Diagonal

    Depends on lens (See below table)

    Zoom & Focus

    Powered

    Throw Ratio

    Depends on lens (See below table)

    Lens Shift

    V: +/- 50 %, H: +/- 15% (Powered)

    Keystone Correction

    V: +/- 20 degrees, H: +/- 20 degrees, 4-corner

    Projection Elevation Adjustment

    Up to 5 degrees

    Scanning Frequency

    H Sync: 15, 31 - 91.4 kHz, V sync: 24 - 30, 47 - 120 Hz

    Dot Clock

    162 MHz

    Input Signals - Computer

    WUXGA (1920 x 1200) - VGA ( 640 x 480)

    Input Singals - Video

    1080 i/p, 720p, 576i/p, 480i/p

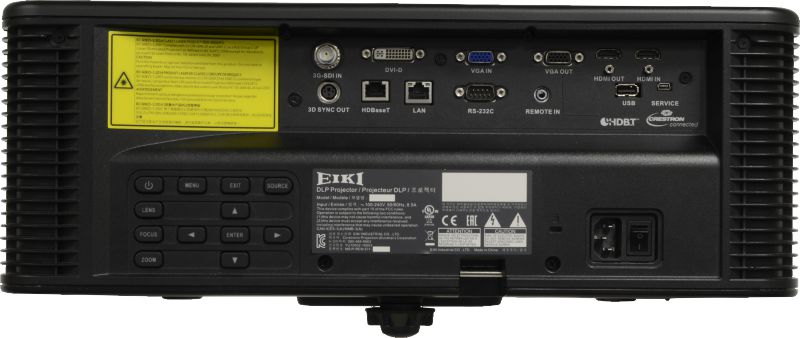

    Terminal

    3G-SDI

    BNC x 1

    HDBaseT

    RJ45 x 1



    HDMI

    HDMI (version 1.4) x 1



    DVI

    DVI-D x 1



    VGA

    D-Sub 15 x 1



    LAN

    RJ45 x 1



    Monitor Out

    D-Sub 15 x 1, HDMI x 1



    Wi-Fi

    USB Type A x 1



    3D SYNC Out

    MINI DIN 3 pin x 1



    Service

    MINI USB x 1



    RS232C

    D-sub 9 x 1



    Remote Control

    3.5mm Mini Jack in x 1



    Fun Noise (Eco / Normal)

    32 dB / 35 dB

    Dimensions (W x H x D)

    484 x 181 x 509 mm

    Weight (without Lens)

    22.9 kg

    Power Requirements

    AC 100 - 240 V, 50/60 Hz

    Power Consumption (Eco / Normal)

    370 W / 700 W

    Thermal Dissipation

    2380 BTU / hour

    Standard Accessories

    AC Power Cord x 2 (U.S. A. & Euro),

    VGA cable x 1, Lens Cover x 2,

    Remote Control (with AAA batteries x 2),

    Quick Start Guide, Safety Guide

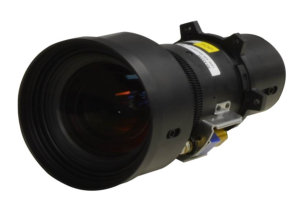

Accessories

Model

AH-A25010 AH-A22010A  AH-A22020 AH-A22050 AH-A21010 AH-A23010 0001-5045 0001-5046

Throw Ratio

0.36:1 0.75 - 0.95:1 0.95 - 1.22:1 1.22 - 1.53:1 1.52 - 2.92:1 2.90 - 5.50:1
f/stop 2.4 2.3-2.53 2.3-2.57 2.0-2.32 2.3-3.39 2.3-2.74 2.8 3.5

Warranty

Limited Warranty: to the original end use customer only

Only the laser light engine on Eiki laser projectors will have a 20,000 hour warranty

Projector: 3 years / 6000 hours (whichever occurs first)
