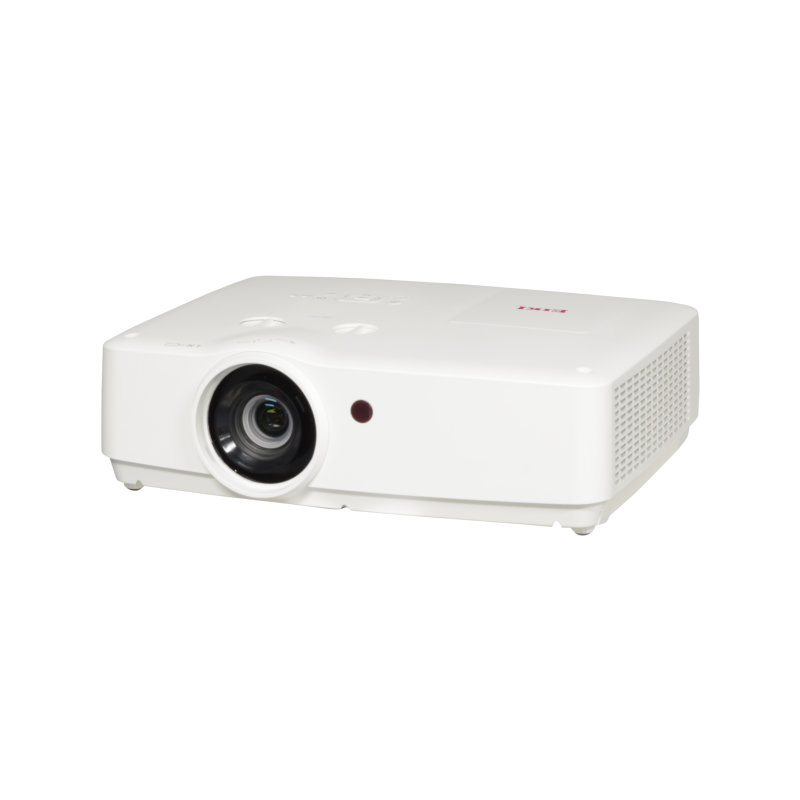

Eiki EK-307W

LCD Projector, 1280x800, 5100 Lumens, H&V Lens Shift, Curved Screen Correction, Corner Correction, 3 year warranty
Part #: 0601-5771    Mfr #: EK307W

Eiki EK-307W

Features

The EK-307W was designed to be installed where a large image is desired but throw distance is restricted due to limited space. This projector incorporate a new lens with a shorter throw distance than the previous EK-300 series. The throw ratio is 1.16~1.89:1.

The EK-307W offer Ease-of-Installation features such as large vertical and horizontal lens shift, Corner Keystone Correction, and Curved Image Correction, usually reserved for more expensive projectors.

Suitable for installation in small meeting rooms, the  EK-307W is an excellent choice to replace previously installed, short throw projectors.

EK-307W |  5100Im  |   WUXGA (1280 x 800)

Features:

  • Contrast Ratio 10.000 : 1 with Iris on & ECO mode
  • Fulfilling I / O terminals (2 HDMIs, 2 VGAs, USB-A / B)
  • X 1.6 Zoom Lens
  • Vertical / Horizontal Lens Shift
  • Vertical / Horizontal Keystone & Corner Correction
  • Electrostatic Filter
  • LAN Controled
    Grestron Room view / AMX Device discovery / PJ Link
  • Easy maintenance

       (Top-accessed lamp and side-accessed filter)

  • Quick Power off
  • Built-in 10-Watt Audio Speaker
  • WUXGA – VGA compatible
  • Flexible Installation
    Lens Shift

Vertical: +/- 45% Horizontal: +/- 10%

Specifications

Imaging Device 0.59" 3 LCD
Brightness
5,100 ANSI Lumens
Contrast Ratio
10,000:1
Resolution WUXGA 1280 x 800
Color Reproduction
10-bit (16.7 million colors)
Projection Lamp
280 Watts UHP
Estimated Lamp Life (Eco / Normal)
4,000 / 3,000 hours
Lens Manual Zoom and Focus
Lens f-Stop
1.6-1.9
Lens Focal Length 0.602-0.970 in (15.31-24.64mm)
Lens Throw Ratio
1.16 – 1.89 : 1
Lens Shift Vertical ±45%, Horizontal ±10% Manual
Keystone Correction Vertical ±30%, Horizontal ±15% Corner Correction
Fan Noise (Eco / Normal) 33.5dB / 40.0dB
Dimensions (W x H x D) 15.6"x4.9"x12.5" (395x128x318mm)
Weight 9.8 lbs (4.45 KG)
