Eiki EK-121W

LCD Projector, 1280x800 WXGA, 4600 Lumens, 10,000 Hr Lamp (20,000 in Eco Mode), 3 Year Warranty
Part #: 0601-5775    Mfr #: EK-121W

Eiki EK-121W

Overview

3LCD Projector with Innovative Long Life Lamp

EK-121W

  • 4,600 center lumens bright with 80% uniformity and a 15,000:1 contrast ratio.
  • 10,000 Hour Lamp, 20,000 Hours in Eco Mode
  • Native 1280x800 WXGA resolution. Compatible with inputs up-to UXGA and WUXGA
  • Supports analog and digital video input in all color standards up-to 1080p.
  • HDMI with MHL (Mobile High-Definition Link) displays HD Video from Smartphones & Tablets.
  • Convenient mid-range (1.66:1) manual zoom and focus lens.
  • Horizontal, Vertical & Corner Keystone Correction.
  • Accepts composite, component, and S-Video in all major standards.
  • Displays both 4:3 and 16:9 aspect ratios. Supports most HDTV resolutions.
  • Built-in 10 Watt sound system. Closed Caption decoding (NTSC).
  • Pin Cushion / Barrel image correction. Wired network control.
  • Side-accessed air filter for ease of maintenance.
  • Auto input selection. Built-in Test Patterns.
  • Security bar. Kensington® MicroSaver® security slot. PIN lock.
  • 3 year projector warranty.

Crestron RoomView™ & AMX Device Discovery Technology

Included accessories: Quick Start Guide, 5.0 ft (1.5 m) VGA Cable, 6.0 ft (1.8 m) Detachable Power Cord, Remote Control (with 2x AAA Batteries)

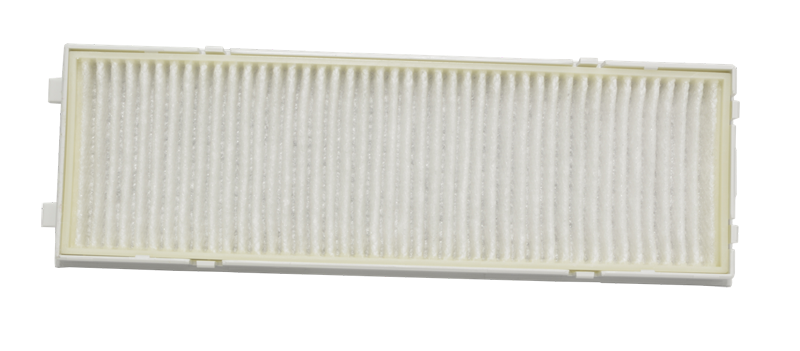

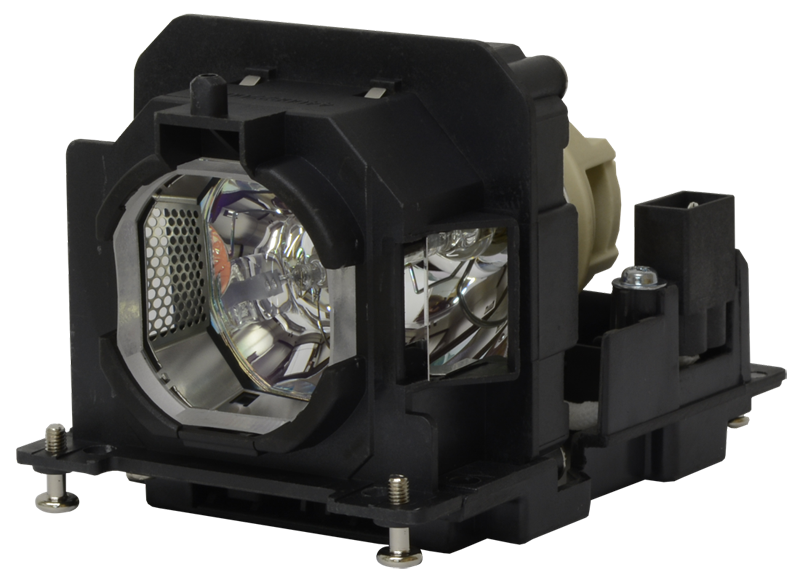

Optional Accessories: Replacement Lamp, Replacement Filter, Component Video Cable (3RCA to Dsub15), Ceiling Mount, Ceiling Post and Plate

Features

Key Features

  • Long Life Lamp
    • 20,000 hours (Eco)
    • 10,000 hours (Normal)
  • High Contrast Ratio 15,000:1
  • Optical Zoom 1.66x
  • Digital Input HDMI x 2
  • Flexible installation
    • Keystone Correction:  H: ±15°, V: ±30°
    • Corner Correction
    • Curved Screen Correction
  • Quick Power OFF
  • Built-in 10-Watt Audio Speaker

Specifications

Specifications: Model EK-121W

Brightness 4,600 Center Lumens Image Signal Inputs
Contrast Ratio 15,000:1 Computer 1 (Component / S-Video) Dsub15 x 1
Illumination Uniformity 80% Digital Video (w/ HDCP & MHL) HDMI x 2
Resolution and Aspect Ratio WXGA (1280x800), 16:10 USB Type A - Memory Viewer USB Type A x 1
Color Reproduction 10-bit (16.7 million colors) USB Type B - USB Display / Firmware USB Type B x 1
Projection Lamp 225 Watts UHP Composite Video RCA x 1
Estimated Lamp Life (Eco / Normal) 20,000 / 10,000 hours Audio Signal Inputs
Total Pixels 3,072,000 (1280x800) x 3 Computer Audio MiniStereo x 1
Imaging System 0.64 in (16 mm) inorganic LCD Panels x 3 Video Audio RCA x 2 (L/R)
Scanning Frequency Auto: H Sync. 15-91 KHz, V Sync. 24-85 Hz Outputs
Pixel Clock up-to 160 MHz Computer Monitor Dsub15 x 1
Lens Attached - Manual Zoom and Focus Audio Output Variable, Stereo: MiniStereo x 1
Lens Specs f: 1.7-2.11; FL: 0.689-1.142 in (17.50-29.01 mm) Amplifier Mono: 10 Watt
Lens Ratios Zoom Max:Min: 1.66:1; Throw:Width 1.26-2.09:1 Speaker 1.4 in (3.7 cm) x 1 (Mono)
Image Diagonal 30-300 in (76.2-762 cm) Fan Noise (Eco / Normal) 30.0 dB / 37.0 dB
Image Width 2.6-27.5 ft (0.8-8.4 m) Cabinet Size (HxWxD) - excluding legs 3.9 x 13.6 x 10.3 in (9.9 x 34.5 x 26.1 cm)
Throw Distance 2.66-45.50 ft (0.812-13.869 m) Weight 7.0 lb (3.2 kg)
Projector Elevation Adjustment (legs) up-to 10° Packaged Cabinet Size (HxWxD) 7.7 x 17.4 x 15.2 in (19.5 x 44.2 x 38.6 cm)
Maximum Pitch Up-to 10° Up or Down Packaged Weight 10.4 lb (4.7 kg)
Anti Keystone Fixed Image Offset, Ratio (Top/Bottom) 8.71:1 Operating Temperature 41-95°F (5-35°C)
Vert/Horiz. Keystone Correction Digital: V: ±30° - H: ±15°, Corner Keystone Electrical Safety Compliance IEC / UL / cUL
Image Orientation Normal, Reversed, Inverted Electromagnetic Compatibility FCC Class B, CE Mark
Local Control / Power Management Full Function / Auto Shutdown Power Requirements 100-240V AC, 50/60 Hz
Remote Control Wireless x 1 Power Consumption 0.5 W in Eco Standby mode, up-to 320 W
RS-232 Control Dsub9 x 1 Heat up-to 1092 BTU/hr
LAN Port RJ45 x 1 Security Facilities Kensington® Security Slot
Computer Input in Pixels up-to 1600x1200 (4:3), 1920x1200 (16:10) UPC 4571194679397
Analog 4x3 Inputs UXGA, SXGA+, SXGA, XGA, SVGA, VGA, MAC User Maintenance Clean Filter, Replace Lamp
Analog Wide Inputs WUXGA, WSXGA+, WXGA Limited Warranty: to the original end use customer only
Digital 4x3 Inputs UXGA, SXGA+, SXGA, XGA, SVGA, VGA, MAC Projector *3 years / 6000 hours
Digital Wide Inputs WUXGA, WSXGA+, WXGA Lamp *1 year ownership / 500 hours use
Video Formats NTSC / PAL / SECAM
Video Formats NTSC / PAL / SECAM *(whichever occurs first)
Video Input Analog 480i/p, 575i/p
Video Input Digital 480p, 575p, 720p, 1080i/p
Image Signal Resizing Smart Scaling Technology
