Eiki EK-131W
Overview

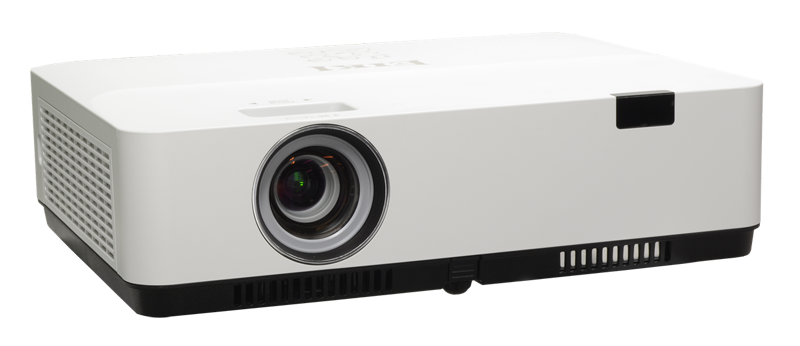

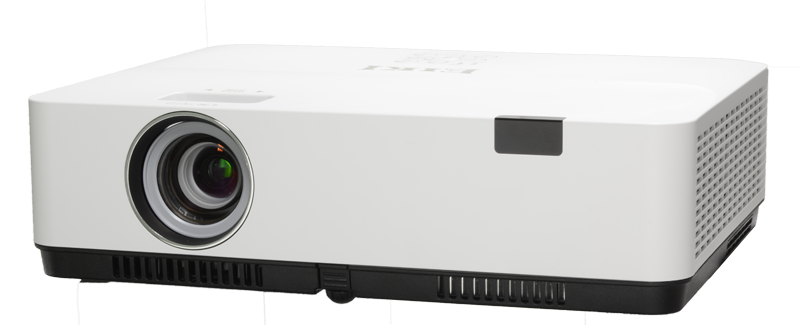

Eiki EK-131W
WXGA 3-LCD Portable Entry Level Projector
The EK-131W provides beautiful, high-contrast, and clear images. Designed with the most advanced technology for portability, durability, and ease of use, this projector uses built-in multimedia features, a palette of 16.7 million colors, and matrix liquid crystal display (LCD) technology.
This new model also reduces Total Cost of Ownership (TCO) with a built-in innovative long-life Lamp that achieves a lifetime of 2.5 times that of conventional models in Normal mode, and 2 times in Eco mode.
Key Features:
- 5000 center lumens
- Long life lamp - 20,000 hours (eco), 10,000 hours (normal)
- High contrast ratio 15,000:1
- Optical zoom 1.66x
Features
- 5,000 center lumens of brightness with 80% uniformity and a 15,000:1 contrast ratio
- Native WXGA resolution. Compatible with inputs up to UXGA and WUXGA
- Infinity Lamp technology provides long 20,000 (eco) / 10,000 (normal) hours of lamp life
- 10-bit color processing for superior color reproduction
- Supports analog and digital video input in all color standards up to 1080p
- HDMI with MHL (Mobile High-Definition Link) displays HD Video from smartphones & tablets
- Convenient mid-range (1.66:1) manual zoom and focus lens
- Horizontal, Vertical & Corner Keystone Correction
- Pincushion/Barrel & 6-point Geometric Correction
- Displays 4:3, 16:9 and 16:10 aspect ratios. Supports most HDTV resolutions.
- Built-in 16-watt sound system and Closed Caption decoding (NTSC)
- Wired network control and monitoring
- Side-accessed air filter for ease of maintenance
- Auto input selection and built-in Test Patterns
- Security bar, Kensington® MicroSaver® security slot, PIN lock
- Compatible with Creston RoomView™ & AMX Device Discovery Technology
- 3-year projector warranty
Specifications
| Brightness |
5,000 Center Lumens |
| Contrast Ratio |
15,000:1 |
| Illumination Uniformity |
80% |
| Resolution and Aspect Ratio |
WXGA (1280 x 800), 16:10 |
| Color Reproduction |
10-bit (16.7 million colors) |
| Projection Lamp |
240 Watts UHP |
| Estimated Lamp Life |
20,000 / 10,000 hours (Eco/Normal) |
| Total Pixels | 3,072,000 (1280x800) x 3 |
| Imaging System |
0.64 in (16 mm) inorganic LCD Panels x 3 |
| Scanning Frequency |
Auto: H Sync. 15–91 kHz, V Sync. 24–85 Hz |
| Pixel Clock |
Up to 160 MHz |
| Lens |
Attached – Manual Zoom and Focus |
| Lens Specs |
F=1.7–2.11; f=0.689–1.142 in (17.50–29.01 mm) |
| Lens Ratios |
Zoom Max:Min=1.66:1; Throw Ratio=1.26-2.09:1 |
| Image Diagonal |
30–300 in (76.2–762 cm) |
| Image Width |
2.6–27.5 ft (0.8–8.4 m) |
| Throw Distance |
2.66-45.50 ft (0.812-13.869 m) |
| Projector Elevation Adjustment (legs) |
Up to 10° |
| Maximum Pitch |
Up to 10° Up or Down |
|
Anti Keystone |
Fixed Image Offset, Ratio (Top/Bottom) 8.71:1 |
| Vert/Horiz. Keystone Correction |
Digital: V: ±30°, H: ±30°, Corner Keystone |
| Image Orientation |
Normal, Reversed, Inverted |

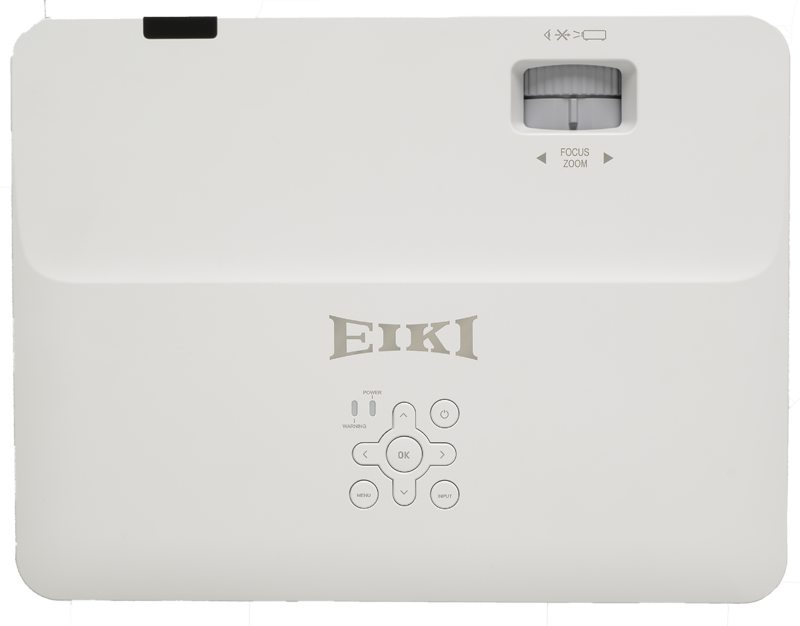

| Local Control / Power Management |
Full Function / Auto Shutdown |

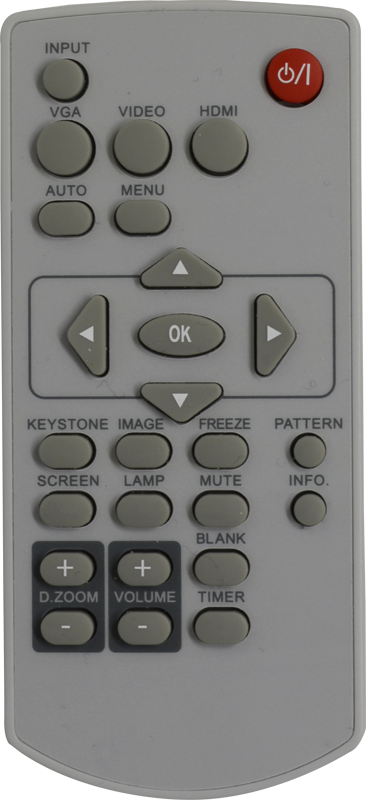

| Remote Control |
Wireless x 1 |
| RS-232 Control |
Dsub9 x 1 |
| LAN Port |
RJ45 x 1 |
| Computer Input in Pixels |
Up to 1600 x 1200 (4:3), 1920 x 1200 (16:10) |
| Analog 4x3 Inputs |
UXGA, SXGA+, SXGA, XGA, SVGA, VGA, MAC |
| Analog Wide Inputs |
WUXGA, WSXGA+, WXGA |
| Digital 4x3 Inputs |
UXGA, SXGA+, SXGA, XGA, SVGA, VGA, MAC |
| Digital Wide Inputs |
WUXGA, WSXGA+, WXGA |
| Video Formats |
NTSC / PAL / SECAM |
| Video Input Analog |
480i/p, 575i/p |
| Video Input Digital |
480p, 575p, 720p, 1080i/p |
| Image Signal Resizing |
Smart Scaling Technology |

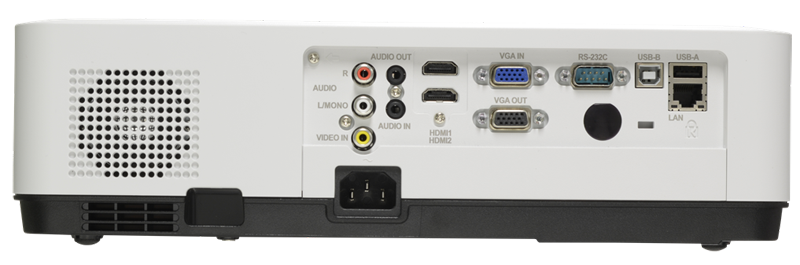

| Image Signal Inputs: | |
| Computer 1 (Component/S-Video) |
Dsub15 x 1 |
| Digital Video (w/ HDCP & MHL) |
HDMI x 2 |
| USB Type A - Memory Viewer |
USB Type A x 1 |
| USB Type B - USB Display/Firmware |
USB Type B x 1 |
| Composite Video |
RCA x 1 |
| Audio Signal Inputs: | |
| Computer Audio |
MiniStereo x 1 |
| Video Audio |
RCA x 2 (L/R) |
| Outputs: | |
| Computer Monitor |
Dsub15 x 1 |
| Audio Output |
Variable, Stereo: MiniStereo x 1 |
| Amplifier |
Mono: 10 Watt |
| Speaker |
1.4 in (3.7 cm) x 1 (Mono) |
| Fan Noise |
28.0 dB / 37.0 dB (Eco / Normal) |
| Cabinet Size (HxWxD) - excluding legs |
3.9 x 13.6 x 10.3 in (9.9 x 34.5 x 26.1 cm) |
| Weight |
7.0 lb (3.2 kg) |
| Operating Temperature |
41–95°F (5–35°C) |
| Electrical Safety Compliance |
IEC / UL / cUL |
| Electromagnetic Compatibility |
FCC Class B, CE Mark |
| Power Requirements |
100–240 V AC, 50/60 Hz |
| Power Consumption |
0.5 W in Eco Standby mode, up to 340 W |
| Heat |
Up to 1,160 BTU/hr |
| Security Facilities |
Kensington® Security Slot |
| User Maintenance |
Clean Filter, Replace Lamp |
| Limited Warranty: to the original end use customer only | |
| Projector |
3 years / 6000 hours (whichever occurs first) |
| Lamp |
10,000 hours use |
| Included Accessories |
Quick Start Guide, 5.0 ft (1.5 m) VGA Cable, 6.0 ft (1.8 m) Detachable Power Cord, Remote Control (with 2x AAA Batteries) |
| Optional Accessories |
Replacement Lamp, Replacement Filter, Component Video Cable (3RCA to Dsub15), Ceiling Mount, Ceiling Post and Plate |
Accessories
 |
Ceiling Mounts | |
 |

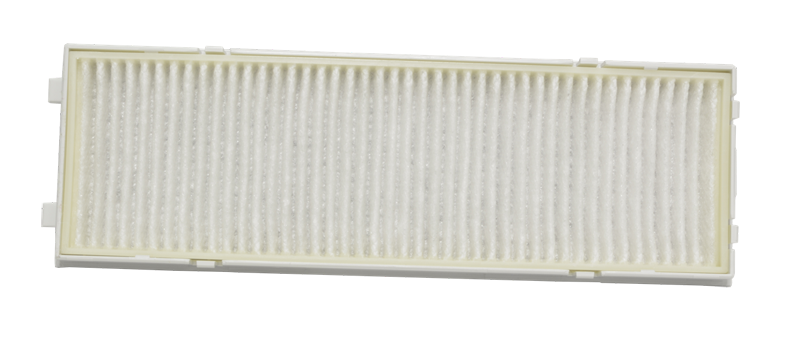

Replacement Filter (63340044) | |
 |

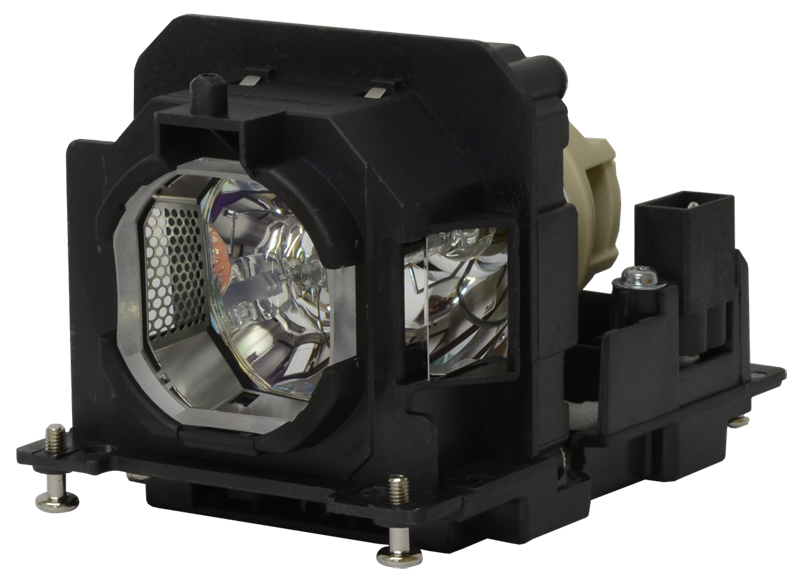

Replacement Lamp |
