Eiki EK-308ST-B
Overview
Available June 2025

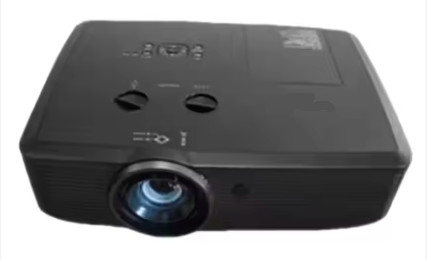

Eiki EK-308ST-B
Higher Brightness in a Compact Body, now with a short-throw lens
The EK-308U possesses the highest brightness among Eiki's portable projectors. Equipped with a variety of input and output terminals on its compact body (including HDMI, VGA, LAN and RS-232C), it displays bright and clear images, making it a perfect choice LCD projector short-throw applications.
With this 5600 lumen projector, maintenance is easy thanks to a top-accessed lamp and side-accessed filter. This Eiki projector has an electrostatic filter, providing highly effective filtration for increased dust protection.
Horizontal and vertical lens shift, keystone correction, and corner correction allow flexible installation in a variety of situations. The EK-308U portable projector is suitable for golf simulators and other small to medium-size rooms where a short-throw lens is needed. By removing the conversion lens from the primary lens, the projector can also be used for standard-throw applications (1.07-1.75:1).
Features
- 5600/6000 (short-throw/standard throw) center lumens of brightness with 80% uniformity and a 10,000:1 contrast ratio
- Native WUXGA resolution; compatible with inputs up to UXGA and WUXGA
- Supports analog and digital video input in all color standards up to 1080p
- HDMI with MHL (Mobile High-Definition Link) displays HD video from smartphones & tablets
- Supports both 0.75-1.22:1 and 1.07-1.75:1 throw ratios by either attaching or removing the 0.7:1 conversion lens
- Convenient mid-range (1.6:1) manual zoom and focus lens
- Horizontal, vertical & corner keystone correction
- Horizontal & vertical lens shift; wired network control
- Accepts composite, component, and S-Video in all major standards
- Displays both 4:3 and 16:9 aspect ratios. Supports most HDTV resolutions.
- Built-in 10-watt sound system; Closed Caption decoding (NTSC)
- Side-accessed air filter & top accessed lamp for ease of maintenance
- Auto input selection; built-in Test Patterns.
- Security bar, Kensington® MicroSaver® security slot, PIN lock
- 3-year projector warranty
Specifications
| Brightness |
5,600 Center Lumens with 0.7:1 conversion Lens, 6,000 Center Lumens without conversion lens |
| Contrast Ratio |
10,000:1 |
| Illumination Uniformity |
80% |
| Native Resolution and Aspect Ratio |
WUXGA (1920 x 1200), 16:10 |
| Color Reproduction |
10-bit (16.7 million colors) |
| Projection Lamp |
300 Watts UHP |
| Estimated Lamp Life |
4,000 / 3,000 hours (Eco/Normal) |
| Total Pixels |
6,912,000 (1920 x 1200) x 3 |
| Imaging System |
0.64 in (16 mm) inorganic LCD Panels x 3 |
| Scanning Frequency |
Auto: H Sync. 15–100 kHz, V Sync. 48–85 Hz |
| Pixel Clock |
Up to 150 MHz |
| Lens |
Attached – Manual Zoom and Focus |
| Primary Lens Specs |
F-stop=1.6–1.9; focal distance=0.602–0.970 in (15.31–24.64 mm) |
| Lens Ratios |
D:W 0.75-1.22:1 with conversion lens, D:W=1.07–1.75:1 without conversion lens |
| Image Diagonal |
30–300 in (76.2–762 cm) |
| Image Width |
2.1–21.2 ft (0.64–6.4 m) |
| Projector Elevation Adjustment (legs) |
Up to 10° |
| Maximum Pitch |
Up to 30° Up or Down |
| Vert/Horiz. Keystone Correction |
Digital: V: ±30°(Auto), H: ±15° (Auto) Corner Keystone |
| Lens Shift |
Vertical: ±45%, Horizontal: ±9% (manual) |
| Image Orientation |
Normal, Reversed, Inverted |
| Local Control / Power Management |
Full Function / Auto Shutdown |
| Remote Control |
Wireless x 1 |
| RS-232 Control |
Dsub9 x 1 |
| LAN Port |
RJ45 x 1 |
| Computer Input in Pixels |
Up to 1600 x 1200 (4:3), 1920 x 1200 (16:10) |
| Analog 4x3 Inputs |
UXGA, SXGA+, SXGA, XGA, SVGA, VGA, MAC |
| Analog Wide Inputs |
WUXGA, WSXGA+, WXGA |
| Digital 4x3 Inputs |
UXGA, SXGA+, SXGA, XGA, SVGA, VGA, MAC |
| Digital Wide Inputs |
WUXGA, WSXGA+, WXGA |
| Video Formats |
NTSC / PAL / SECAM |
| Video Input Analog |
480i/p, 575i/p |
| Video Input Digital |
480p, 575p, 720p, 1080i/p |
| Image Signal Resizing |
Smart Scaling Technology |
| Image Signal Inputs | |
| Computer 1 (Component/S-Video) |
Dsub15 x 1 |
| Computer 2 (switchable Monitor Out) |
Dsub15 x 1 |
| Digital Video (w/ HDCP & MHL) |
HDMI x 2 |
| USB Type A - Memory Viewer |
USB Type A x 1 |
| USB Type B - USB Display/Firmware |
USB Type B x 1 |
| Composite Video |
RCA x 1 |
| Audio Signal Inputs | |
| Computer Audio |
MiniStereo x 1 |
| Video Audio |
RCA x 2 (L/R) |
| Outputs | |
| Computer Monitor (Computer 2) |
Dsub15 x 1 |
| Audio Output |
Variable, Stereo: MiniStereo x 1 |
| Amplifier |
Mono: 10 Watt |
| Speaker |
1.4 in (3.7 cm) x 1 (Mono) |
| Fan Noise (@ 1m) |
35.9 dB / 40.9 dB (Eco / Normal) |
| Cabinet Size (HxWxD) - excluding legs |
5.0 x 15.5 x 12.5 in (12.8 x 39.5 x 31.8 cm) |
| Weight |
9.9 lb (4.5 kg) |
| Packaged Cabinet Size (HxWxD) |
9.0 x 17.5 x 19.5 in (23.0 x 44.0 x 49.5 cm) |
| Packaged Weight |
13.2 lb (6 kg) |
| Operating Temperature |
41–95°F (5–35°C) |
| Electrical Safety Compliance |
IEC / UL / cUL |
| Electromagnetic Compatibility |
FCC Class B, CE Mark |
| Power Requirements |
100–240 V AC, 50/60 Hz |
| Power Consumption |
0.5 W in Eco Standby mode, up to 420 W |
| Heat |
Up to 1433 BTU/hr |
| Security Facilities |
Kensington® Security Slot |
| UPC |
4571194679427 |
| User Maintenance |
Clean Filter, Replace Lamp |
| Limited Warranty: to the original end use customer only | |
| Projector |
3 years / 6000 hours (whichever occurs first) |
| Lamp |
1 year ownership / 500 hours use (whichever occurs first) |
| Included Accessories |
Quick Start Guide, 5.0 ft. (1.5 m) HDMI Cable, 5.0 ft (1.5 m) Detachable Power Cord, Remote Control (with 2 AAA Batteries) |
| Optional Accessories |
Replacement Lamp, Component Video Cable (3RCA to Dsub15), S-Video Cable (S-Video to Dsub15), Ceiling Mount, Ceiling Post and Plate |
Accessories
 |
Ceiling mounts | |
 |
(Image may be different from actual part.) |
|
 |
Air Filter (63340044) |
