Eiki V2000
Laser LCD Projector, WUXGA, 20K Lumens, H&V Lens Shift, No Lens, 3-Year Warranty
Item #0601-5813 Model #V2000
Overview
Eiki Pro V2000
20,000 Center Lumens, WUXGA, Large Venue 3LCD Laser Projector (No Lens)
The V2000 is Eiki's latest 3LCD projector with laser light source in the large venue projector PRO-V Series. This WUXGA resolution projector features a 3LCD image system with 1.0-inch panels and a blue phosphor laser source to deliver 20,000-lumen center brightness and 3,000,000:1 contrast ratio.
The newly designed cooling system and sealed optical engine provide this filterless projector with silent operation and maintenance-free fixed installation.
The V2000 also offers various connectivity options that provide greater flexibility for both signal input and control, such as RJ45, RS-232 control, LAN control support for Crestron RoomView™, and AMX Device Discovery Technology. Users will find ports for two HDMI In, HDBaseT In, 3G-SDI In, DVI-D In, VGA In, along with a connector for HDMI out.
The projector's 360-degree free orientation projection capabilities facilitate maximum installation versatility in any room. With its vertical and horizontal Lens Shift, Keystone Correction, built-in Edge Blending, and a suite of optional lenses, the V2000 makes an outstanding choice for theater, auditorium, houses of worship and other large venue applications.
Recommended applications:
- Auditoriums
- Large conference rooms
- Exhibitions / Events
- Museums / Galleries
- Theaters / Halls
- Houses of worship
- Signage
Features
- 20,000 center lumens brightness with 80% uniformity and a 3,000,000:1 contrast ratio
- Long life 20,000-hour Laser + Phosphor Light Source
- LCD + Laser Optical Engine
- 10-bit color processing for superior color reproduction
- Native WUXGA resolution. Compatible with inputs up to UXGA, WUXGA and 4K
- Supports analog and digital video input in all color standards up to 1080p.
- Supports 4K video input via HDMI.
- 6 Power Zoom and Focus Optional Lenses
- Horizontal, Vertical, and Corner Keystone Correction
- Pincushion/Barrel and 6-point Geometric Correction
- Horizontal & Vertical Lens Shift, Edge Blending
-
Displays 4:3, 16:9 and 16:10 aspect ratios. Supports most HDTV resolutions.
- Wired network monitoring and control
- Compatible with Crestron RoomView™ and AMX Device Discovery Technology
- Low maintenance filterless design with sealed optical engine
-
Auto input selection. Built-in Test Patterns.
-
Security bar. Kensington® MicroSaver® security slot. PIN lock.
- Flexible installation: 360° free orientation
- Designed for heavy-duty use
- DICOM
- 3-year projector warranty / 20,000-hour Laser Light Engine warranty
Specifications
| Display Type |
1.0" 3LCD |
||
|---|---|---|---|
| Resolution | WUXGA (1920 x 1200) | ||
| Aspect Ratio | 16:10 | ||
| Brightness | 20,000 center lumens | ||
| Contrast Ratio | 3,000,000:1 | ||
| Projection Light Source | Laser (Blue) + Phosphor | ||
| Light Source Life | 20,000 hours | ||
| Lens |
Optional Lenses available — See Accessories tab. |
||
| Image Diagonal (screen size) |
60–500 in (152.4–1270 cm) |
||
| Image Width |
4.2-35.3 ft (1.3-10.8 m) |
||
| Throw Distance |
2.2-260.0 ft (0.67-79.2 m) |
||
| Lens Shift |
V:±65%; H:±25% (AH-AV21020/21030/24010/23030 lenses) V:±55%; H:±20% (AH-AV22070 lens) V:±50%; H:±20% (AH-AV22060 lens) |
||
| Keystone Correction | Digital: V: ±30 degrees, H: ±30 degrees, Corner Keystone | ||
| Projection Elevation Adjustment (legs) | Up to 1° | ||
| Scanning Frequency (Auto) | H Sync: 15–100 kHz V Sync: 24–85 Hz |
||

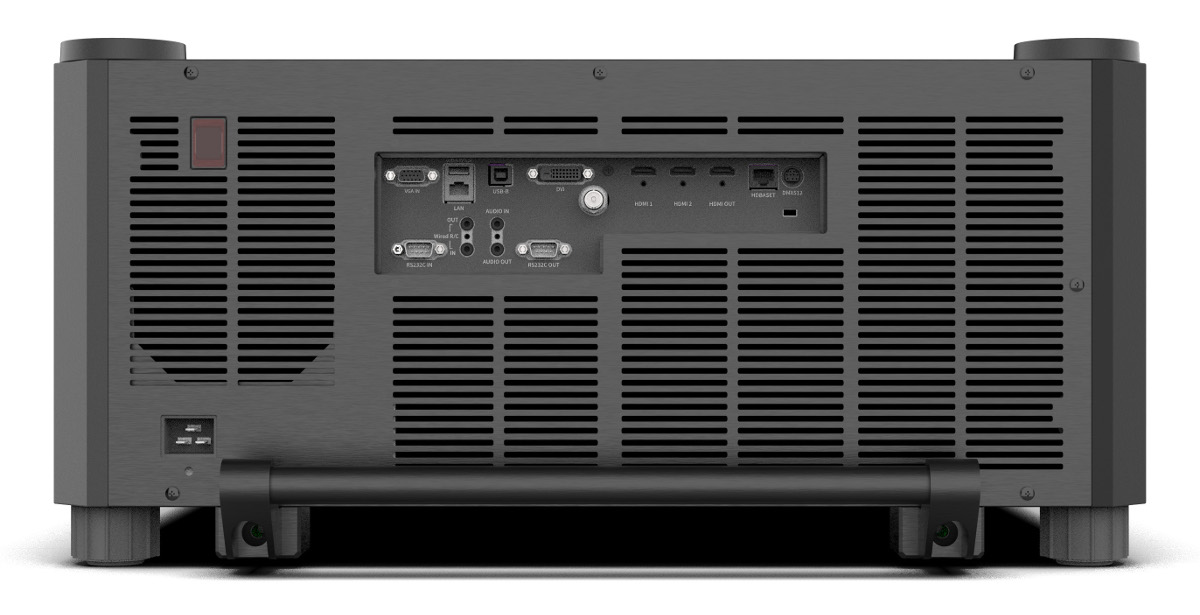

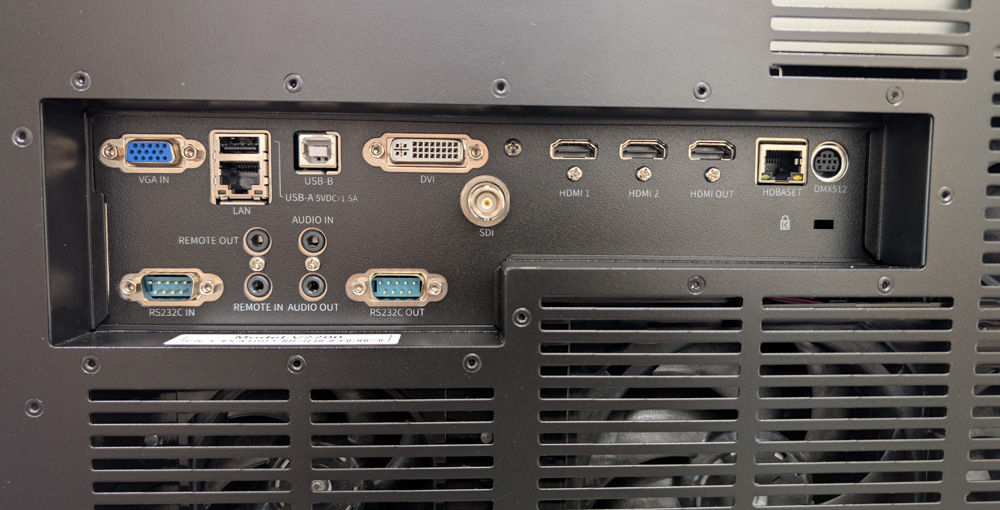

| TERMINALS | 3G-SDI (IN) | BNC x 1 | |
| HDBaseT (IN) | RJ45 x 1 | ||
| HDMI (IN) | HDMI x 2 | ||
| DVI-D (IN) | DVI-D x 1 | ||
| VGA (IN) | D-Sub 15 x 1 | ||
| LAN | RJ45 x 1 | ||
| Audio (IN/OUT) |
3.5 mm MiniStereo x 2 |
||
| HDMI (OUT) | HDMI x 1 | ||
| USB | USB Type A x 1 (Memory Viewer) USB Type B x 1 (USB Display / Firmware) |
||
| RS232 |
Dsub9 x 2 (IN/OUT) |
||
| RS-485 Control |
DMX512 x 1 |
||
| Remote Control |
Wired 3.5 mm MiniStereo x 2 (IN/OUT) |
||
| Fan Noise | 33 dB / 41 dB (ECO / Normal) | ||
| Dimensions (H x W x D) - excluding lens |
12.2 x 25.8 x 26.1 in (310 x 655 x 663 mm) |
||
| Weight | 84.9 lb (38.5 kg) without lens | ||
| Power Requirements | AC 100–240 V AC, 50–60 Hz | ||
| Power Consumption |
0.5 W in Eco Standby, upto 1,500 W |
||
|
Thermal Dissipation |
5,118 BTU |
||
| Included Accessories |
|
||
| Optional Accessories | Ceiling Mount, Ceiling Post and Plate | ||
| Warranty |
3 years / 6,000 hours on projector (whichever occurs first) |
||
Accessories
Optional Lenses
| Model | AH-AV22060 | AH-AV22070 | AH-AV21020 | AH-AV21030 Std Lens |
AH-AV24010 | AH-AV23030 |
 |
|
|
|
|
|
|
| D:W WUXGA |
0.53–0.65:1 | 0.65–0.87:1 | 0.86–1.25:1 | 1.24–2.01:1 | 1.98–3.95:1 | 3.95–7.51:1 |
| f/stop | 1.94–2.20 | 1.84–2.25 | 1.8–2.24 | 1.8–2.24 | 1.84–2.58 | 1.85–2.41 |
Other Accessories
 |
Ceiling mounts |
