Eiki C602
Overview

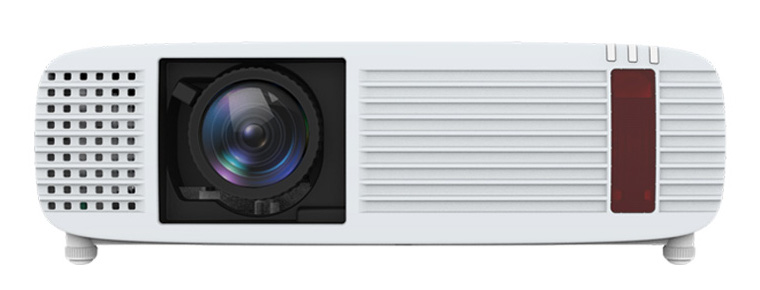

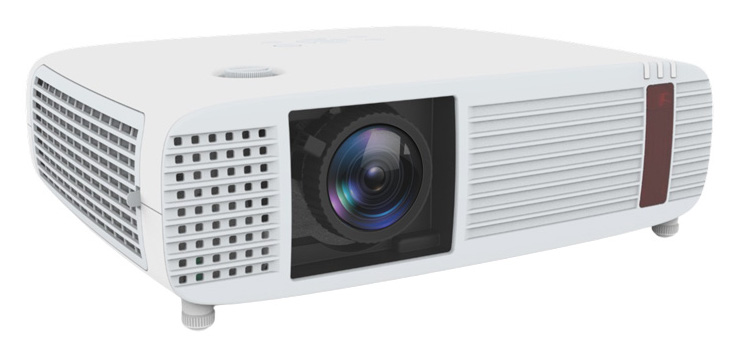

Eiki C602
6,000 Center Lumens WUXGA 3LCD Laser Projector
The Eiki C602 projector is designed with the most advanced technology for durability and ease of use. This projector features a Laser Phosphor light source with 6,000 center lumens of brightness and native WUXGA resolution, built-in multimedia features, a palette of 1.07 billion colors, and matrix liquid crystal display (LCD) technology.
The C602 supports analog and digital video input in all color standards up to 1080p, and 4K video input via HDMI. In addition, it features 5,000,000:1 dynamic contrast ratio as well as vertical manual lens shift, keystone correction, and geometric correction.
This large venue projector is compatible with Crestron RoomView and AMX Device Discovery technology.
Features
- 6,000 center lumens brightness with 80% uniformity and a 5,000,000:1 contrast ratio.
- Native WUXGA resolution. Compatible with inputs up to UXGA, WUXGA and 4K.
- High brightness and contrast with long life 20,000-hour Laser Light Source.
- 10-bit color processing for superior color reproduction.
- Supports analog and digital video input in all color standards up to 1080p.
- Supports 4K (3840x2160 @ 60 Hz) video input via HDMI.
- Convenient mid-range (1.6:1) manual zoom and focus lens.
- Horizontal, Vertical & Corner Keystone Correction.
- Pincushion/Barrel & 6-point Geometric Correction.
- Vertical Manual Lens Shift. Wired network control.
- Displays 4:3, 16:9 and 16:10 aspect ratios. Supports most HDTV resolutions.
- Built-in 16-Watt amplifier and speaker system. Closed Caption decoding.
- Side-accessed air filter for easy maintenance.
- Auto input selection. Built-in Test Patterns.
- Security bar. Kensington® MicroSaver® security slot. PIN lock.
- Compatible with Crestron RoomView™ and AMX Device Discovery Technology
- 3-year projector warranty. 20,000 hour Laser Light Engine warranty.
Specifications
| Imaging System |
0.64" (16 mm) inorganic LCD Panels x 3 |
||
|---|---|---|---|
| Resolution |
WUXGA (1920 x 1200) |
||
| Aspect Ratio |
16:10 |
||
| Brightness | 6,000 Center Lumens (approx. 5400 ANSI Lumens) | ||
| Contrast Ratio |
5,000,000:1 |
||
| Projection Light Source |
Laser (Blue) + Phosphor |
||
| Estimated Light Source Life |
20,000 hours |
||
| Image Diagonal |
30–300 in (76.2–762 cm) |
||
|
LENS |
F Value / Focal Length |
f: 1.58–2.02 |
|
| Zoom Ratio |
Manual 1.6x |
||
| Focus |
Manual |
||
| Throw Ratio |
1.08–1.76:1 |
||
| Throw Distance | 2.3–37.4 ft (0.70–11.4 m) | ||
| Lens Shift |
V: +45% (Manual) |
||
| Keystone Correction |
Digital: V: ±30°, H: ±30°, Corner Keystone |
||
| Projector Elevation Adjustment (legs) |
up to 3.5° |
||
| Scanning Frequency |
Auto: H Sync. 15–135 KHz, V Sync. 24–85 Hz |
||
| Pixel Clock |
up to 160 MHz |
||
| TERMINALS | |||
| HDMI In |
HDMI x 2 |
||
| HDMI Out |
HDMI x 1 |
||
| VGA In |
Dsub15 x 1 |
||
| VGA Out |
Dsub15 x 1 |
||
| USB |
USB Type A x 1 (Memory Viewer) |
||
| USB |
USB Type B x 2 (Firmware) |
||
| Audio In |
3.5 mm MiniStereo x 1 |
||
| Audio Out |
3.5 mm MiniStereo x 1 |
||
| RS-232 | Dsub9 x 1 | ||
| LAN |
RJ45 x 1 |
||
| Built-in Speaker |
Mono 16 Watts |
||
| Fan Noise (Eco/Normal) |
29 dB / 39 dB |
||
| Dimensions (H x W x D) |
5.0" x 15.4" x 11.6" (12.8 x 39.0 x 29.4 cm) excluding legs |
||
| Weight |
11.0 lb (5.0 kg) |
||
|
Operating Temperature |
41–104°F (5–40°C) |
||
| Power Requirements |
100–240 V AC, 50/60 Hz |
||
| Power Consumption |
0.5 W in Eco Standby mode, up to 330 W |
||
| Thermal Dissipation | 1,126 BTU | ||
| Included Accessories |
|
||
| Optional Accessories |
|
||
Warranty
Projector: 3-year/6000-hour limited warranty (whichever occurs first).
Laser Light Engine: 20,000 hours use
