Zhen Optics LU6500WU

Laser LCD Projector, WUXGA, 6500 Lumens, D:W 1.08-1.76:1, 3-Year Warranty
Item #0601-5891 Model #VL605U+
$2,659.00
Price

Overview

Zhen Optics LU6500WU

6,500 Lumens WUXGA 3LCD Large Venue Laser Projector

The Zhen Optics LU6500WU features a Laser Phosphor light source with 6,500 lumens of brightness and native WUXGA resolution. This projector supports analog and digital video input in all color standards up to 1080p, and 4K video input via HDMI.

In addition, it features 5,000,000:1 dynamic contrast ratio as well as horizontal and vertical manual lens shift, keystone correction, and geometric correction.

The LU6500WU is compatible with Crestron RoomView and AMX Device Discovery technology.

Recommended installations:
  • Corporate/business
  • Higher education
  • House of worship
  • Golf Simulator

Features

  • 6,500 lumens bright with 80% uniformity and a 5,000,000:1 contrast ratio
  • Native WUXGA resolution. Compatible with inputs up to UXGA, WUXGA and 4K
  • High brightness and contrast with long life 20,000-hour laser + phosphor light source
  • 10-bit color processing for superior color reproduction
  • Supports analog and digital video input in all color standards up to 1080p
  • Supports 4K video input via HDMI
  • Convenient mid-range (1.6:1) manual zoom and focus lens
  • Horizontal, Vertical & Corner Keystone Correction
  • Pincushion/Barrel & 6 point Geometric Correction
  • Horizontal & Vertical Manual Lens Shift.
  • Wired network control
  • Displays 4:3, 16:9 and 16:10 aspect ratios. Supports most HDTV resolutions
  • Built-in 16-Watt amplifier and speaker sound system. Closed Caption decoding (NTSC)
  • Side-accessed air filter for ease of maintenance
  • Auto input selection.
    Built-in Test Patterns
  • Security bar, Kensington® MicroSaver® security slot, and PIN lock
  • Compatible with Crestron™ RoomView and AMX Device Discovery Technology

Specifications

Display Type

0.64" 3LCD
Resolution

WUXGA (1920 x 1200)
Aspect Ratio

16:10 (native), 16:9, 4:3
Brightness 6,500 lumens
Contrast Ratio

5,000,000:1
Projection Light Source

Laser (Blue) + Phosphor
Light Source Life

20,000 hours
Image Diagonal

30–300"

LENS

 F Value / Focal Length

f: 1.58–2.02
FL: 15.3–24.6mm
Zoom Ratio

Manual x1.6
Throw Ratio

1.08–1.76:1
Lens Shift

V: +60% H: ±29% (Manual)
Keystone Correction

V: ±30° H: ±30°, Corner Keystone
Projection Elevation Adjustment

up to 3.5°
Scanning Frequency

H Sync. 15–100 KHz, V Sync. 24–85 Hz
Dot Clock

up to 300 MHz
Input Signals - Computer

4K (3840 x 2160) - VGA (640 x 480)
Input Signals - Video

1080 i/p, 720 p, 576 i/p, 480 i/p

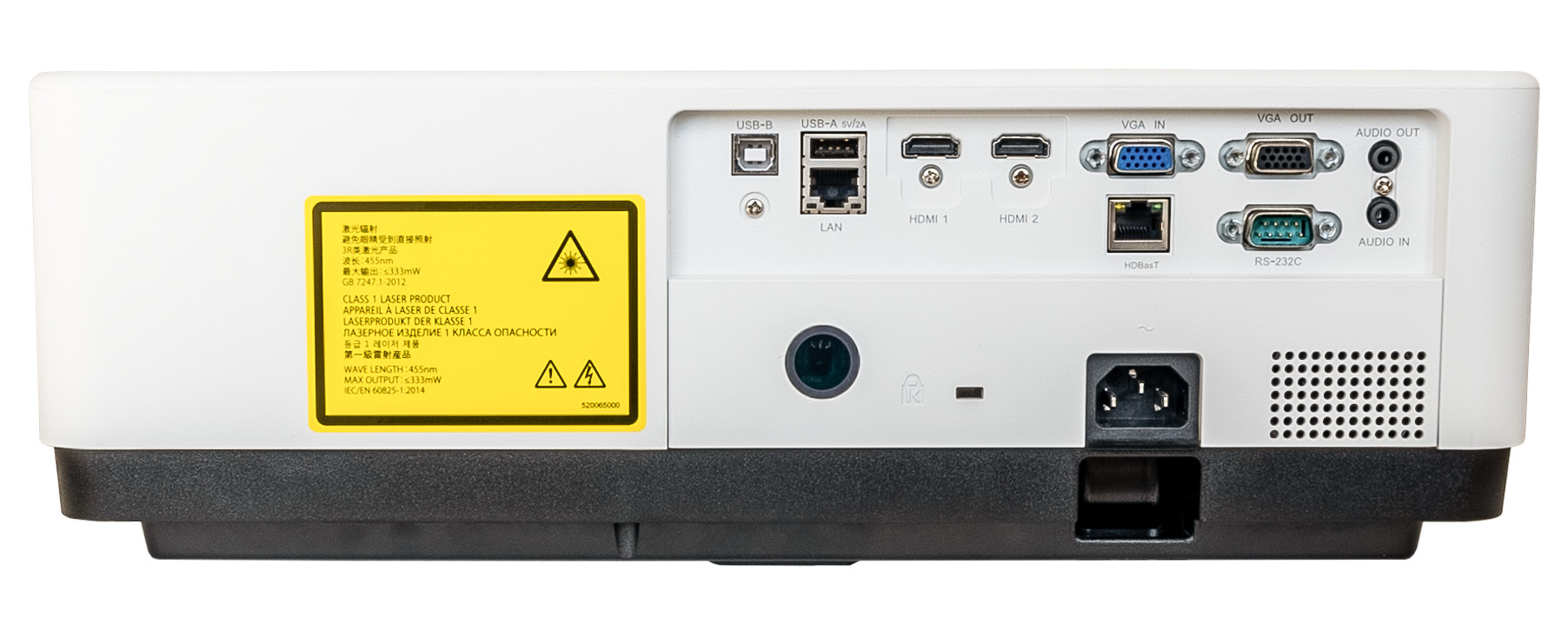

TERMINALS
HDBaseT In

RJ45 x 1
HDMI In

HDMI x 2
VGA In

Dsub15 x 1
VGA Out

Dsub15 x 1
USB

USB Type A x 1 (Memory Viewer)
USB

USB Type B x 2 (Firmware)
Audio In

3.5 mm MiniStereo x 1
Audio Out

3.5 mm MiniStereo x 1
Built-in Speaker

Mono 16 Watts
Fan Noise (Eco/Normal)

27.5 dB / 37.5 dB
Dimensions (H x W x D)

5.3 x 15.9 x 14.7 in (13.5 x 40.5 x 37.3 cm)
Weight

17.0 lb (7.7 kg)
Power Requirements

100–240 V AC, 50/60 Hz
Power Consumption

0.5 W in Eco Standby mode, up to 360 W
Thermal Dissipation

1,228 BTU
Standard Accessories
  • Detachable AC Power Cord
  • VGA Cable
  • Quick Start Guide
  • Remote Control (with 2x AAA batteries)

Warranty

Projector: 3-year/6000-hour limited warranty (whichever occurs first).

Laser Light Engine: 20,000 hours use
