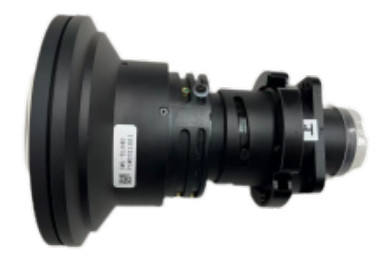

Zhen Optics LNS040
0.4:1, Fixed Lens, Manual Focus
Item #0601-5894 Model #LNS040
Specifications
Zhen Optics LNS040
Ultra-Short Throw Fixed Lens
Please check the Compatibility tab to make sure that this lens is compatible with your projector.
| Lens Type |
Ultra-Short Throw Fixed Lens |
| Throw Ratio (16:10) | 0.4:1 |
| Transmission Rate | 100% |
| Zoom Ratio | 1x |
| Focus/Zoom | Manual |
| F# (Wide-Tele) | 2.1 |
| Focal Length | 11 mm |
| Screen Size | 60"~300" @ Wide |
| Protrusion from Flange | 37 mm |
| Performance Guaranteed Range | ≈150" |
| Lens Shift | Vertical: ±20% (Horizontal Center) Horizontal: ±5% (Vertical Center) |
| Material | Optical Glass + Resin |
| Protrusion from Body | 43 mm |
| Dimensions | TBD |
| Net Weight | 2.2 lb (1.0 kg) |
Same Series Lenses
| Model | LNS040 | LNS058 | LNS065 | LNS075 | LNS098 | LNS120 | LNS132 |
 |
 |
 |
 |
 |
 |
 |
|
| D:W WUXGA |
0.4:1 |
0.58:1 |
0.65:1 |
0.75:1 |
0.98–1.56:1 |
1.2–1.56:1 |
1.32–2.16:1 |
| f/stop | 2.1 | 2.1 | 2.2 | 2.2 | 1.5–2.0 | 1.8–2.0 | 2.3 |
Compatibility
To check whether this item is compatible with your equipment, use the form below.
