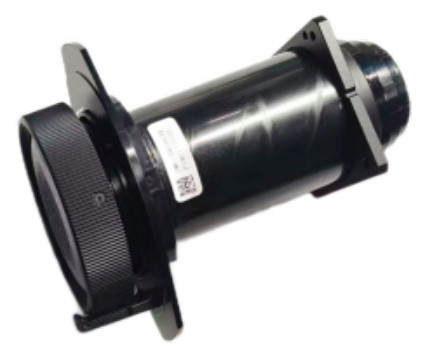

Zhen Optics LNS120
1.2-1.56:1 Zoom Lens, Manual Zoom/Focus
Item #0601-5899 Model #LNS120
Specifications
Zhen Optics LNS120
Short Throw Zoom Lens
Please check the Compatibility tab to make sure that this lens is compatible with your projector.
| Lens Type | Short Throw Zoom Lens |
| Throw Ratio (16:10) | 1.2-1.56:1 |
| Transmission Rate | 100% |
| Zoom Ratio | 1.3x |
| Focus/Zoom | Manual |
| F# (Wide-Tele) | 1.8–2.0 |
| Focal Length | 21.3–27.7 mm |
| Screen Size | 60"~300" @ Wide |
| Protrusion from Flange | 65 mm |
| Performance Guaranteed Range | ≈150" |
| Lens Shift | Vertical: ±40% (Horizontal Center) Horizontal: ±20% (Vertical Center) |
| Material | Optical Glass + Resin |
| Protrusion from Body | 10.5 mm |
| Dimensions | 5.4" x 3.5" (138.1 x 90 mm) |
| Net Weight | 2.12 lb (0.96 kg) |
Same Series Lenses
| Model | LNS040 | LNS058 | LNS065 | LNS075 | LNS098 | LNS120 | LNS132 |
 |
 |
 |
 |
 |
 |
 |
|
| D:W WUXGA |
0.4:1 |
0.58:1 |
0.65:1 |
0.75:1 |
0.98–1.56:1 |
1.2–1.56:1 |
1.32–2.16:1 |
| f/stop | 2.1 | 2.1 | 2.2 | 2.2 | 1.5–2.0 | 1.8–2.0 | 2.3 |
Compatibility
To check whether this item is compatible with your equipment, use the form below.
