BenQ LU950

Laser DLP Projector, 1920x1200 WUXGA, 5000 Lumens, D:W 1.36:1-2.18:1, 3-year warranty
Item #0601-6833 Model #LU950

Overview

LU950

WUXGA Installation Laser Projector with 5000 Lumens

Enduring BlueCore Laser Perfection and Installation Flexibility for Corporate Settings

Generating intense BlueCore laser-powered brightness for 20,000 hours of maintenance-free operation, BenQ LU950 harnesses enduring DLP picture quality and razor-sharp WUXGA resolution to deliver impactful visual communications.

With HDMI out for multiple screen applications and versatile installation flexibility of extended horizontal and vertical lens shift, big zoom, 360° projection, digital image resizing and memory, LU950 expertly supports demanding corporate requirements.

The world’s No.1 DLP brand, BenQ expands its full line of innovative BlueCore laser projectors with LU950, for fixed lens installation, enabling powerful visual communication in corporate meetings and public venues.

BlueCore Laser Technology

Superior Bright

Precision-Aligned High-Output Laser Source  Zero-deviation alignment of BlueCore laser diodes boosts luminous flux into the light tunnel, improving light efficacy to 5,000 lumens.

Superior Performance

Secondary Yellow-Infused Color Wheel — Dual synchronized BlueCore color wheels utilize an additive yellow segment, stimulating precise RGBY spectra for optimal chromatic performance.

Superior Durability

Hermetically Sealed DLP Chip — Comprising over two millions micro-mirrors that reflect pure light through the color wheel, the DLP chip is hermetically sealed to resist heat for over 100,000 hours without degradation.

Features

Long-Lasting Supreme Image Quality

  • Impressive WUXGA (1920 x 1200) native resolution that far exceeds Full HD 1080p, offering greater details and stunning image clarity when projecting high resolution images.
  • Highly durable DLP chip can last over 100,000 hours without degradation ensuring true-to-life colors and pristinely legible text.
  • 5000 lumens high brightness allows users to deliver presentations in comfortably lit medium-sized conference rooms.
  • Ultra-high 3,000,000:1 contrast ratio ensures true deep blacks, vivid rich colors and fine subtle details.
  • Perfect digital signal via HDMI output allows multi-projector/multi-screen setups with no signal degradation.
  • DICOM Simulation Mode is ideal for viewing grayscale medical images, such as X-rays.

Excellent Installation Flexibility

  • 360o Rotation Projection allows projection onto ceilings, walls, floors, or angled signage.
  • 1.6X big zoom offers a wide range of throw distances to significantly increase installation flexibility.
  • Horizontal and vertical lens shift can move projected images up and down by 60% of screen height, or left and right by 23% of screen width.
  • Digital image shrinking and shift lets installers shrink the image to 75% of the original size (as well as shift it) via OSD menu in case the image is not precisely aligned.
  • Image memory function helps installers save five sets of image settings that can be individually recalled, reducing installation time or even eliminating the need for re-installation or adjustment when the projector is in the same environment with different image source formats or aspect ratios.
  • Wired Remote Control offers projector installers and IT managers extra setup convenience.
  • Remote control IDs can be assigned to each projector, avoiding signal interference and unintentional changes when installing multiple projectors in a venue.

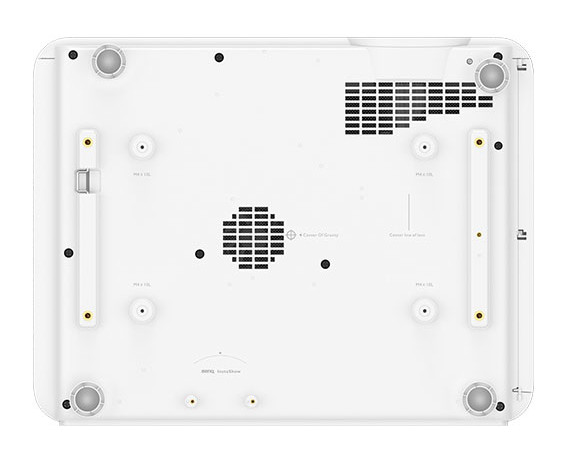

  • Bottom surface grips and center-of-gravity mark facilitate safe transport and installation.

Enduring Reliability

  • Sealed laser modules and enclosed light engines protect the DMD chip, color wheel sensor, laser bank, and other optical components. (Given international dust-proof rating of IP5X.)
  • Anti-dust buildup feature in the color wheel sensor prolongs optimal performance.
  • BlueCore laser light source is guaranteed for 20,000 hours of superior image quality and performance, exceeding that of 10 lamp replacements over the life of the projector.
  • Integrated air pressure sensor alerts users to enable efficient cooling and properly maintain operating temperatures in high altitude environments with thinner atmospheres.

Highly Integrated Network Control and Management System Compatibility

  • Compatible with leading projector control systems, including Extron, Crestron, AMX and PJ-Link for network control via LAN.
  • RS-232 support for reliable long-distance installations up to 15 meters, when LAN infrastructure doesn't exist.
  • Multiple Display Administrator (MDA) software provides powerful centralized multi-projector management.
  • HDBaseT connectivity combines video, audio and device control signals from multiple sources (including PCs, laptops, document cameras, and Blu-rays) onto a single CAT5 cable, ensuring seamless transmissions up to 100 meters.
  • One button to start Full HD wireless presentations with InstaShowTM WDC10 plug-and-play device (available separately).

Specifications

Display

Projection System‎ DLP Single 0.47" WUXGA
DMD type DC3 DMD Chip
Native Resolution‎ 1920 x 1200 pixels
Brightness 5000 ANSI Lumens
Contrast Ratio‎* 3,000,000:1
Display Color‎ 30 Bits (1.07 billion colors)
Aspect Ratio Native 16:10 (5 aspect ratio selectable)
Light Source Laser
Light Source Life‎** 20,000 hours

Optical

Throw Ratio 1.36 ~ 2.18
Zoom Ratio 1.6x
Lens Control Manual Zoom and Focus
Lens Shift Manual lens shift, V: ±60 %; H: ±23 %
Keystone Correction 2D keystone, V: ±30 degree; H: ±30 degree
Projection Size 30" ~ 300"

Audio

Built-in Speaker 10 W

Special Features

Security (anti-theft) Security Bar
Features Digital Shrink and Shift, Image Memory, Projector/ Remote Control ID Setting, Auto High Altitude Mode, HDBaseT, LAN Control, 360° Projection, Dust-Proof Filter

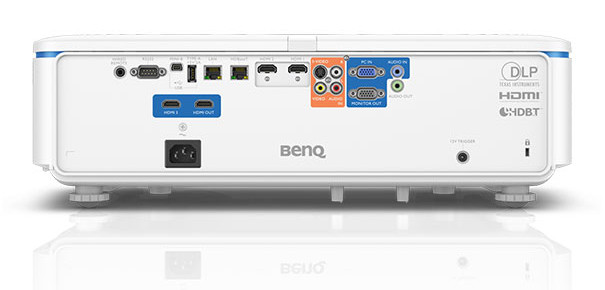

Connectivity

I/O Port Wired Remote In x1
RS232 In (D-sub 9pin, male) x1
USB Mini-B (Service) x1
USB TypeA (5V/2A power) x1
LAN Port (RJ45 for Network control) x1
HDBaseT x1
HDMI In x3
HDMI Out x1
S-Video in x1
Composite Video (RCA) x1
RCA Audio in- L/R x1
PC In x1
Monitor out (D-sub 15pin,Female) x1
Audio in (mini jack) x1
Audio out (mini jack) x1
12V Trigger x1
IR Receiver (Front) x1
IR Receiver (Rear) x1

Compatibility

Resolution Support VGA (640 x 480) to WUXGA_RB (1920 x 1200)
*RB-Reduced Blanking"
Horizontal Frequency 15 ~ 102 KHz
Vertical Scan Rate 24  120 Hz
HDTV Compatibility 480i, 480p, 576i, 567p, 720p, 1080i, 1080p
Video Compatibility NTSC, PAL, SECAM‎

Power

Power Consumption (Max/Normal/Eco) Max 530 W/ Normal 475 W/ Eco 365 W
Standby Power Consumption Normal < 0.5 W, Network < 2 W
Power Supply 100 ~ 240 V AC

Dimension and Weight

Product Dimensions (WxHxD) 490 x 159 x 380 mm (19.3" x 6.3" x 15.0")
Product Weight 9.4 kg (20.7 lbs)

Operation Condition

Noise Level (Normal/Eco) 37 /35 dBA
Operating Temperature 0o ~ 40o C (32o ~ 104o F )

Accessories

Accessories (Standard) Power cord
Remote control (RCA011)
Lens cover
AAA Battery x2
Installation Guide/Regulatory Statement (Combined)
Warranty card (by sku)
Anti-dust filter
Accessories (Optional) Ceiling mount (CMG3)
3D glasses
InstaShowTM (WDC10)

OSD

On Screen Display Language Arabic/ Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian /Persian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/ Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese/ Vietnam (30 languages) ‎

Warranty

3-Year Warranty


Notes:

* The contrast ratio is measured by the Full On/Full Off standard.

** Light source life results will vary depending on environmental conditions and usage. Actual product's features and specifications are subject to change without notice.
