BenQ PT12

Touch Module Touchscreen Receiver
Item #0601-6853 Model #5JJ8L2613E
$300.00
List price

Overview

BenQ PT12 (5J.J8L26.13E)

PointWrite™ Finger Touch Module for PW02 & PW01U, PW20U

Foster active learning, inspiration, and collaboration through interactive PointWrite touch technology. BenQ’s education projectors are equipped with PointWrite™ technology which transforms any surface into an interactive whiteboard. This technology utilizes an innovative infrared system to detect transmitter light emitted from a PointWrite camera and touch module that enables the camera to detect the finger or object movements. Teachers can invite students up to the board to make notes, answer questions or collaborate on digital images, sparking creativity, imagination and lots of fun.

  • PointWrite™ kit coupled with QWrite™ software to seamlessly integrate with BenQ projectors for a truly collaborative learning environment
  • Compatible with Windows/Mac OSX operating systems

Use with select BenQ short throw projector models. Please check the Compatibility tab to determine if this accessory will work with your projector.

PT12 attached to projector in classroom

Package includes:

  • PointWrite Touch Module
  • Installation CD (contains PointWrite touch driver, QWrite software and user manual)
  • Quick Start Guide

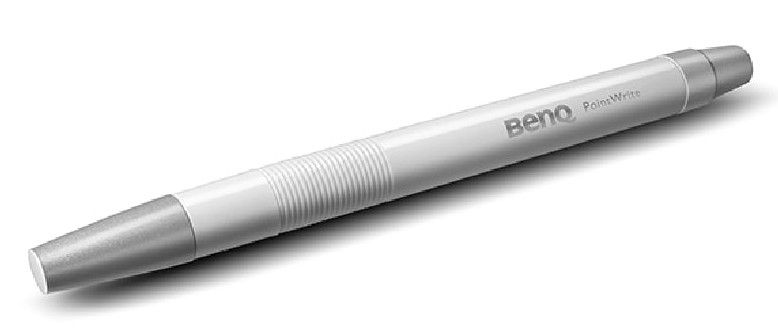

  • Pen with 2 extra pen nibs
  • Mini USB Cable
  • Alignment masks (for laser curtain alignment)
  • Wrist strip x 2
  • Tape x 2
  • Hex key

Features

Interactivity of PointWrite™Touch Module:

  • Use with PointWrite camera module to enable finger touch capability1
  • Supports up to 4 fingers writing simultaneously
  • Gesture support in Windows 8 and above
  • Dual screen touch for ultra-wide working space
  • Effortless setup with only one-second auto calibration2

 Using PT12 Touch Modules with 2 projectors and 2 screens

Dual Screen with Multiple Touch Capabilities:

This feature allows teachers to create an immersive learning experience by seamlessly connecting two screens. They can also use the PointWrite infrared pen accessory or pair the system with the PointWrite Touch (PT12) for a fully scalable and forward-thinking classroom. The multi-touch capabilities, which can support Windows 8 or above, as well as future applications, are enabled by the QWrite software to encourage students to collaborate and generate ideas together using one big screen. Students will now be able to watch a video and take notes simultaneously using easy and intuitive technology.


Notes:

Touch module is an optional unit for PointWrite interactive cameras PW02, PW01U and PW20U to enable finger touch function.

Calibration speed may vary depending on computer system.

Specifications

Touch Module

Model Name PT12

Operating Voltage

4.7 ~ 5.2 V

Power Consumption

Max 250 mA

USB Type (Power)

Mini USB B type

Power Source

Power via USB Type A

Wavelength

850 nm ± 10 nm

Fan Angle

Max : 180° (1 laser beam)

Rolling Control Range

Max 4°

Pitch Control Range

Max 3.5°

Safety

Class 1

Dimensions

7.04" x 2.29" x 1.58" (178.85 x 58.09 x 40.10 mm)

Weight

5.4 oz (152 g) with cover

General Function

Camera Type

PointWrite series camera module

Multi Pen Supported

Up to 4 touch points (pen/finger)

Response Time

0.016 sec

Refresh Rate

60 frames/sec

Calibration

Auto/Manual 16 points

Dual screen Calibration

Yes

USB Cable Distance

Max 49.2 ft (15 m) — 16.4 ft (5 m) USB cable + repeater
