BenQ PRJ PW02
Overview
BenQ PRJ PW02 (5J.J9A26.12E)

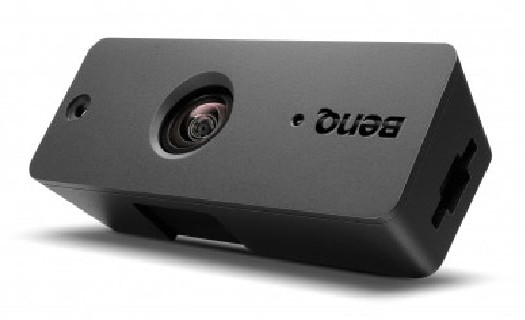

PointWrite™ Sensor Module and Pen Package
Enjoy inspiration and collaboration with BenQ interactive touch technology.
- PointWrite™ kit coupled with QWrite™ software to seamlessly integrate with BenQ projectors for a truly collaborative learning environment
- Compatible with Windows/Mac OSX operating systems
Use with select BenQ short throw projector models. Please check the Compatibility tab to determine if this accessory will work with your projector.

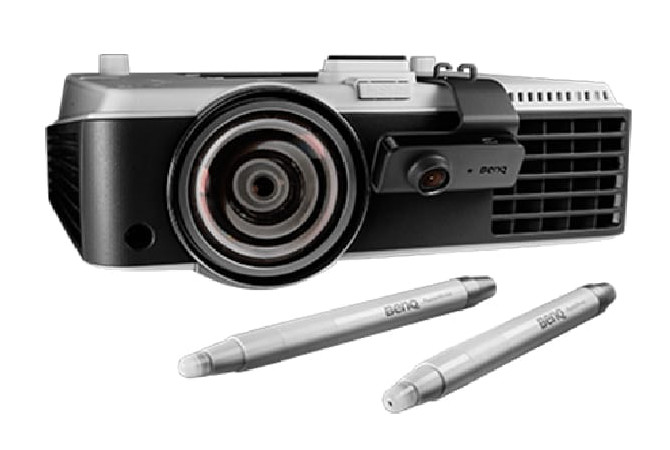

Packages includes:
- PointWrite sensor module
- Two PointWrite pens
- 15 ft mini USB cable
- Two sets of AAA batteries
- Five extra pen tips
- Two M3L8 screws
- Wrist strip
- Installation and QWrite CD
- Quick Start Guide
Features
Dual Screen with Multiple Touch Capabilities:
This feature allows teachers to create an immersive learning experience by seamlessly connecting two screens. They can also use the PointWrite infrared pen accessory or pair the system with the optional PointWrite Touch (PT12) for a fully scalable and forward-thinking classroom. The multi-touch capabilities, which can support Windows 8 or above, as well as future applications, are enabled by the QWrite software to encourage students to collaborate and generate ideas together using one big screen. Students will now be able to watch a video and take notes simultaneously using easy and intuitive technology.
User-Friendly Auto-Calibration and Configuration:
The first time PointWrite™ is plugged into a computer’s USB port, it instantly auto calibrates and the interactive teaching session is ready to begin. The interactive sensor guarantees reliable auto-calibration in any ambient lighting for hassle-free setup. Connectivity settings are saved automatically, and PointWrite™ is always ready with no need for manual configuration or complicated training.
Easy 1-2-3 PointWrite™ Setup:
- Insert the camera with 60 fps infrared sensor into the projector.
- Setup and calibration executes automatically, immediately allowing a smooth writing experience with ultra-fast 16 ms response time.
- Turn any surface into an interactive whiteboard with an infrared PointWrite™ Pen or PointWrite™ Touch Module.
Windows Gesture Support:
PointWrite™ projectors support intuitive Windows gestures such as zooming in and out or scrolling while browsing webpages, pictures or Google Maps. All multi-touch commands and gestures are supported for Windows 8 or above and future applications.
Specifications
PointWrite Module |
|
| Model Name | PW02 |
| Refresh Rate | 60 Hz |
| Response Time | 0.016 sec |
| Auto Calibration | Yes |
| Calibration Accuracy* | Max ±2 Pixel |
| Multi-User | 4 pen simultaneously |
| Multiple Operation | 2 Units |
| PC Connection | Mini USB |
| Power Source | PC USB Power |
| Max USB Cable Length | 49.2 ft (15 m) — 16.4 ft (5 m) USB cable + Repeater |
| OS Supported | Windows: WinXP, Vista, 7, 8 Mac: Snow Leopard or later |
| Storage Temperature | -20°C ~ 60°C |
| Operating Temperature | 5°C ~ 40°C |
| Dimensions | 2.8" x 1.1" x 0.61" (71 x 29 x 15.5 mm) |
| Weight | 1.1 oz (32 g) |
PointWrite Pen |
|
| Power | AAA Battery x 2 |
| Length | 6.9" (176 mm) |
| Diameter | 0.6" (15 mm) |
| Weight | 1.2 oz (35 g) |
| Color | White |
*Your environment will impact the accuracy of auto calibration.
Downloads
Compatibility
To check whether this item is compatible with your equipment, use the form below.
