Optoma ProScene ZK1120

11,000-Lumen 4K UHD+ High Brightness ProAV Laser Projector

The Optoma ZK1120 is powered by a new generation of Texas Instruments (TI) HEP DMD chipsets that deliver bright 4K UHD+ (3840 x 2400) laser projection for visually striking lifelike images with superior color rendition and exceptional contrast.

Part of the DuraCore laser lineup, it combines a long-life light source, up to an astonishing 30,000 hours, and an independent IP-rated dust certification for ultimate peace of mind.

The ZK1120 features built-in edge-blending and warping, as well as 4K HDR compatibility. Integrated Art-Net support enables seamless synchronization with stage lighting and visual effect for live events.

Designed for even the most complex professional installations, the compact and lightweight ZK1120 offers ten interchangeable lens options, including a new zero offset ultra-short throw lens for unmatched application flexibility.

Compatible with the cloud-based Optoma Management Suite (OMS), the ZK1120 can be monitored and diagnosed, as well as receive commands from a centralized remote location.

Key Features:

• 11,000 ISO (9,300 ANSI) lumens of high-brightness projection
• DuraCore laser light source, up to 30,000 hours lifetime
• 4K UHD+ WQUXGA (3840 x 2400) resolution for crisp, detailed images
• Compact and lightweight at 37 lb (without lens) for easy installation
• ArtNet support for seamless stage lighting synchronization
• Remote device management via Optoma Management Suite (OMS)
• Full range of interchangeable lenses for flexible use of installation space (lenses sold separately)

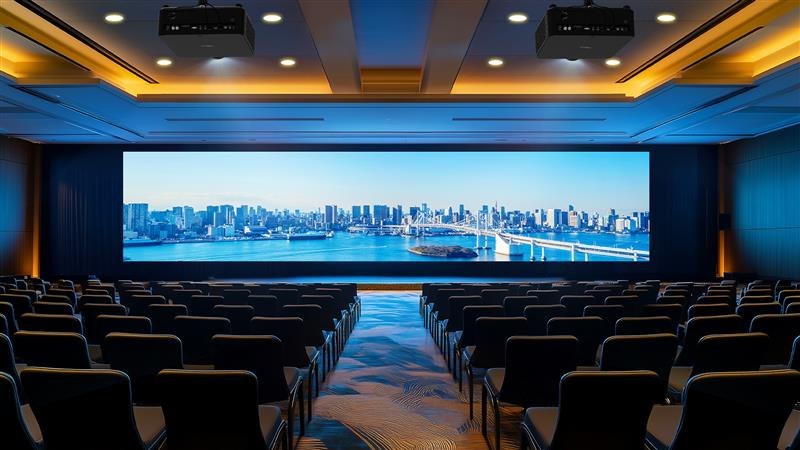

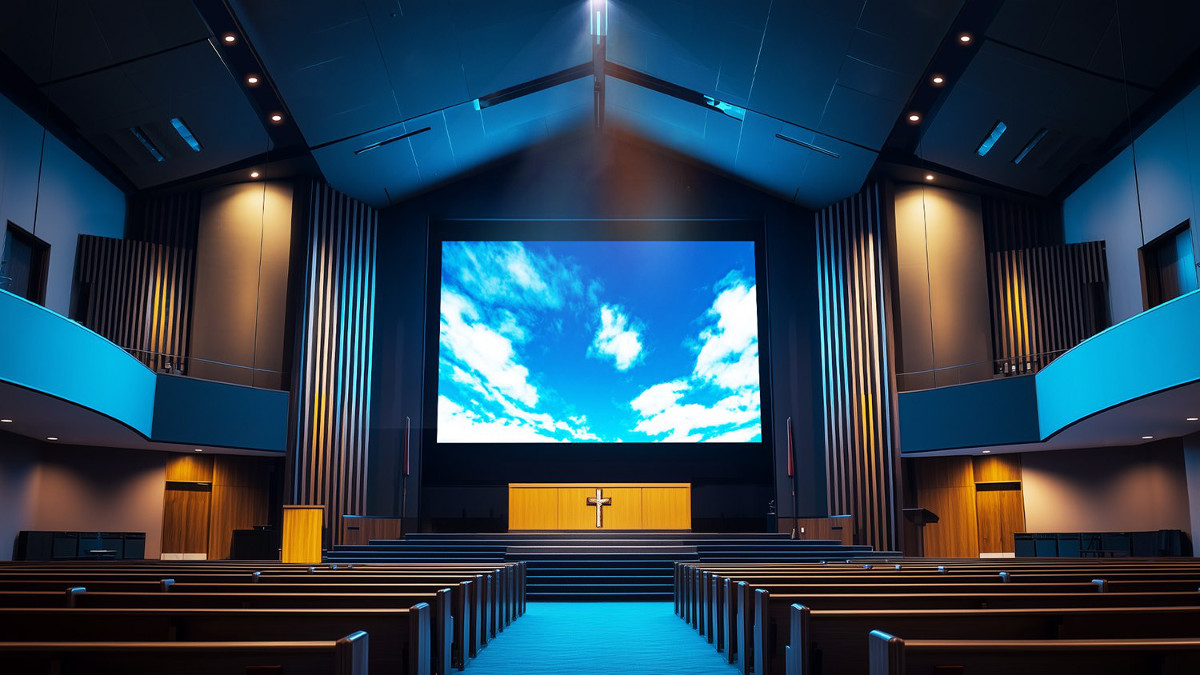

• Venue versatility: Ideal for digital signage, rental & staging, corporate and immersive applications

• 4K UHD+ resolution: With 4K UHD+ WQUXGA (3840 x 2400) resolution and 9.22 million pixels, this projector delivers ultra-sharp, crystal-clear projection — ideal for immersive backgrounds in any large venue installation.

• Advanced design and superior imaging: Optoma’s advanced imaging technology, powered by the latest TI HEP DLP chip with a larger tilt angle and micro-mirror pitch, boosts image brightness, enhances contrast, improves efficiency, and delivers realistic colors and sharper images.

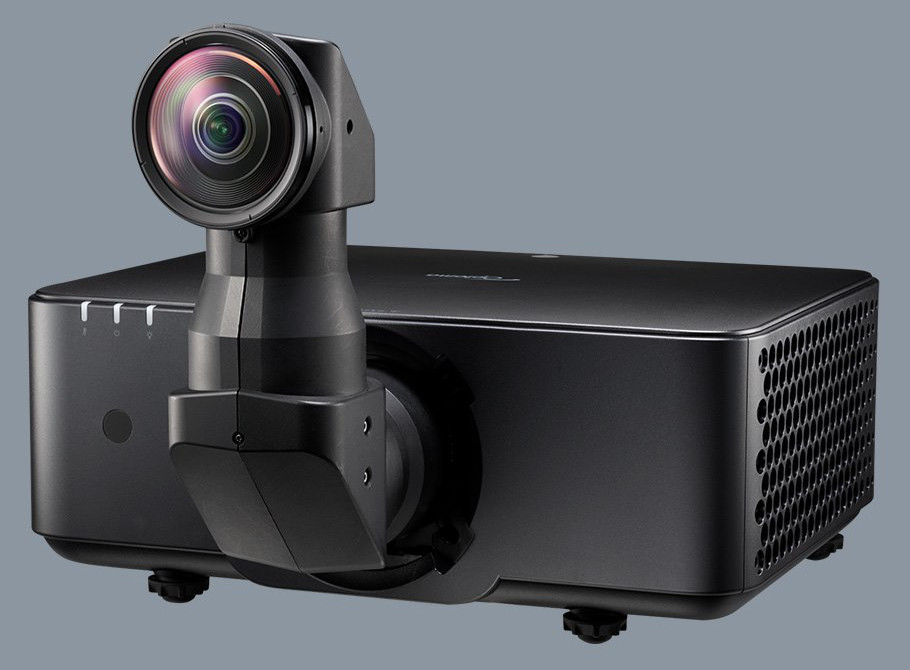

• Seamless, concealed projection: Optoma’s front-facing snorkel UST lens enables zero offset projection, even in the most confined spaces, allowing the projector to be fully concealed within the ceiling or furniture. This design ensures seamless, hidden projection and delivers an exceptionally immersive visual experience with minimal visible equipment. The result is a clean, unobtrusive aesthetic that maximizes viewer engagement. (UST lens sold separately)

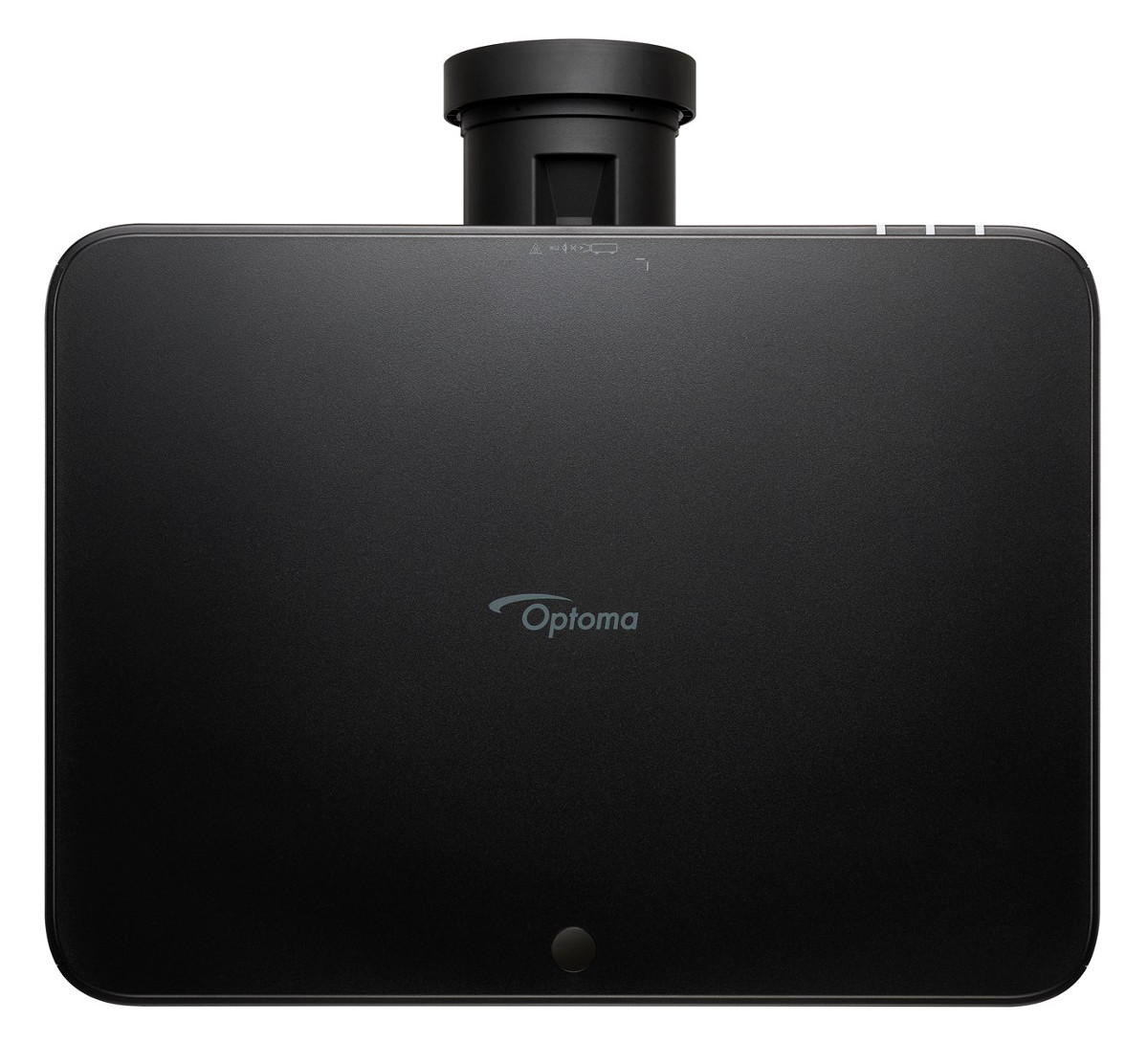

• Sleek, lightweight design for easy installation: Weighing just 37 lb (16.8 kg) without lens, this sleek, lightweight projector enables easy and flexible installation, even in confined or overhead spaces. Installers benefit from quicker setup with less effort and minimal support requirements, while the compact size promotes eco-friendly packaging and efficient logistics.

• Live event projector synchronization: With integrated Art-Net support, the ZK1120 projector enables seamless synchronization with stage lighting and visual effects for live events. Art-Net allows direct control from lighting consoles via Ethernet (RJ45), ensuring precise coordination between lighting and projections for impactful productions.

• Stay connected anytime, anywhere: Optoma Management Suite (OMS) is a versatile remote management software, available in both Cloud and LAN versions, designed to simplify projector management and installation. OMS provides scalable, secure real-time monitoring, control, diagnostics, fast cloning of settings, manual lens calibration, and instant alerts for smooth operation. With OMS Cloud’s remote web control, users can conveniently access the projector’s web control page from anywhere for enhanced flexibility.

• Intelligent image blending and warping: Optoma Visual Suite simplifies the creation of immersive visual experiences by offering a comprehensive range of adjustment functions, including blending, warping, masking, brightness and color settings, lens control, and more. It is particularly well-suited for making image adjustments to projectors installed in hard-to-reach locations.

• Immersive meetings with Microsoft Teams Front Row: Delivers crystal-clear images even in lights-on environments—across standard 16:10, 16:9, ultra-wide 21:9, or LBX aspect ratios. Supports Microsoft Teams Front Row for engaging, collaborative meeting experiences.

• Versatility for any venue: Wide selection of zero-offset lenses, including the front-facing snorkel UST lens. Achieve seamless blending in tight spaces while keeping projectors discreetly hidden! (Lenses are sold separately. See Accessories tab.)

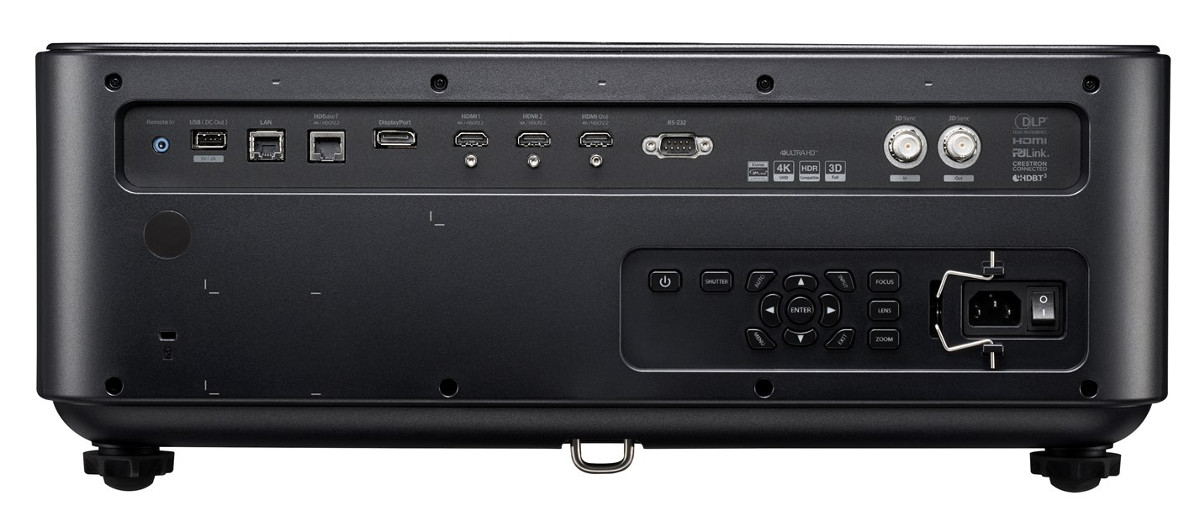

• Certified network connectivity: Supports Art-Net DMX, PJLink™, Crestron Connected® V2, Crestron® XiO Cloud, HDBaseT 3.0, AMX device discovery, and Extron IP Link® Pro.

• Committed to sustainability: The ZK1120 is brighter, yet 49% lighter¹ and 41% more compact² than the previous gen model (ZK1050) reducing shipping costs and minimizing environmental impact. Its chassis is crafted from 50% post-consumer recycled materials, and the packaging utilizes 98% recycled material³, offering a truly eco-friendly solution.

¹ Measured without lens
² Measured without lens and elevated feet
³ Measured by weight

Warranty

• 3-year parts and labor limited warranty on the projector
• 5-year or 12,000-hour light source warranty (whichever comes first)

What's in the Box:

• ZK1120 projector
• Quick Start Guide

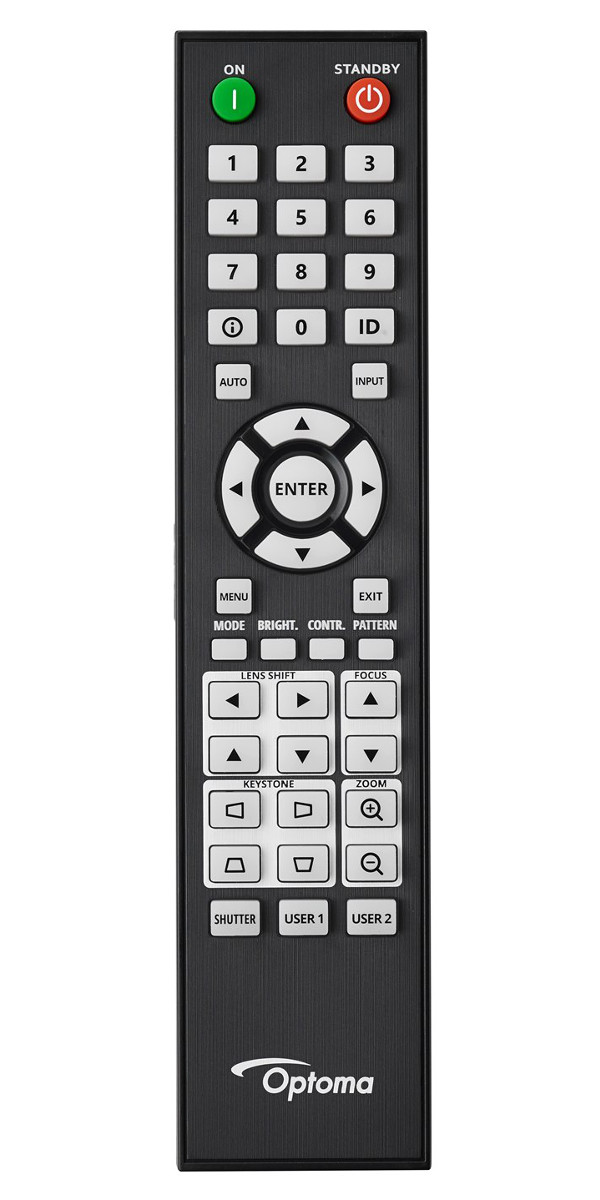

• Backlit remote control
• AAA batteries
• Power cable

Optional Lenses

Model	BX-CTA28	BX-CTA10	BX-CTA11	BX-CTA12	BX-CTA08	BX-CTA07	BX-CTA20	BX-CTA21 Std Lens	BX-CTA22	BX-CTA23
D:W 4K UHD+	0.34–0.37:1	0.50–0.65:1	0.78–0.90:1	0.90–1.30:1	1.25–2.0:1	1.30–1.80:1	1.44–1.8:1	1.80–2.40:1	2.40–4.80:1	4.80–8.64:1
f/stop	2.2–2.23	2.0–2.2	2.4–2.59	2.22–2.51	2.03–2.36	2.0–2.31	2.18–2.56	2.0–2.24	2.2–2.75	2.3–2.6

Other Accessories

Ceiling mounts

Factsheet (specs)

User Manual
