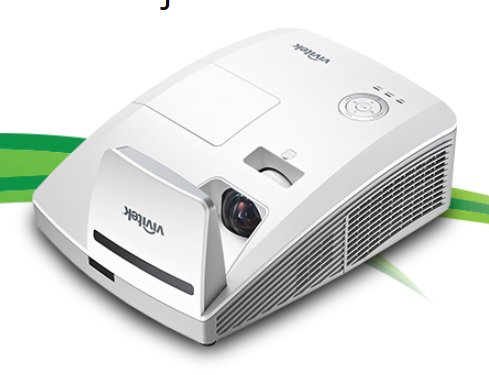

Vivitek DH758UST
Features
Full HD 1080p Ultra Short-Throw Projector with MHL*
Native 1080p (1920x1080) image, high brightness ultra-short throw projector for minimal space requirement and shadowing at screen. The Vivitek DH758UST projector can display a 110-inch image from about less than 31” throw distance. With a brightness level of 3500 lumens, contrast ratio of 10,000:1 and DLP®/BrilliantColor™ Technology, the DH758UST produces stunningly vibrant images with its new re-formulated color wheel. With an array of connection options and MHL functionality, built-in stereo 10W speakers, and 7,000-hour lamp life (in Dynamic Eco mode), the Vivitek DH758UST leads the industry in high resolution ultra-short throw projection. Vivitek is Vivitek is proud to offer customers our leading 5 year warranty and minimum of 3 year Advanced replacement, as standard.
*Mobile High-Definition Link
Specifications
| Brightness | 3500 Lumens (Typical) |
| Native Resolution | 1080p (1920 x 1080) |
| Contrast Ratio | 10,000:1 (Full On/Off) |
| Lamp Life and Type | ≈3,000/4,000/7,000 Hours (Normal/Eco/Dynamic Eco Mode), 280W |
| Lamp Part # | 5811119833-SVV |
| Display Type | Single 0.65" DLP® Technology by Texas Instruments |
| Throw Ratio (±3%) | 0.33:1 (Distance/Width) |
| Image Size (Diagonal) | 88" to 110" |
| Projection Distance | 26.1" to 36" (663mm~ 833mm) |
| Lens | Fixed, Manual Focus |
| Aspect Ratio | 16:9 Native, 4:3 Compatible |
| Offset | 124% |
| Keystone Correction | ±40° Vertical, ±40 Steps |
| Horizontal Scan Rate | 15, 30 to 91.4 KHz |
| Vertical Scan Rate | 24 ~ 30Hz, 47 ~ 120Hz |
| Speaker | 20W Stereo (10W x 2) |
| Remote Control | Full Featured IR Remote with Laser Pointer |
| Projection Method | Table Top or Ceiling Mount (Front or Rear) |
| Uniformity | 85% |
| Computer Compatibility | UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized; VESA Standards; PC and Macintosh Compatible |
| Video Compatibility | SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L) |

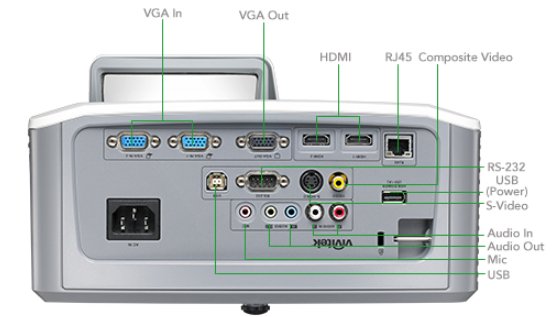

| I/O Connection Ports | HDMI v1.4 (x2, MHL included with HDMI 1), VGA-In (x2), VGA-Out, Composite Video, S-Video, Microphone, RCA Audio-In, Mini-Jack Audio-In, Mini-Jack Audio-Out, RJ45, RS-232C, USB Power, Mini USB (Type B for interactive), USB (Service) |
| Security | Kensington® Lock Port, Security Bar |
| Weight | 11 lbs (5.0 kg) |
| Dimensions (W x H x D) | 11.3" x 4.9" x 14.7" (287.7 x 126.6 x 374.5 mm) |
| Noise Level | 37dB/33dB (Standard/Economy Mode) |
| Power | Supply: AC 100-240V, 50/60HzConsumption: 320W (Eco Mode) 380W (Normal Mode), |
| Operating Temperature | 41 to 104°F (5 to 40°C) |
| Warranty | 5-Year Limited Parts/Labor, 1-Year Lamp |
| Standard Accessories | AC Power Cord, VGA Cable, Remote Control (batteries incld), User Manual (CD), Warranty Card |
| Optional Accessories | Wireless: Presentation and Collaboration NovoConnect (B360) Interactive: Finger Touch Module |
