Vivitek DU9800U

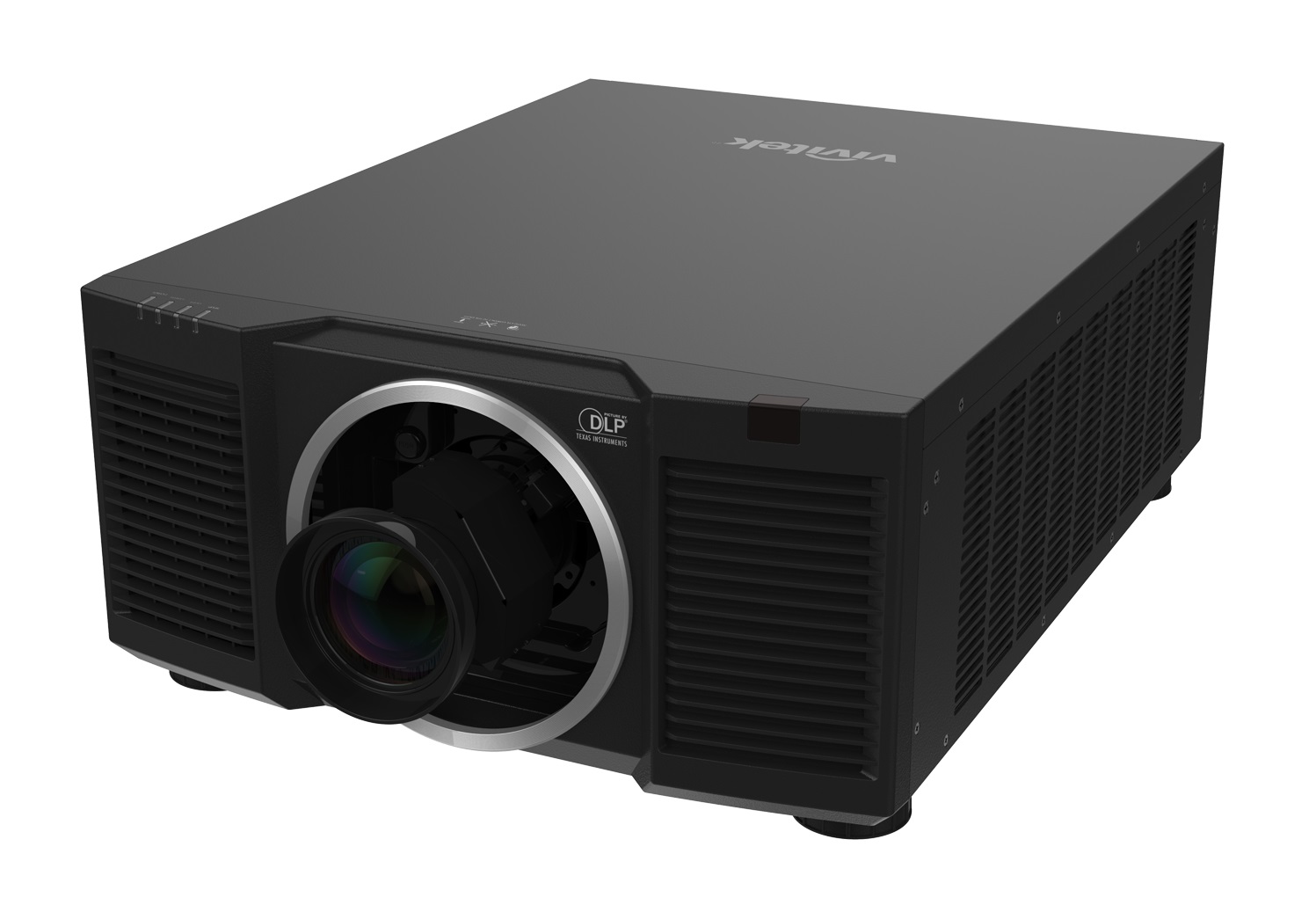

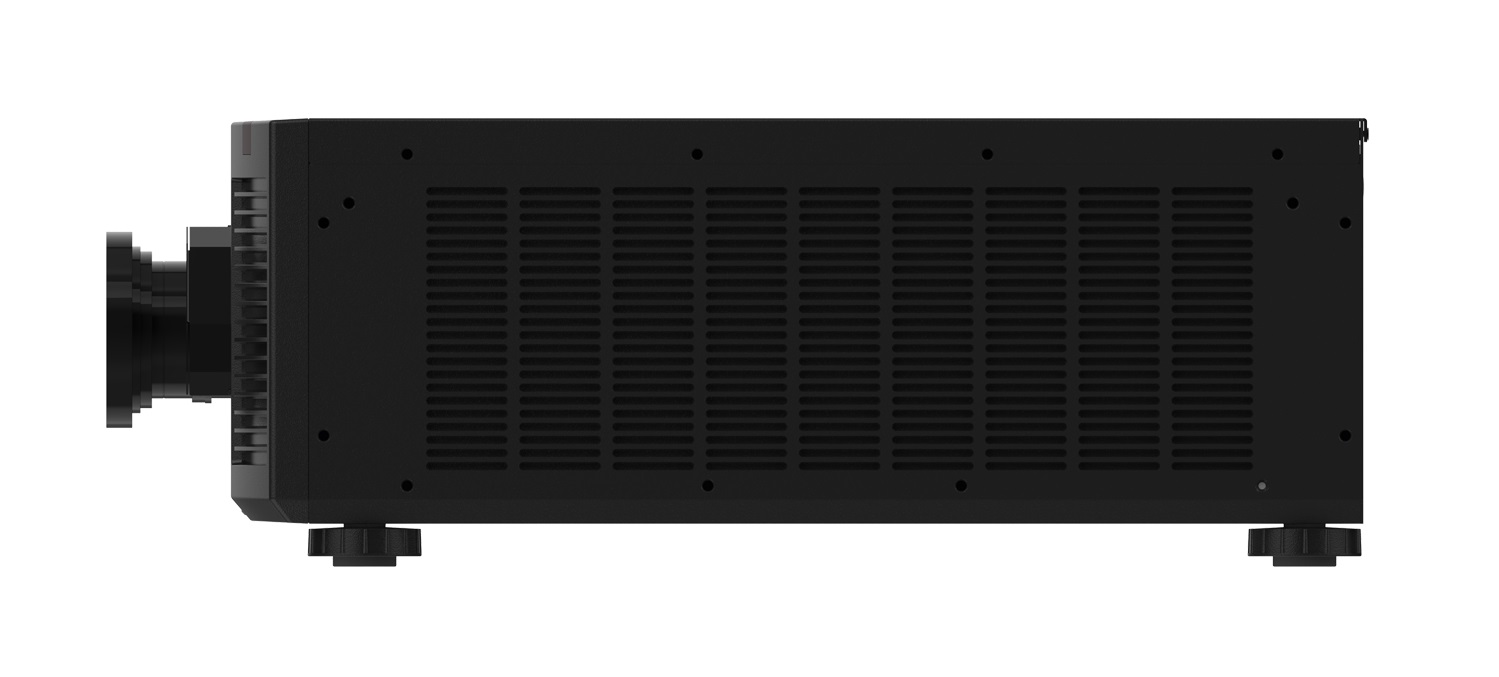

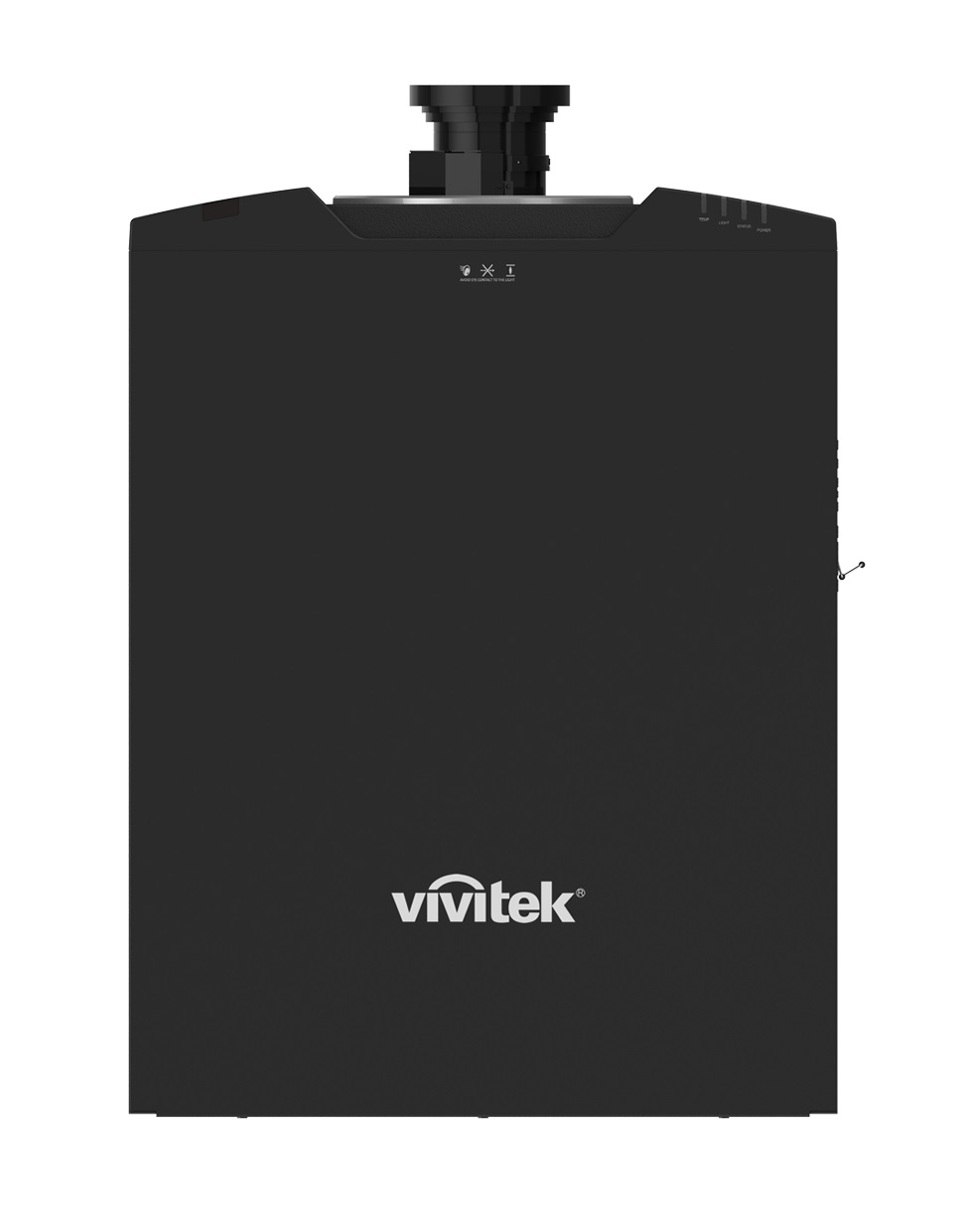

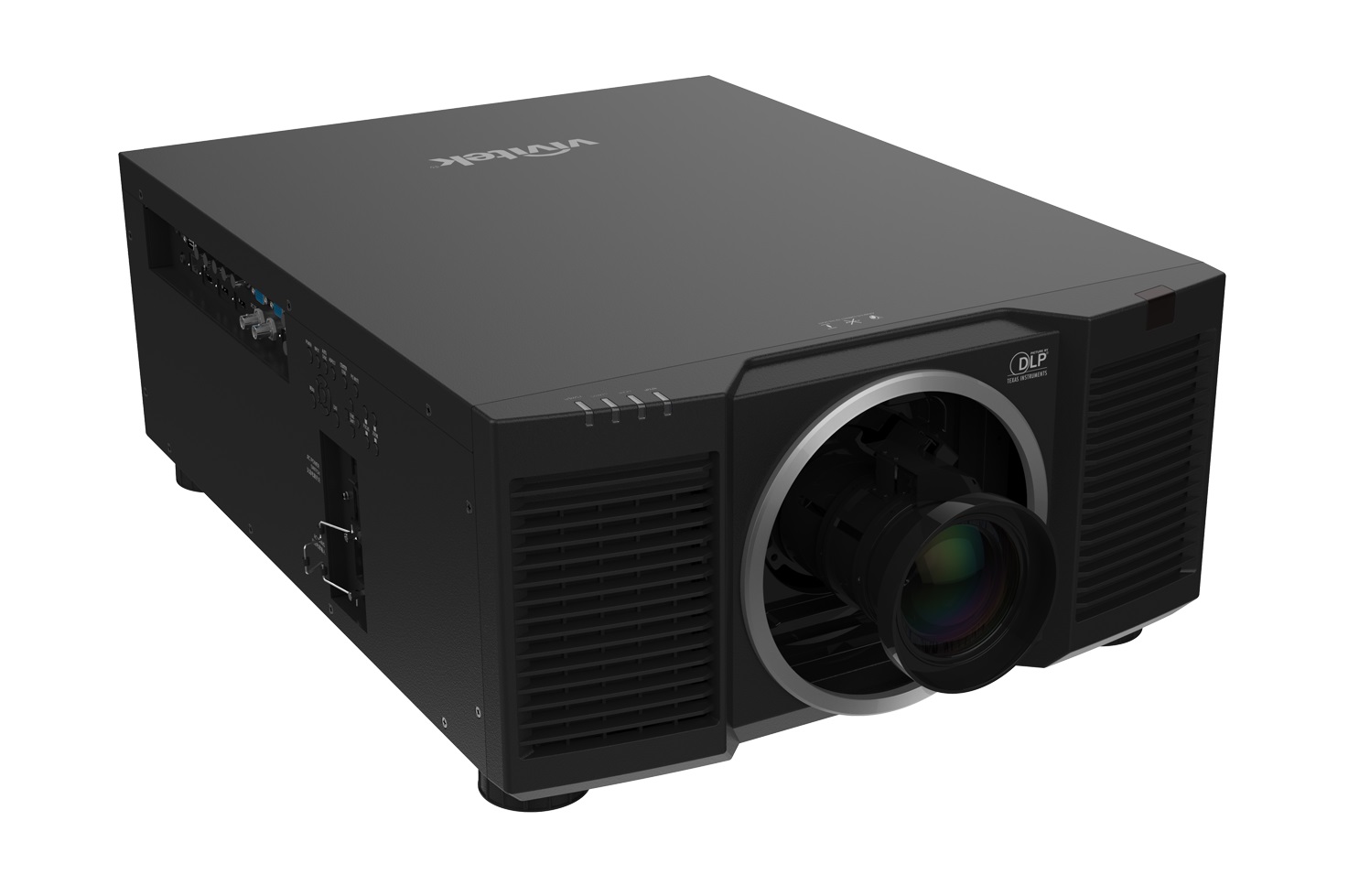

Vivitek DU9800Z 1-DLP Laser Phosphor Projector, 1920x1200 WUXGA, 18,000 Lumens, H&V Lens Shift, PIP, Edge Blending, 3G-SDI, No Lens, 5 year warranty
Item #0601-8330 Model #DU9800Z


  • Bright 18,000 ANSI lumens with a native WUXGA (1,920 x 1,200) resolution for impeccable colors and outstanding details
  • DLP® DarkChip3™ and BrilliantColor™ technologies for optimal black levels and vibrant colorful images
  • Sold state laser phosphor light source for reliable projection and performance
  • Environmentally friendly lamp-less design that is mercury-free and energy efficient
  • Almost maintenance-free with up to 20,000 hours of operating time
  • Advanced video processor for fluid video streaming and 10-bit programmable RGB color adjustments
  • Laser light source produces rich colors for an incredible cincematic like movie experience
  • Fine tune and optimize an image with advanced calibrations, including gamma and color management settings
  • Built-in hardware edge blending and warping functionality
  • Powered zoom, focus and lens shift (horizontal/vertical) for easy adjustment and positioning flexibility
  • Picture-in-Picture (PIP) for simultaneously image projection from two different active sources
  • Full suite of display connectivity inputs and outputs including: HDMI v1.4, DVI-D, Component (5 BNC) , VGA-In, 3G-SDI-In/Out, VGA-Out, HDBaseT™
  • HDBaseT™ interface with support for distribution of digitalvideo content over standard CAT5e/6 LAN cable
  • Portrait mode projection allows the projector to be easily setup and installed in a 90° installation
  • 360° operation and projection design for set up in all angles
  • Instantaneous power-on & off, so no need for system pre-heating and postcooling
  • Airtight sealed engine and filter-less design for improved performance against fighting dust and fibers
  • Frame sequential and dual channel 3D supported
  • Complete range of motorized interchangeable lens in sizes from 0:84 to 7:01 (Optional)
  • Optimized system layout with high efficiency cooling system
  • Heavy duty steel chassis for extra strength and integrity
  • 24/7 continuous operation with no downtime
  • Network ready for integration and system administration via RJ45


Display Type Single Chip 0.96" DLP Technology by TI
Brightness 18,000 ANSI Lumens
Native Resolution WUXGA (1920 x1200)
Max. Resolution WUXGA (1920 x 1200)@60Hz
Contrast Ratio 1,250:1 or 10,000:1 (with DB On)
Laser Life/Type Up to 20,000 hours (Laser Phosphor Light Engine)
Throw Ratio 1.5 - 2.0:1
Image Size (Diagonal) 40" - 500"
Projection Distance 1.24 - 21.8m (4.06ft to 71.5ft)
Projection Lens F = 2.17 – 2.65
Zoom Ratio 1.33x
Aspect Ratio 16:10
Offset Motorized Lens Shift
Keystone Correction Horizontal ±60°, Vertical ±40°
Horizontal Frequency 15, 30 – 90Hz
Vertical Scan Rate 50 - 85Hz
Edge Blending Yes (Built-In)
Warping Yes (Built-In)
3D Compatibility Yes
Lens Shift Range Vertical: ±50%, Horizontal: ±15%
Computer Compatibility VGA, SVGA, XGA, WXGA,SXGA, SXGA+, UXGA, 1080P, WUXGA@60hz
Video Compatibility SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L)

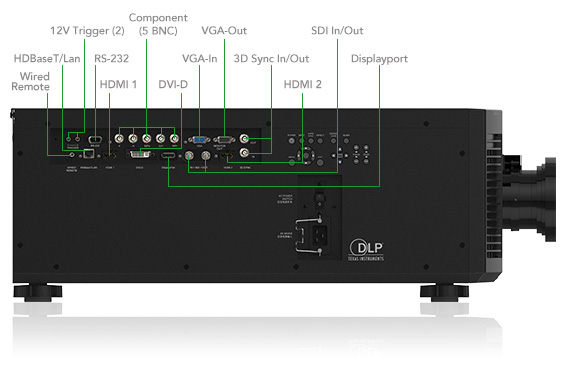

I/O Connection Ports HDMI v1.4 (x2), DVI-D, Component (5 BNC), 3G-SDIIn/ Out, VGA-In, DisplayPort v1.2, RS-232, VGA-Out, 3D-Sync In/Out, 12v Trigger 1, 12v Trigger 2, Wired Remote, HDBaseT™, RJ45
Projection Method Table Top, Ceiling Mount (Front or Rear)
Dimensions (W x D x H) 681 x 530 x 248mm (26.8” x 20.8" x 9.7")
Weight Estimated 48 kg (105.8 lb)
Available Colors Black (DU9800Z-BK)
Noise Level 43dB (Normal Mode)
Power Supply AC 100-240V, 50/60Hz
Power Consumption 1,900W (Normal Mode), 1,100W (Eco. Mode),
Standard Accessories AC Power Cord, Remote Control w/Batteries, Lens Cap, Documentation Kit
Optional Accessories Interchangeable Lens Options (x5)


Optional Lenses

D98-0810 D98-1518 D98-2440
Model D98-0810 D98-1215 D98-1520 D98-2040 D98-4070
D:W 0.84 - 1.03:1 1.25 - 1.56:1 1.5 - 2.0:1 2.0 - 4.0:1 4.0 - 7.0:1
f/stop 1.85 - 1.95 2.18 - 2.66  2.17 - 2.65 2.17 - 2.64 2.2 - 2.57


Other Accessories

VCM-U Chief mount Ceiling mounts
