Vivitek DK8500ZBK

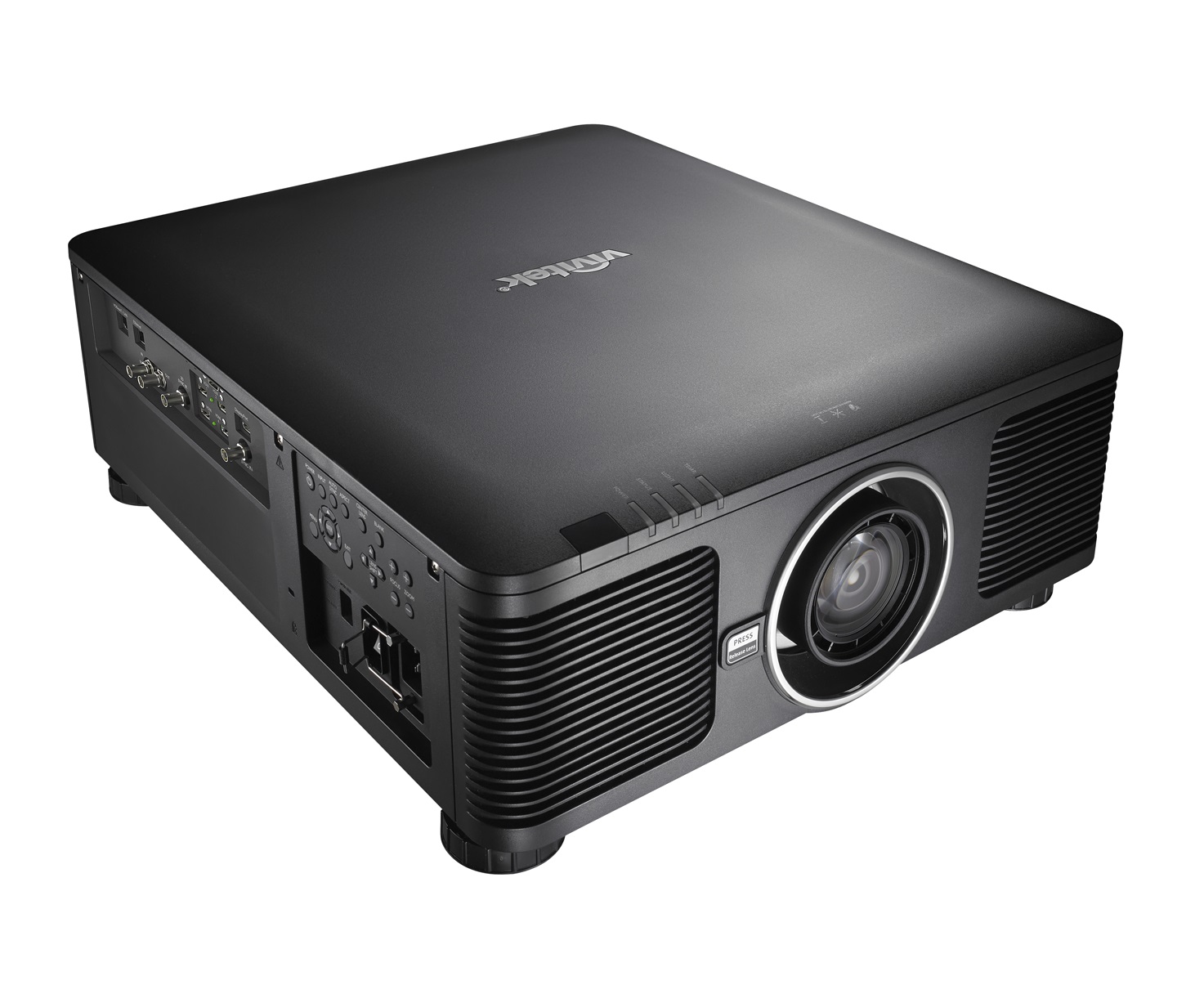

Vivitek DK8500Z-BK Laser/Phosphor light source 1-DLP Projector, 4K UHD, 7500 Lumens, No Lens, Black, 5 year warranty
Item #0601-8331 Model #DK8500ZBK

Features

  • Ultra HD 4K (3,840 x 2,160) resolution for outstanding details and stunning visuals
  • DLP® DarkChip3™ and BrilliantColor™ technologies for optimal black levels and vibrant colorful images
  • Sold state laser phosphor light source for reliable projection and performance
  • Environmentally friendly lamp-less design that is mercury-free and energy efficient
  • 7,500 ANSI lumens with a dynamic 10,000:1 contrast ratio for an amazing image quality
  • Almost maintenance-free with up to 20,000 hours of operating time
  • Advanced video processor for fluid video streaming and 10-bit programmable RGB color adjustments
  • Laser light source produces rich colors for an incredible cincematic like movie experience
  • Fine tune and optimize an image with advanced calibrations, including gamma and color management settings
  • Built-in hardware edge blending and warping functionality
  • Powered zoom, focus and lens shift (horizontal/vertical) for easy adjustment and positioning flexibility
  • Lens Positioning Memory (LPS) for quick recall of user defined lens positions (focus, zoom and lens shift)
  • Picture-in-Picture (PIP) for simultaneously image projection from two different active sources
  • Full suite of display connectivity inputs and outputs including: HDMI v2.0, DisplayPort v1.2, 3G-SDI-In/Out, HDBaseT™
  • Advanced HDMI 2.0 (x2) connectors for high resolution and quality digital video signals and quick data transfer rates
  • HDBaseT™ interface with support for distribution of digital UHD video content over standard CAT5e/6 LAN cable
  • Portrait mode projection allows the projector to be easily setup and installed in a 90° installation
  • 360° operation and projection design for set up in all angles
  • Instantaneous power-on & off, so no need for system pre-heating and postcooling
  • Airtight sealed engine and filter-less design for improved performance against fighting dust and fibers
  • Frame sequential and dual channel 3D supported
  • Eight (8) interchangeable lens options with quick touch lens release design for easy lens removal and reinstallation

Specifications

Display Type Single Chip 0.67" DLP Technology by TI
Brightness 7,500 ANSI Lumens (TBD)
Native Resolution UHD (3840 x 2160)
Max. Resolution UHD (3840 x 2160)@60Hz
Contrast Ratio 10,000:1
Laser Life/Type Up to 20,000 hours (Laser Phosphor Light Engine)
Throw Ratio 1.73 - 2.27:1
Image Size (Diagonal) 40" - 500"
Projection Distance 1.45 - 24.85m (4.77ft to 81.52ft)
Projection Lens F = 1.7 - 1.9, f = 26 - 34mm
Zoom Ratio 1.3x
Aspect Ratio 16:10
Offset Motorized Lens Shift
Keystone Correction Horizontal ±60°, Vertical ±40°
Horizontal Frequency 15, 30 – 90Hz
Vertical Scan Rate 50 - 85Hz
Edge Blending Yes (Built-In)
Warping Yes (Built-In)
3D Functionality Yes
Lens Shift Range Vertical: 0-50%, Horizontal: ±10%
Computer Compatibility VGA, SVGA, XGA, WXGA,SXGA, SXGA+, UXGA, 1080P, WUXGA@60hz, UHD 3840x2160@60Hz Mac
Video Compatibility SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), UHD 3840x2160@60Hz, NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L)
I/O Connection Ports HDMI 1/2 v2.0 (x2), HDMI 3/4 v1.4 (x2) (3D Only), 3G-SDI-In/Out, DisplayPort v1.2, RS-232, 3D-Sync In/Out, 12v Trigger, Wired Remote, HDBaseT™, RJ45
Projection Method Table Top, Ceiling Mount (Front or Rear)
Security Solutions Kensington® Security Slot, Security Bar, Keypad Lock, Anti-Theft Lens Screw
Dimensions (W x D x H) 500 x 580 x 205mm (19.7” x 22.8" x 8.1")
Weight 28kg (61.7lbs) (TBD)
Available Colors White (DK8500Z-WH), Black (DK8500Z-BK)
Noise Level 40dB (Normal Mode)
Power Supply AC 100-240V, 50/60Hz
Power Consumption 1,000W (Normal Mode), 800W (Eco. Mode),
Standard Accessories AC Power Cord, Remote Control w/Batteries, Lens Cap, Anti-Theft Lens Screw, Documentation Kit
Optional Accessories Interchangeable Lens Options (x8)**

Accessories

Optional Lenses

Model D88-UST011,2,3 D88-UWZ011 D88-WF185011,3 D88-WZ01

D88-ST001
Std Lens

 D88-SMLZ01 D88-LOZ101 D88-LOZ201
P/N 3797866500-SVK 3797804200-SVK 3797745100-SVK 3797745200-SVK 3797744200-SVK 3797745000-SVK 3797745400-SVK 3797744900-SVK
Price $5,495.00
Add to Cart 		$3,482.00
Add to Cart 		$2,613.00
Add to Cart 		$2,613.00
Add to Cart 		$1,315.00
Add to Cart 		$2,613.00
Add to Cart 		$2,613.00
Add to Cart 		$2,613.00
Add to Cart
Vivitek D88-UST01B lens Vivitek D88-UWz01 lens Vivitek D88-WF18501 lens Vivitek D88-WZ01 lens Vivitek D88-ST001 lens Vivitek D88-SMLZ01 lens Vivitek D88-LOZ101 lens Vivitek D88-LOZ201 lens
D:W
4K UHD		 0.38:1 0.74 – 0.92:1 0.75:1 1.23 – 1.77:1 1.71 – 2.24:1 2.19 – 3.62:1 3.54 – 5:31:1 5.24 – 8:16:1
f/stop 2.0 1.96 – 2.3 1.85 1.85 – 2.5 1.7 – 1.9 1.86 – 2.48 1.85 – 2.41 1.85 – 2.48

Notes

1 Not compatible with D8800, D8900, D8010W.

2 Lens support required. Bracket provided works with DU6871, DU8090Z, DU8190Z, DU893Z, and DK8500Z

3 Not compatible with Lens shift.
