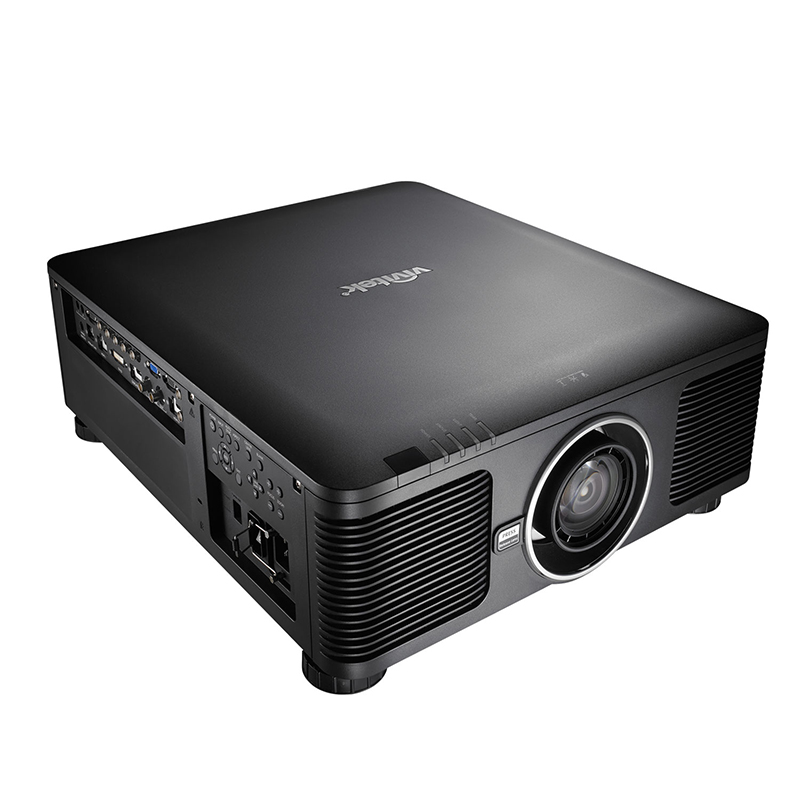

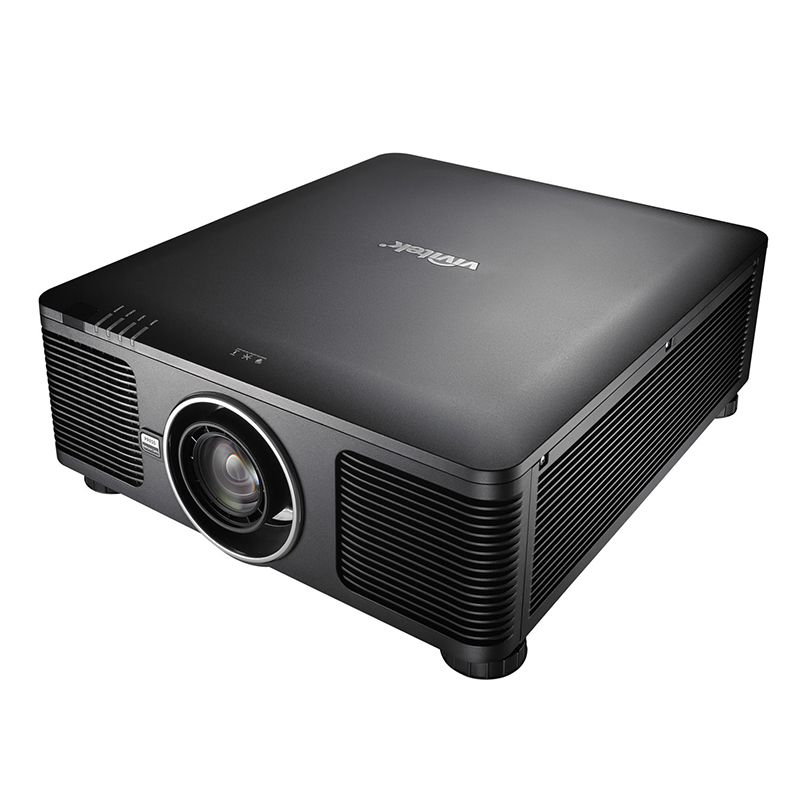

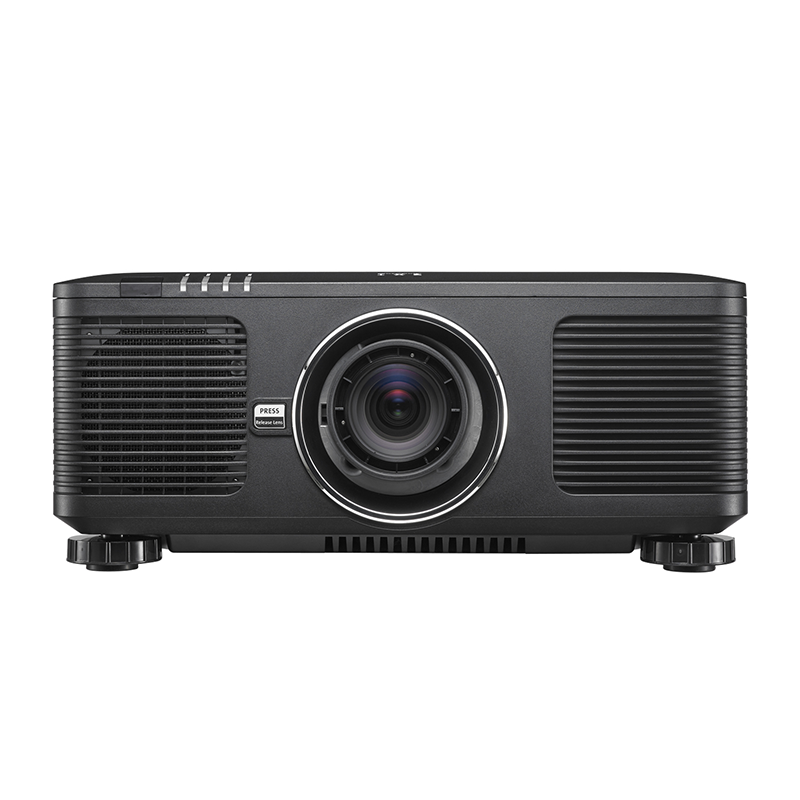

Vivitek DU8190ZB

Laser/Phosphor light source 1-DLP Projector, WUXGA, 10000 Lumen, No Lens, Black, 5 Year Warranty
Item #0601-8334 Model #DU8190ZB


The DU8190ZB is class leading in the next generation of advanced projection technology — LASER — at 10,000 ANSI lumens bright. Built lamp-free, it provides a low cost of ownership, with minimal maintenance, and gives stable, high-quality projection for up to 20,000 hours. A sealed optical engine and filterless design provide optimal performance, making it an ideal solution for large venues. With impressively vivid colors, the DU8190ZB offers the most immersive big-screen experience available in digital projection.


  • Laser phosphor projection engine incorporates a laser design that’s long lasting(20,000 hrs)and environmentally friendly
  • 10,000 ANSI lumens*, with a dynamic 10,000:1 contrast ratio, provide amazing image quality that's stable over time
  • Built-in ACS (auto color sensor) for color and brightness consistency
  • Built-in MPS (multi projector system) hardware for edge blending, flexible geometry and warping functionality
  • Powered zoom, focus and lens shift (horizontal/vertical) for easy adjustment and projector position flexibility together with memory system
  • Picture-in-Picture (PIP) to simultaneously project images/videos from two different sources
  • Full suite of display connectivity inputs and outputs including: HDMI v1.4a, DVI-D, Component (5 BNC), VGA-In, 3G-SDI-In/Out, VGA-Out, HDBaseT™ (content over CAT5e/6 cable)
  • Full 3D compatibility with DLP® Link™ and HDMI 1.4 interface
  • Flexible mounting positioning - 360 degrees in any axis for ease of installation
  • Network connectivity for remote projector management - control and status. Ready for integration and system administration via RJ45
  • Eight interchangeable lens options for flexible installation and optimized brightness
  • Sealed optical engine and filter-less design improves performance with minimal service maintenance
  • Instant On/Off


Optional Lenses

Model D88-UST011,2,3 D88-UWZ011 D88-WF185011,3 D88-WZ01

Std Lens

D88-SMLZ01 D88-LOZ101 D88-LOZ201
P/N 3797866500-SVK 3797804200-SVK 3797745100-SVK 3797745200-SVK 3797744200-SVK 3797745000-SVK 3797745400-SVK 3797744900-SVK
Price $5,495.00
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart

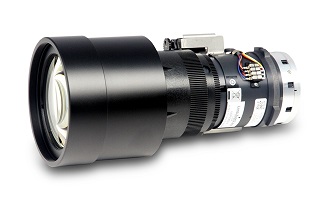

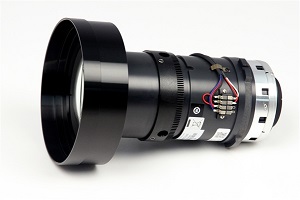

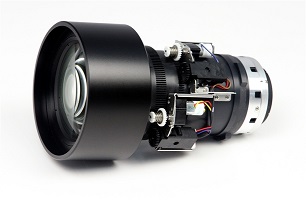

Vivitek D88-UST01B lens Vivitek D88-UWz01 lens Vivitek D88-WF18501 lens Vivitek D88-WZ01 lens Vivitek D88-ST001 lens Vivitek D88-SMLZ01 lens Vivitek D88-LOZ101 lens Vivitek D88-LOZ201 lens
0.38:1 0.75 – 0.93:1 0.76:1 1.25  1.79:1 1.73  2.27:1 2.22  3.67:1 3.58  5.38:1 5.31  8.26:1
f/stop 2.0 1.96  2.3 1.85 1.85  2.5 1.7  1.9 1.86  2.48 1.85 – 2.41 1.85 – 2.48


Not compatible with D8800, D8900, D8010W.

Lens support required. Bracket provided works with DU6871, DU8090Z, DU8190Z, DU893Z, and DK8500Z

Not compatible with Lens shift.



5-Year Warranty on Parts and Labor or 20,000 hours; whichever comes first / 3-Year Advanced Exchange
