Vivitek DU7295Z-BK
Laser DLP Projector, 1920x1200 WUXGA, 9000 Lumens, No Lens, Black
Item #0601-8392
Model #DU8295ZBK
Overview
Vivitek DU7295Z-BK
Bright 9,000 Lumens WUXGA laser projector
Widely regarded as the future of professional and consumer projection technology, laser projectors possess numerous advantages over traditional lamp-based systems. From enhanced brightness to minimal costs of ownership, laser projectors have quickly become the optimal projection choice for a diverse range of applications.
The DU7295Z-WH is a smart choice for mid to large corporate meeting rooms, houses of worship, and professional installations, thanks to its low total cost of ownership. This laser projector packs tremendous value for companies seeking maintenance-free durability up to 20,000 hours with easy installation and management.
Ensuring superior visibility with 9,000 ANSI lumen brightness and vibrant true-to-life colors with Rec. 709 color space, the DU7295Z-WH also offers exceptionally quiet 35 dB operation. Furthermore, it can be complemented with Vivitek’s NovoConnect Solution for wireless presentation and collaboration.
The DU7295Z-BK comes with a black casing and does not include a lens.
Features
- Advanced laser phosphor light engine for superior brightness and color uniformity
- Lampless design delivers up to 20,000 hours of operational time
- Up to 9,000 ANSI lumens with a 20,000:1 contrast ratio
- Native WUXGA resolution with a maximum WUXGA resolution
- Manual zoom and focus for easy adjustment and positioning flexibility
- Centered lens for easy installation
- Horizontal and vertical lens shift for greater installation convenience and flexibility
- Distorted and trapezoid image issues are easily corrected with keystone, and 4-corner adjustment
- HDBaseT™ interface with support for distribution of HD video and digital audio content over standard CAT5e/6 LAN cable

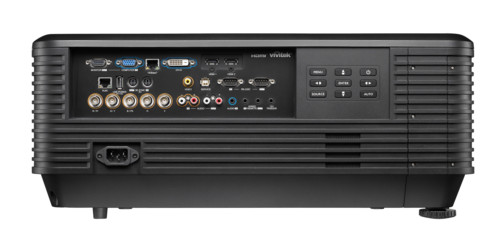

- Full suite of connectivity ports including: HDMI v2, DVI-D, Composite Video, Component (5 BNC) (RGBHV), VGA-In/Out, HDBaseT™ , LAN, RS-232-In/Out
- Total 20 W (10 W x 2) audio speaker power with multiple audio-in and audio-out ports
- 3D sync port for compatibility with IR (infrared) 3D passive synchronization protocol
- 360° (degree) installation for flexible installation in a wide variety of environmental conditions
- Network ready for integration and system administration via RJ45
- Crestron® RoomView™ integration for network monitoring and management
- Seven (7) interchangeable lens options with quick touch lens release design for easy lens installation/removal
- Anti-theft security features include: Kensington® security slot, and security bar
- Minimal required maintenance thanks to an instantaneous power-on and off, a sealed optical engine, and an airflow-optimized system layout.
Specifications
| Display Type | Single Chip 0.67" DLP Technology by TI |
| Brightness | 9,000 ANSI Lumens |
| Native Resolution | WUXGA (1920 x 1200) |
| Maximum Resolution | WUXGA (1920 x 1200) @60Hz |
| Contrast Ratio | 20,000:1 |
| Laser Life/Type | 20,000+ hours (Laser Phosphor Light Engine) |
| Throw Ratio* | 1.54 – 1.93:1 |
| Image Size (Diagonal)* | 36.1" – 211" |
| Projection Distance* | 1.5 m – 7 m (4.9 ft – 22.96 ft) |
| Projection Lens* | F# = 2.0 ~ 2.09 f = 22.8 – 28.5 mm |
| Zoom Ratio* | 1.25x |
| Aspect Ratio | 16:10 |
| Offset | N/A (Manual Focus/Zoom) |
| Keystone Correction | Vertical: ±25° – ±30°, Horizontal: ±30° |
| Horizontal Frequency | 15, 31 – 91.4 Hz |
| Vertical Scan Rate | 24 – 30 Hz, 47 – 120 Hz |
| 3D | Yes (DLP® Link™, HDMI 1.4 (Blu-Ray 3D) |
| Speaker | 10 W (x2) |
| Lens Shift Range* | Vertical: -15% to +55%, Horizontal: -5% to +5% |
| Computer Compatibility | VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA,4K@60hz, Mac |
| Video Compatibility | SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L) |
| I/O Connection Ports | HDMI v2 (x2), DVI-D, Composite Video, Component (5 BNC) (RGBHV), 3D-Sync-In, VGA-In, Audio-In RCA (L/R), Audio-In (Mini-Jack), VGA-Out, AudioOut RCA (L/R), 3D Sync-Out, USB Type A Power (5V/1.5A), 3D-Sync-Out, 12V Trigger, RS-232-In, RS232-Out, Wired Remote-In, Wired Remote-Out, HDBaseT™, RJ45 (LAN), USB (Service) |
| Projection Method | Table Top, Ceiling Mount (Front or Rear) |
| Security Solutions | Kensington® Security Slot, Security Bar, Keypad Lock |
| Dimensions (W x D x H) | 470 x 517 x 202 mm (18.5” x 20.3” x 7.9") |
| Weight | 24.5 kg (54 lbs) |
| Color | Black |
| Noise Level | 37 dB / 35 dB (Normal/Eco. Mode) |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption | 690 W (Normal Mode), 560 W (Eco. Mode), |

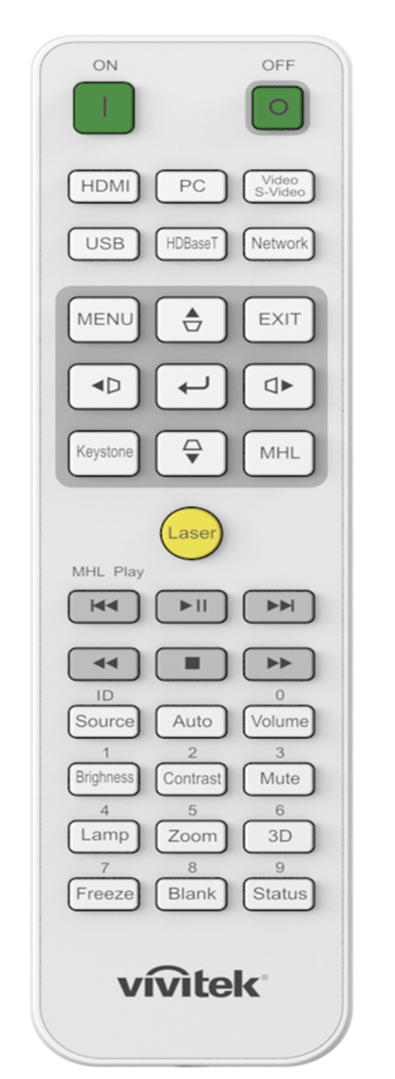

| Standard Accessories | AC Power Cord, VGA Cable, Remote Control, Filter, Lens Cap, Documentation Kit |
| Optional Accessories | Interchangeable Lens Options (x7). See Accessories tab. |
| Standard Warranty | 5-Year Warranty on Parts and Labor / 3 years Advanced Exchange / 1-year Lamp Warranty |
*Overdrive
Accessories
Optional Lenses
| Model | VL904G | VL911G | VL907G | VL912G | VL906G Std Lens |
VL908G | VL909G |
| Price |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
 |
 |
 |
 |
 |
 |
 |
|
| D:W WUXGA |
0.78:1 | 0.77 – 1.1:1 | 1.1 – 1.3:1 | 1.25 – 1.60:1 | 1.54 - 1.93:1 | 1.93 – 2.9:1 | 3.0 – 5.0:1 |
| F/stop | 2.54 | 2.1 – 2.6 | 2.05 – 2.27 | 2.0 – 2.44 | 2.0 – 2.09 | 2.5 – 3.1 | 2.2 – 2.5 |
Other Accessories
 |
Ceiling mounts |
