Vivitek DU7099Z-WH
Laser DLP Projector, WUXGA, 7600 Lumens, No Lens, White, 5-Year Warranty
Item #0601-8394 Model #DU7099ZWH
Overview
Vivitek DU7099Z-WH
Energy-efficient 7600-lumen laser projector for large venues
The newly designed Vivitek DU7099Z is a most efficient WUXGA large venue projector with application versatility, featuring HDBaseT™ and 4K compatibility. This 3D projector offers incredible brightness up to 7,600 ANSI lumens and supports motorized lenses, with lens positioning memory to cater for any installation requirements.
The DU7099Z series uses the latest laser light source technology to enhance brightness, featuring the lowest power consumption and highest efficiency in the market. Compared to previous projectors, this series saves up to 45% on power consumption.
The DU7099Z's maintenance-free reliable operation lasts for up to 30,000 hours with constant brightness and color uniformity, thanks to the optional IP6X sealed engine design, making this series perfect for large venues, such as auditoriums, lecture halls, sports arenas, and both rental and staging markets.
Note: The DU7099Z-WH comes with a white casing and does not include a lens. See the DU7099Z-BK for a black casing.
Features
- Solid state laser phosphor light source for reliable projection and performance.
- Environmentally friendly lamp-less design that is mercury-free and energy efficient.
- DLP® and BrilliantColor™ technologies for high-performance projection
- 7,600 lumens of brightness with a high 3,000,000:1 contrast ratio for an amazing image quality
- Almost maintenance-free with up to 20,000 hours of operating time
- Native WUXGA resolution with up to UHD-4K video signal transmission through HDBaseT™ and HDMI v2.0 interface
- Embedded smart sensor detects the brightness levels and automatically adjusts the output levels to ensure a constant bright image.
- Powered zoom, focus and lens shift (horizontal/vertical) for easy adjustment and positioning flexibility
- Lens Positioning Memory for quick recall of user defined lens positions (focus, zoom and lens shift)
- Distorted and trapezoid image issues are easily corrected with HV keystone and 4-corner adjustments.
- High Dynamic Range (HDR10) delivers enriched brightness and vibrancy for precise natural colors.

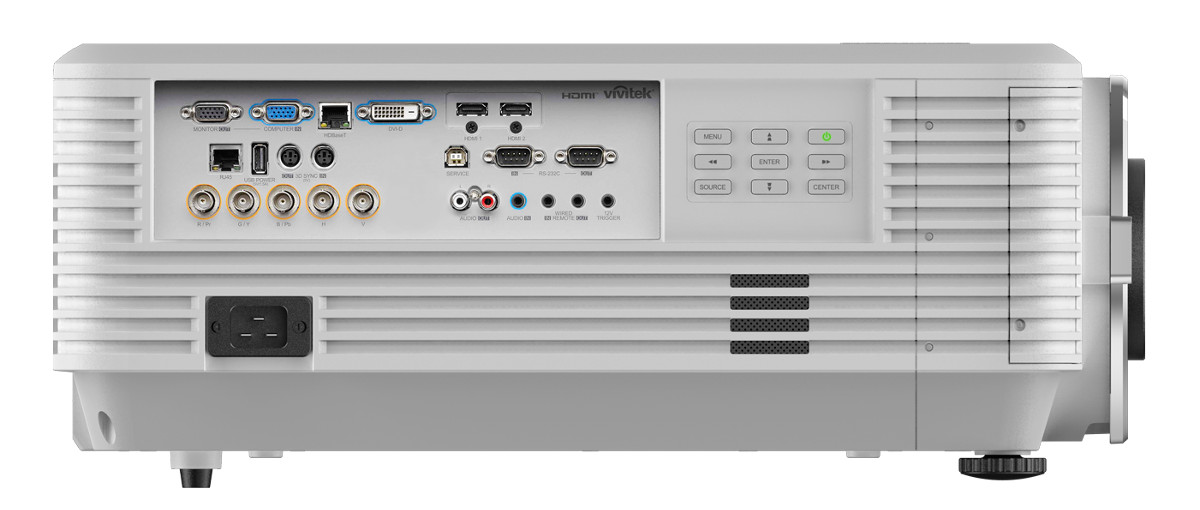

- Full suite of display connectivity inputs and outputs including HDMI v2.0, DVI-D, HDBaseT™, Component (5 BNC), VGA-In/Out
- HDBaseT™ interface with support for distribution of digital HD video content over standard CAT5e/6 LAN cable
- 3D compatibility with DLP® Link™ and HDMI 2.0 technology support (Blu-ray, side by side, frame packing, top and bottom) for dazzling and realistic life-like images
- Portrait mode projection allows the projector to be easily setup and installed in a 90° installation & 360° operation and projection design for setup in all angles.
- Built-in 12V trigger for convenient screen control
- Nine (9) interchangeable lens options with quick touch lens release design for easy lens removal and re-installation
- Airtight sealed engine and filter-less design fight dust and fibers for improved performance
- Optimized system layout with high efficiency cooling system
- 24/7 continuous operation with no downtime
- Network-ready for integration and system administration via RJ45
- Remotely manage and monitor a location's networked projectors from a centralized PC with Vivitek Projector Control Suite, a free companion app for Windows OS
- Supported Art-Net protocol with DMX controller for Stage Console system
- Usage time & power level locked provide convenient settings for rental market.
Specifications
| Display Type | Single Chip 0.67" DLP Technology by TI | ||||||||||||||||||||||||||||
| Brightness | 7,600 ANSI Lumens | ||||||||||||||||||||||||||||
| Native Resolution | WUXGA (1920 x 1200), 16:10 format | ||||||||||||||||||||||||||||
| Supported Resolution | UHD (3840 x 2160) @60 Hz 4K-Compatible | ||||||||||||||||||||||||||||
| Contrast Ratio | 1,300:1 (Native) / 20,000:1 (Dynamic) / 3,000,000:1 (Full On/Off) | ||||||||||||||||||||||||||||
| Laser Life/Type | 20,000+ hours (Laser Phosphor Light Engine) | ||||||||||||||||||||||||||||
| Aspect Ratio | 16:10 Native | ||||||||||||||||||||||||||||
| Offset | Motorized Lens Shift | ||||||||||||||||||||||||||||
| Keystone Correction | Vertical: ±30°, Horizontal: ±30° | ||||||||||||||||||||||||||||
| Horizontal Frequency | 15, 31–102 kHz | ||||||||||||||||||||||||||||
| Vertical Scan Rate | 24–30 Hz, 47–120 Hz | ||||||||||||||||||||||||||||
| 3D | Yes (DLP® Link™, HDMI 2.0 (Blu-Ray 3D) | ||||||||||||||||||||||||||||
| Speaker | 10 W (x2) | ||||||||||||||||||||||||||||
| Lens Shift Range | Vertical: Bottom 50% to Top 70% Horizontal: -5% to +5% |
||||||||||||||||||||||||||||
| Projector Lens | 9 options (See Accessories tab) | ||||||||||||||||||||||||||||
| Computer Compatibility | VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA, 4K@60 Hz, Mac | ||||||||||||||||||||||||||||
| Video Compatibility | SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), UHD, NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L) | ||||||||||||||||||||||||||||
| I/O Connection Ports |
|
||||||||||||||||||||||||||||
| Projection Method | Table Top, Ceiling Mount (Front or Rear) | ||||||||||||||||||||||||||||
| Security Solutions | Kensington® Security Slot, Security Bar, Keypad Lock | ||||||||||||||||||||||||||||
| Dimensions (W x D x H) | 18.5” x 20.3” x 7.9" (470 x 517 x 202 mm) | ||||||||||||||||||||||||||||
| Weight | 54 lb (24.5 kg) | ||||||||||||||||||||||||||||
| Color | White | ||||||||||||||||||||||||||||
| Noise Level | 34 dB / 32 dB (Normal/Eco. Mode) | ||||||||||||||||||||||||||||
| Power Supply | AC 100–240 V, 50/60 Hz | ||||||||||||||||||||||||||||
| Power Consumption | 465 W (Normal Mode) < 2 W (LAN Standby Mode) < 0.5 W (Standby Mode). |
||||||||||||||||||||||||||||
| Standard Accessories | AC Power Cord, VGA Cable, Remote Control, Filter, Lens Cap, Documentation Kit | ||||||||||||||||||||||||||||
| Optional Accessories | Interchangeable Lens Options (x9). See Accessories tab and specs PDF on Downloads tab | ||||||||||||||||||||||||||||
| Standard Warranty | 5 Years | ||||||||||||||||||||||||||||
Accessories
Optional Lenses
| Model | D86-04705 | D86-0711 | D86-1113 | D86-1216 | D86-1519 | D86-1929 | D88-SMLZ01 | D88-LOZ101 | D88-LOZ201 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| D:W WUXGA |
0.47–0.5:1 | 0.77–1.1:1 | 1.1–1.3:1 | 1.25–1.60:1 | 1.54–1.93:1 | 1.93–2.9:1 | 2.22–3.67:1 | 3.58–5.38:1 | 5.31–8.26:1 |
| F/stop | 2.1 | 2.1–2.6 | 2.05–2.27 | 2.0–2.44 | 2.02–2.40 | 2.5–3.1 | 1.86–2.48 | 1.85-2.41 | 1.85–2.48 |
Other Accessories
 |
Ceiling mounts |
