Vivitek DU7098Z-WH
Laser 1-DLP Projector, WUXGA, 7000 Lumens, No Lens, 5-Year Warranty
Item #0601-8431 Model #DU7098ZWH
Overview

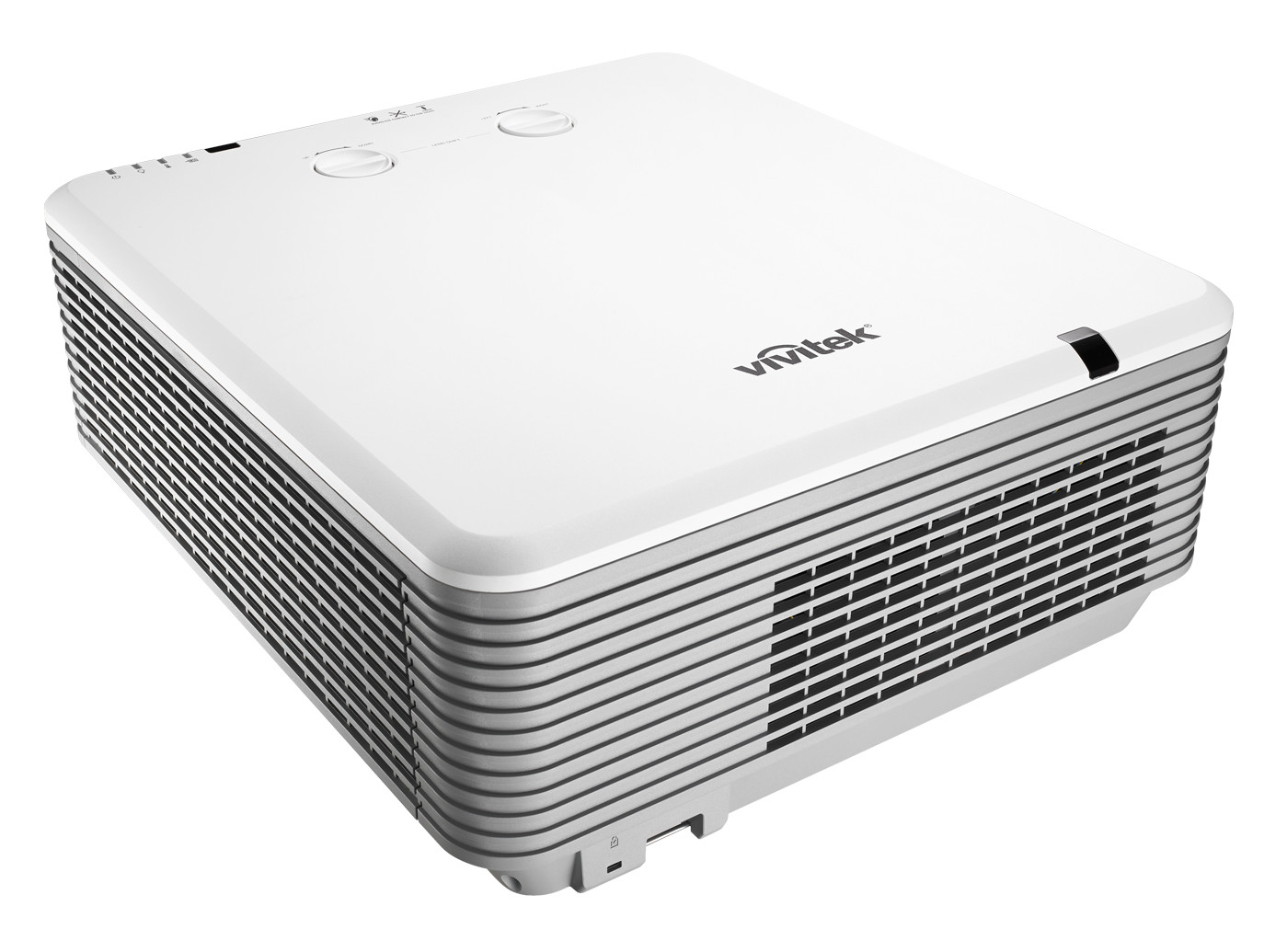

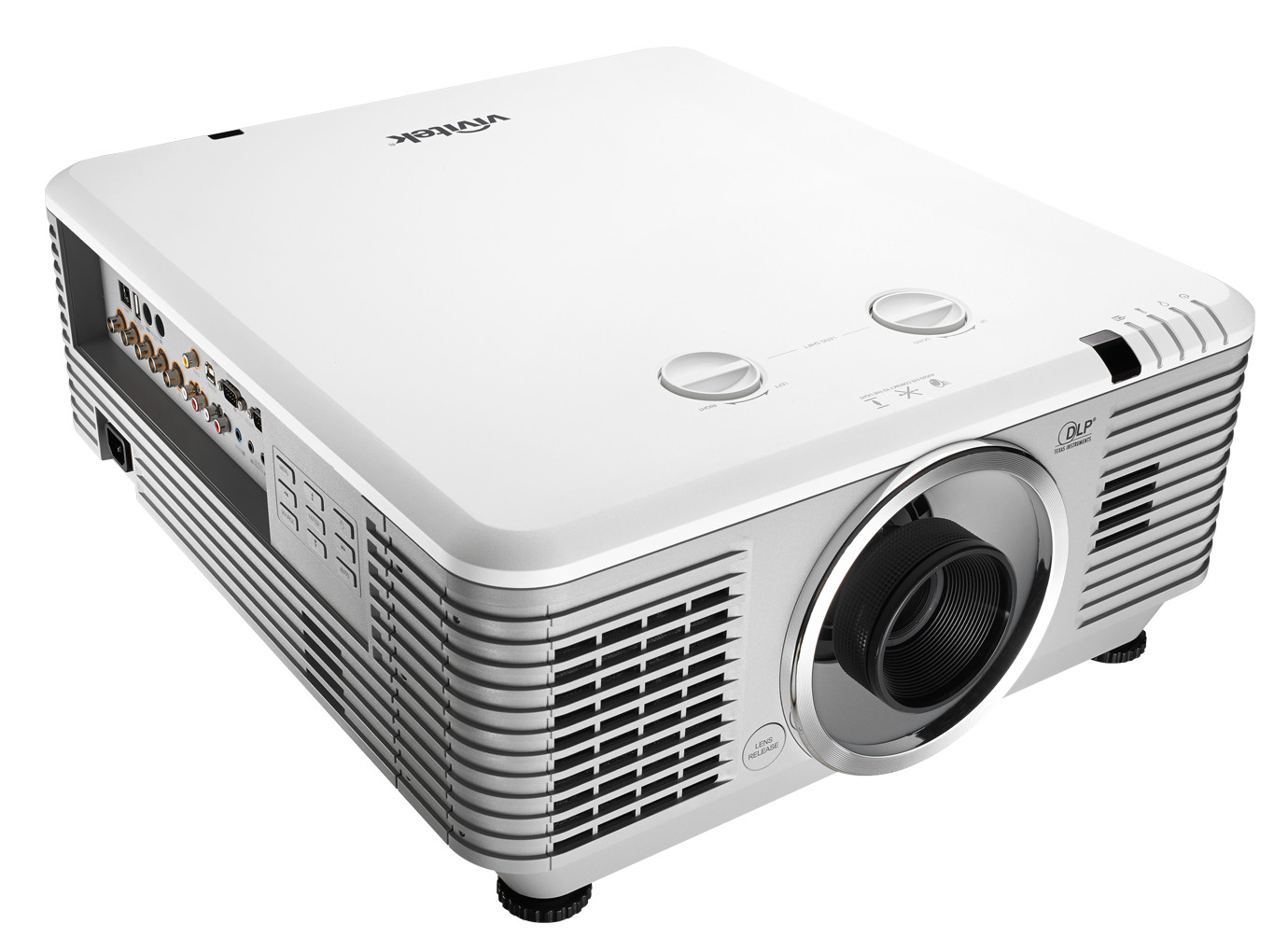

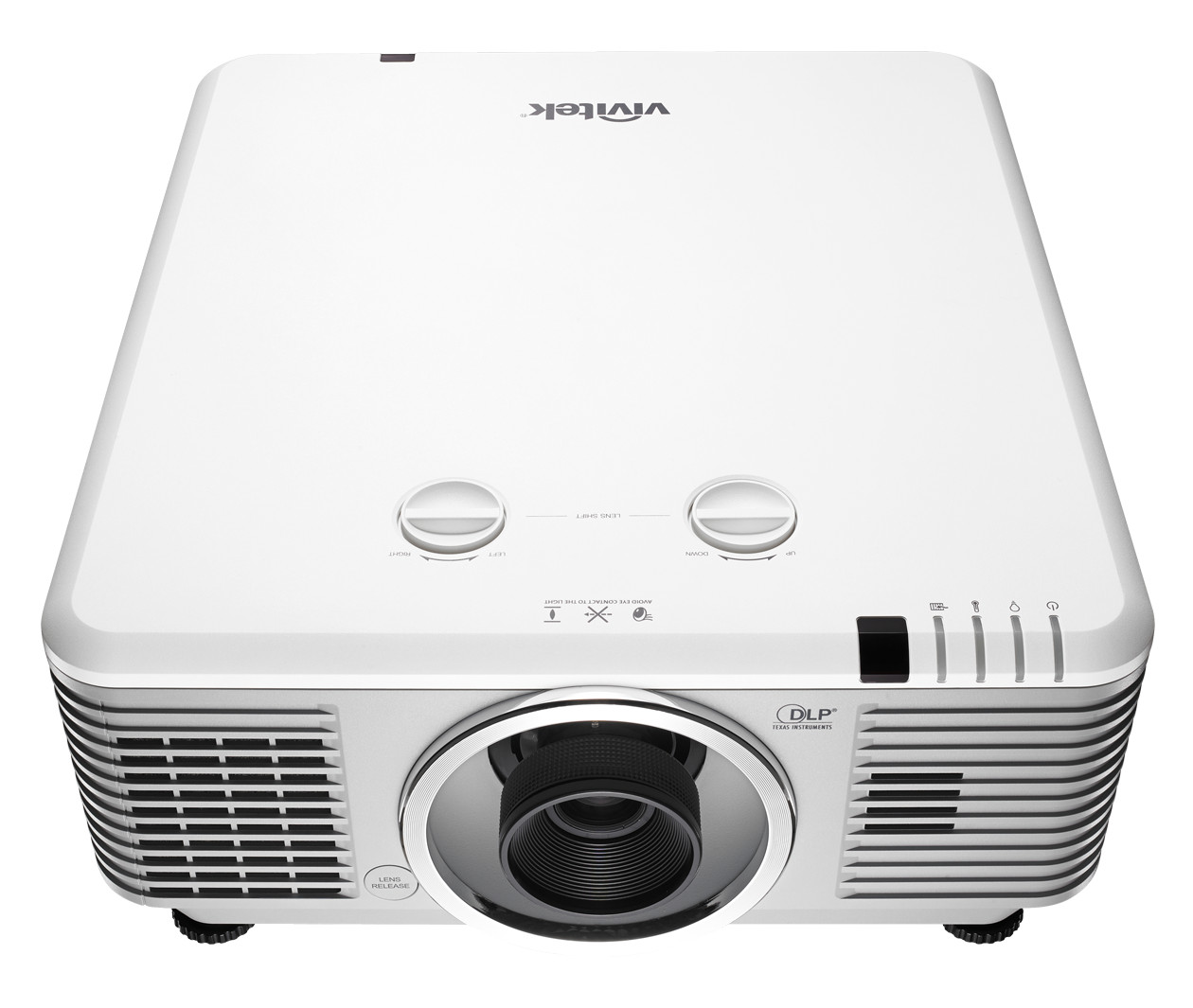

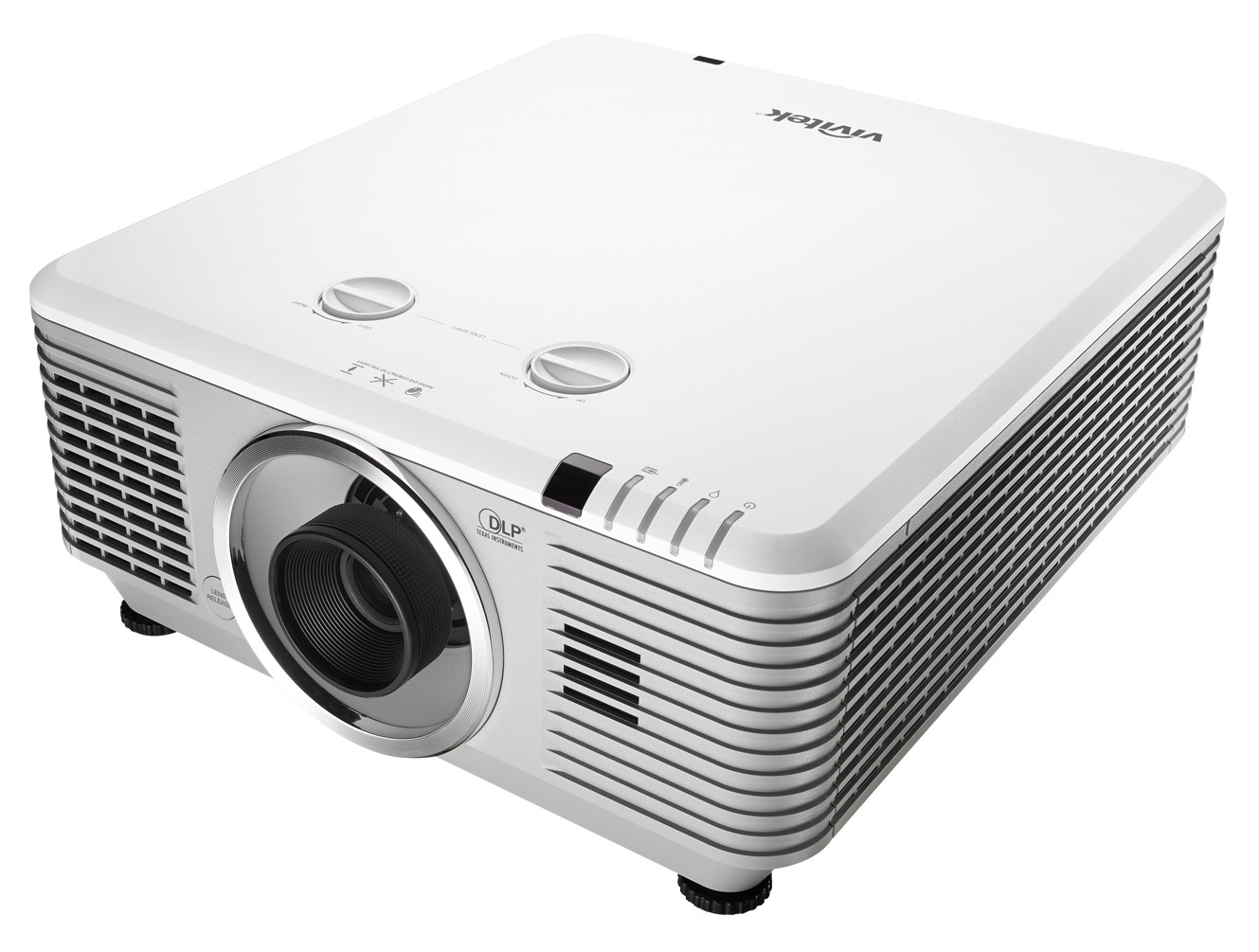

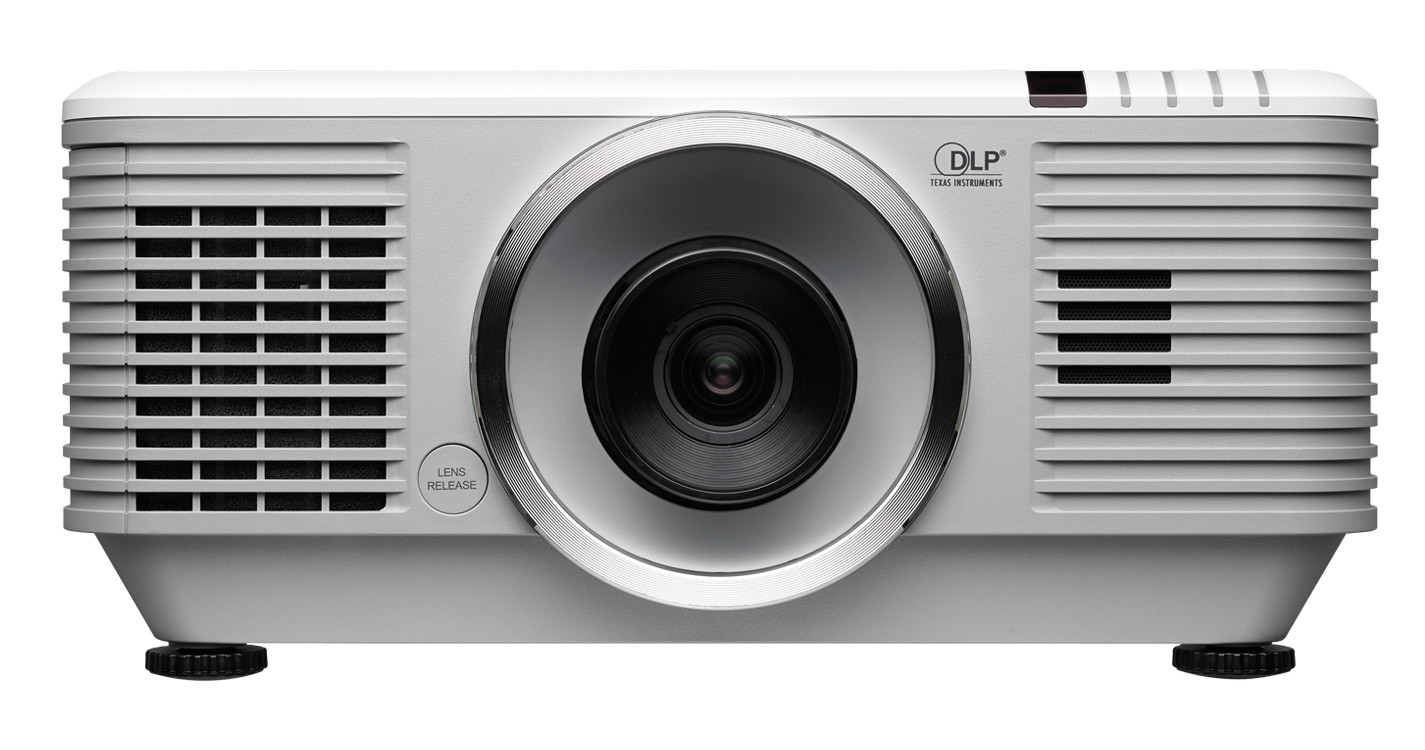

Vivitek DU7098Z-WH
Versatile High Performance WUXGA Large Venue Laser Projector (body only)
A smart choice for mid to large corporate meeting rooms thanks to its low total cost of ownership, the DU7098Z laser projector packs tremendous value for companies seeking maintenance-free durability up to 20,000 hours with easy installation and management.
The DU7098Z ensures superior visibility with 7,000 ANSI lumen brightness and vibrant true-to-life colors with Rec. 709 color space, along with exceptionally quiet 33 dB operation. Engineered with advanced thermal technology that helps its performance and durability, this projector perfectly combines extraordinary viewing experience with top cost efficiency.
4K-compatible and 3D-ready, with support for HDBaseT™, the DU7098Z can also be complemented with Vivitek’s NovoConnect Solution for wireless presentation and collaboration.
(The DU7098Z-WH comes with a white casing and does not include a lens.)
Features
- Advanced laser phosphor light engine for superior brightness and color uniformity
- Lampless design delivers up to 20,000 hours of operational time
- Up to 7,000 ANSI lumens with a 20,000:1 contrast ratio
- Native WUXGA resolution with 4K-compatible resolution
- Manual zoom and focus for easy adjustment and positioning flexibility
- Centered lens for easy installation
- Horizontal and vertical lens shift for greater installation convenience and flexibility
- Distorted and trapezoid image issues are easily corrected with keystone and 4-corner adjustment
- HDBaseT™ interface with 4K support for distribution of HD video and digital audio content over standard CAT5e/6 LAN cable
- DB (Dynamic Black) ready for deeper blacks with detailed black reproduction
- Embedded smart sensor automatically adjusts to ensure a constant bright image

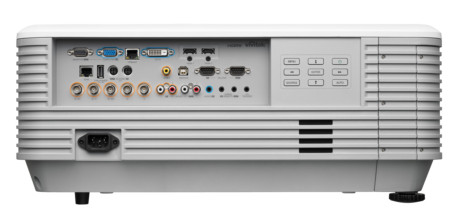

- Full suite of display connectivity inputs and outputs including: HDMI v2.0, DVI-D, Composite Video, Component/RGBHV (5 BNC), VGA-In, VGA-Out, HDBaseT™ and LAN
- 3D compatibility with DLP® Link™ and HDMI 1.4 Blu-Ray technology support
- 3D sync port for compatibility with IR (infrared) 3D passive synchronization protocol
- 360° (degree) installation for flexible installation in a wide variety of environments
- Network-ready for integration and system administration via RJ45
- Crestron® RoomView™ integration for network monitoring and management
- Seven (7) interchangeable lens options with quick-touch lens release design for easy lens installation/removal
- Anti-theft security features include: Kensington® security slot and security bar
Specifications
| Display Type | Single Chip 0.67" DLP Technology by TI | ||||||||
| Brightness | 7,000 ANSI Lumens | ||||||||
| Native Resolution | WUXGA (1920 x 1200), 16:10 format | ||||||||
| Supportive Resolution | 4K Compatible | ||||||||
| Contrast Ratio | 20,000:1 | ||||||||
| Laser Life/Type | 20,000+ hours (Laser Phosphor Light Engine) | ||||||||
| Aspect Ratio | 16:10 Native | ||||||||
| Offset | N/A (Manual Focus/Zoom) | ||||||||
| Keystone Correction | Vertical ±30°, Horizontal ±30° | ||||||||
| Horizontal Frequency | 15, 31 – 102 kHz | ||||||||
| Vertical Scan Rate | 24 – 30 Hz, 47 – 120 Hz | ||||||||
| 3D | Yes (DLP® Link™, HDMI 1.4 (Blu-Ray 3D) | ||||||||
| Projector Lens | 7 optional lenses (see Accessories tab) | ||||||||
| Lens Shift Range | Vertical: -15% to +55%, Horizontal: -5% to +5% | ||||||||
| Speaker | 10 W (x2) | ||||||||
| Computer Compatibility | VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA@60Hz, Mac, UHD | ||||||||
| Video Compatibility | SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), UHD, NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N), SECAM (B,D,G,K,K1,L) | ||||||||
| I/O Connection Ports |
|
||||||||
| Projection Method | Table Top, Ceiling Mount (Front or Rear) | ||||||||
| Security Solutions | Kensington® Security Slot, Security Bar, Keypad Lock | ||||||||
| Dimensions (W x D x H) |
18.5" x 20.3" x 7.9" (470 x 517 x 202 mm) | ||||||||
| Weight | 54 lb (24.5 kg) | ||||||||
| Color | White | ||||||||
| Noise Level | 37 dB / 35 dB (Normal/Eco Mode) | ||||||||
| Power Supply | AC 100–240 V, 50/60 Hz | ||||||||
| Power Consumption |
|
||||||||
| Standard Accessories | AC Power Cord, VGA Cable, Remote Control, Filter, Lens Cap, Documentation Kit | ||||||||
| Optional Accessories | Interchangeable Lens Options (x7). See Accessories tab. | ||||||||
| Standard Warranty | 5-year warranty on parts and labor / 3 years advance replacement / 20,000 hours on laser |
Accessories
Optional Lenses
| Model | VL904G/LNS-5FX2 | VL911G/LNS-5WZ2 | VL907G/LNS-5STZ | VL912G/LNS-5STZ2 | VL906G/LNS-5SZ12 Std Lens |
VL908G/LNS-5LZ23 | VL909G/LNS-5LZ2 |
| P/N | 5811120818-SVV | 5811122742-SVV | 5811120054-SVV | 5811122743-SVV | 5811120865-SVV | 5811119237-SVV | 5811120055-SVV |
| Price |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
 |
 |
 |
 |
 |
 |
 |
|
| D:W WUXGA |
0.78:1 | 0.77 – 1.1:1 | 1.1 – 1.3:1 | 1.25 – 1.60:1 | 1.54 – 1.93:1 | 1.93 – 2.9:1 | 3.0 – 5.0:1 |
| f/stop | 2.54 | 2.1 – 2.6 | 2.05 – 2.27 | 2.0 – 2.44 | 2.0 – 2.09 | 2.5 – 3.1 | 2.2 – 2.5 |
Other Accessories
 |
Ceiling mounts |
