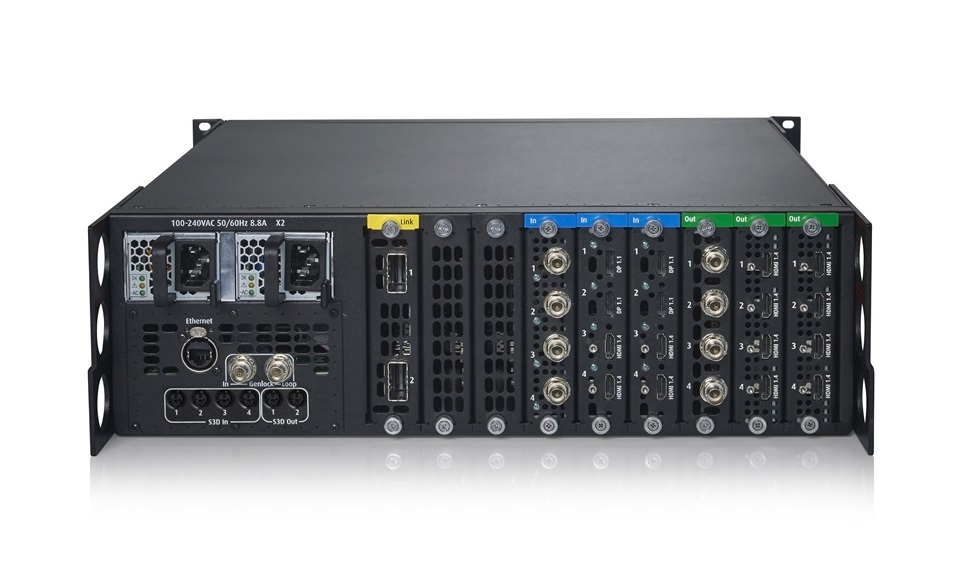

Barco R9004757

S3-4K EventMaster, 12 Input, 8 Output, 4 Mixers, B-Stock, 3 year warranty
Part #: 0602-2551    Mfr #: R9004757

Description

Compact Event Master processor

  • Native 4K input and output supported
  • Easy expansion thanks to interlinking of chassis
  • Compact and modular design
  • Wireless controller for your Barco presentation switchers - now available for iPad!

Featuring 12 input channels, 4 PROGRAM outputs, 4 AUX outputs and 2 dedicated Multiviewer outputs, the S3-4K is the E2 image processor’s more compact sidekick. Under the hood, however, it boasts the same processing performance, image quality, flexibility and rugged durability. In short: all the tools you need to create a stunning live experience, in a single compact and roadworthy housing.

Powerful features, easy operation

  • Modular card-based design
  • Interlinking of S3-4K chassis allows expansion of inputs, outputs or layers
  • Easy set-up with the cross-platform Event Master Toolset, providing a step-by-step approach to system configuration
  • Using the same modular cards as the E2, the S3-4K is serviceable in the field and ready for future signal interfaces
  • Dual, redundant power supplies for maximum peace of mind
  • Widescreen blending support

Specifications

Genlock Analog reference input/loop on BNC connectors; bi-level and blackburst at SD and tri-level at HD
S3D Sync: 4x input Din connector, 2x output Din connector
Program output

4 program outputs configurable as single screens or tiled/blended widescreens

  • Configurable from 4X 2048X1200@60 max to 1 x 4096x2400@60 max
  • Independent edge blending/feathering control for all four sides
Scaled Aux outputs User definable from 4 x 2048x1200@60 to 1 x 4K@60
Output color correction
Mixers
  • Native resolution background mixer per output screen
  • Independent layer transitions or full Preview/Program transition
  • Flexible layer allocation – 4 mixable or 8 single scalable PIP/key layers assignable to any Program output screen
Video inputs

12 inputs via 3 input cards (Event Master series cards)

  • Up to 3 x 4K inputs - each input card supports up to 4K@60p
  • 4 x SD/HD/3G SDI
  • 4 x HDMI 1.4a (297 Mpix/sec max)
  • 4 x DisplayPort 1.1 (330 Mpix/sec max)
Video outputs

10 outputs via 3 output cards (Event Master series cards)

  • Up to 2x 4K outputs - each output card supports up to 4K@60 p
  • 4 x SD/HD/3G SDI
  • 4x HDMI 1.4a (297 Mpix/sec max)
  • 2 x HDMI 1.4a for Multiviewer (297 Mpix/sec max)
Still stores Up to 100 HD stills available in background, Aux or PIP
Layer effects
  • Borders (hard, soft, halo) and drop shadows
  • Color effects
  • Strobe, H&V flip
  • Luma key
  • PIP moves via Keyframes
Multiviewer
  • Flexible user-definable layouts
  • Monitor all Inputs and Outputs, including Preview and Aux
  • Two outputs
  • Dedicated hardware same as E2 Event Master Processor
Expandability
  • Easily expandable for larger display applications via proprietary links
  • Link units to increase available Inputs and Outputs for larger tiled/blended widescreen applications
  • Expansion via simple linking - up to 4 chassis
  • S3-4K ships with the ability to link 2 chassis for expansion. Linking up to 4 chassis will be available in a future software release.
HDCP HDCP compliant
Control
  • Event Master screen management software for PC or MAC
  • Ethernet RJ-45, 1000/100/10 Mbps autosense
Serviceability
  • Field-Serviceable I/O and processing cards (not hot-swappable)
  • Hot-swappable dual-redundant power supplies
Dimensions
  • Height: 13.26 cm (5.22 in) - 3 rack mount units
  • Width: 43.2 cm (17 in) without chassis handles, 48.3 cm (19 in) with chassis handles attached
  • Depth: 54 cm (21.33 in) overall
Weight 24 kg / 53 lbs
Power
  • Input power: 100-240 VAC 50/60Hz 700W
  • Dual-redundant, hot-swappable power supplies; same as E2 Event Master processor
Environmental temperature 0-40° C / 32-104 F
Environmental humidity 0-95% non-condensing
Warranty 3 years parts and labor

Accessories

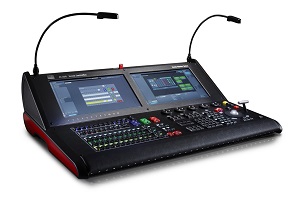

EC-200 Controller
R90044771 Barco EC-200 Controller
*
Barco EC-50
R9004772 Barco EC-50 Compact Controller
*
  • 3G-SDI Output Card
  • DisplayPort 1.2 Output Card
  • Dual Link DVI Input Card
  • Expansion Link Card
  • HDMI 1.4 Output Card
  • HDMI + DisplayPort Input Card
  • SDI Input Card
  • Event Master 4K60 Tri-Combo Input Card
  • S3 VPU Card
  • Event Master 4K60 Tri-Combo Output Card
