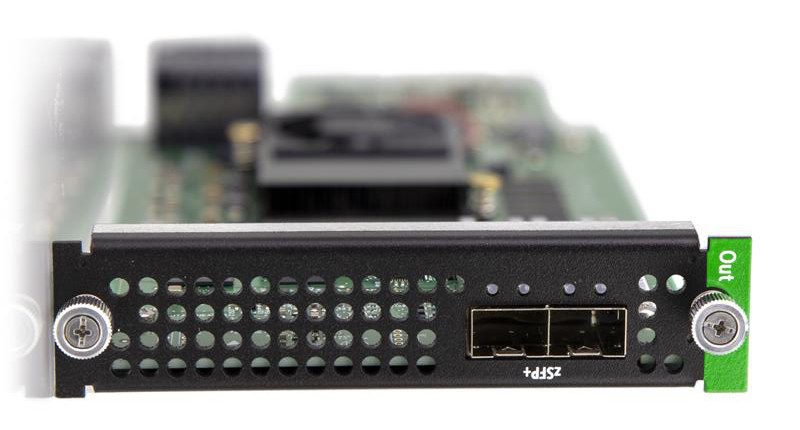

Barco R9004766

Event Master Fiber Output Card
Item #0602-2584 Model #R9004766

Features

Barco R9004766

Event Master Fiber Output Card

Many of today’s events and installations use fiber to transmit signals relying on external fiber extenders that lead to growing costs. With native 4k60p processing, the fiber output card eliminates the need for external fiber extenders using 12G, 6G and 3G signal formats.

The fiber output card is designed using proven robust broadcast standards supporting SMPTE 297M for Optical Fiber SDI. Combining the fiber output card with Barco UDX projectors eliminates the need for external converter boxes in your installation saving both time and money.

Features:
  • Integrated fiber extender
  • 4k@60p with optical fiber output using SFP+
  • Standards based fiber extension using SMPTE 297M for Optical Fiber SDI
  • Supports up to (1) 12G, (1) 6G or (2) 3G outputs
  • Mirrored 4k@60 output for redundancy
  • Support for output rotation of 90, 180, or 270 degrees
  • Rugged modular design
  • Transceivers/SFP Modules sold separately

Specifications

Connectors 2x SFP+ (transceivers/SFP modules sold separately)
Resolution Up to 1x 4096x2160p60 or 2x 1920x1080p60
Color depth 8-bit; 10-bit
Color sampling 12G-SDI up to UHD@60p 4:2:2 10-bit
HDCP not supported
Signal capacity 12G/6G/3G SDI
Features Rotation and splitter mode
