WolfVision vSolution Cynap

Collaboration Appliance
Part #: 0603-2200    Mfr #: CYNAP

WolfVision vSolution Cynap


ll formats. All locations. All devices.

The WolfVision Cynap System is a unique knowledge sharing solution, which enables users to utilize presentation content material of all types, from an almost unlimited range of both digital and physical sources. Cynap features comprehensive ‘bring your own device’, recording, streaming, and media player functionality, and it provides an effective solution when used either with or without a connected Visualizer.

Cynap can play, display, record, and stream all commonly used media simultaneously, giving incredible versatility during meetings, lectures, and collaborative sessions. Information is easily available, whether stored locally, in the cloud, or on a USB stick.

It is an ideal system for inspiring engagement, interaction, and collaboration, in both education and business environments.

Because knowledge matters – to all of us!



System Specifications
Memory  8GB
Internal storage
Output resolutions Up to 4K UHD: 2160p60 (4.2.0), 2160p30 (4.4.4), 1080p60 (4.4.4), 1080p30 (4.4.4)
PC/Mac operating system support  Windows, OS X (vSolution Link admin tool)
Compatible mobile device operating systems  iOS, Android, Windows Phone 8
Supported apps  vSolution Capture, vSolution Connect, vSolution Cast, vSolution Control
Supported image file formats  GIF, JPEG, BMP, PNG
Supported document file formats  PDF, Word, PowerPoint, Excel
Supported video file formats  AVI, WMV, MOV, MP4, DivX, MKV, M4V, OGV
Supported audio file formats  MP3, WMA, MKA, OGA, OGG
Supported mirroring protocols  AirPlay, Chromecast, Miracast (no HDCP support), vSolution Cast (up to 30 fps)
Max. no. of devices simultaneously displaying material on-screen  Four
Max. simultaneous receiver connections via Capture app  Virtually unlimited (dependent on network infrastructure)
Wireless device mirroring  Yes
Local streaming  Yes (Unicast/ Multicast)
Webcasting Yes, to Wowza Ustream via optional Webcasting feature pack (currently under development)
Local video recording to internal hard drive or USB stick  Yes, 1080p, 30fps
Capture agent  Yes, via optional Capture feature pack (currently under development)
Cloud services  Yes, Google Drive, Dropbox
Access to network drives  Yes
Document and media player  Yes
Whiteboard and annotation  Yes
Presentation modes  Protected Mode, Open Mode
On-screen content arrangement modes  Dynamic, Fixed
Web conferencing  Integrated WebRTC solution
Dual screen mode  Yes
Integrated web browser  Yes
Customizable background image  Yes

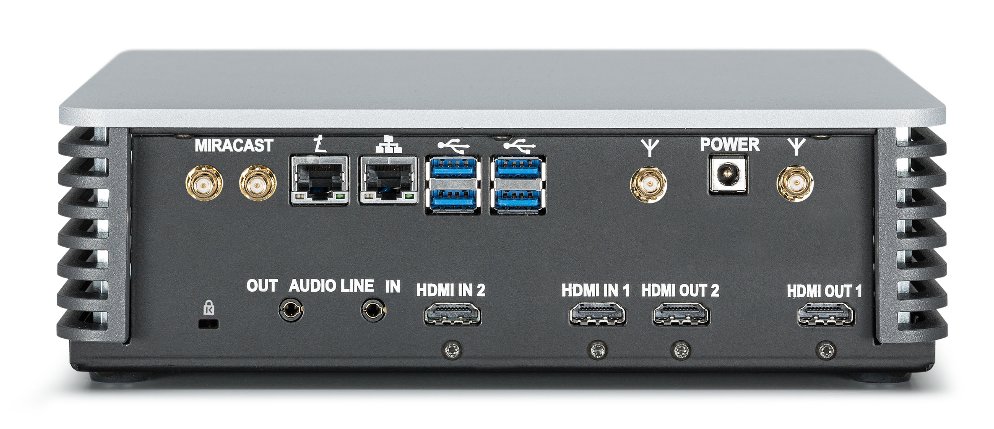

Video inputs  2 HDMI 2.0
Video outputs  2 HDMI 2.0
Audio  3.5mm Stereo In/Out
USB ports  4 rear USB 3.0 ports, 2 front USB 2.0 ports
Network Connectivity
Wi-Fi standards  802.11 ac/a/b/g/n
WiFi Bands  2.4 and 5GHz
Data rate  Wireless up to 900Mbps
Network protocols  TCP/IP, FTP, HTTP, SNTP/NTP
IP configuration  DHCP, Static
Security encryption  WEP, WPA, WPA Enterprise
Max. wireless coverage  Environment dependent
Ethernet/LAN port - 1GigE  Yes
Ethernet/LAN default settings  IP address, Subnet mask, Default gateway, DNS server
External controlling Remote control, web interface, Visualizer, multi-touch display, gyro sensor gesture control, room control system, keyboard and mouse, device status display
HDCP support Yes (HDCP 1.4)
Power Requirements  Max. power consumption 105W
Dimensions (L x W x H) 245mm x 245mm x 79mm (9.65inch x 9.65inch x 3.1inch)
Mount Optional 19" rack unit mounting frame, under desk mount
Included accessories 1x Remote control, 1x power supply, 4x antennas, 1x HDMI cable, 1x LAN cable, 1x quick guide
Country of origin Austria
Limited Warranty USA 1 year, optional extension up to 5 years
