Keewin 55" IP66 Menu Board for drive-thru, Android 7.1

Item #0604-1036

Overview

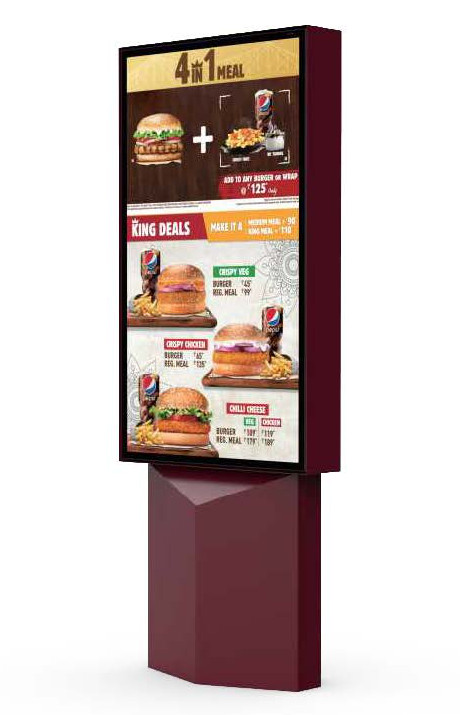

Keewin Digital Drive-Thru Menu Kiosk

This Keewin outdoor kiosk features a 55" (diagonal) display with Full HD resolution and AG coated glass for enhanced visibility. With a high brightness of 4000 nits (6000 nits at peak), the monitor is readable even in direct sunlight.

In addition, the IP66 rating guarantees a fully enclosed sealed system that can be used outdoors in all types of weather, without the need for ventilation with outside air.

Easy to upgrade, install, and transport, this high brightness digital kiosk is ideal as a drive-thru menu board, or for use at a gas station or car wash.

There are no better protected displays than Keewin's IP 66 High Brightness Displays. With an entirely enclosed design, the IP 66 High Brightness Display is the answer to any commercial display need in unforgiving environments.

Specifications

Panel

Size (diagonal) 55 inches
Active Display Area (H x V)

26.9" x 47.7" (682 x 1211 mm)
Resolution

1920 x 1080
Aspect Ratio 16:9
Brightness

4000 (typical) / 6000 (peak) nits
Backlight Adjustment

Automatic (Ambient Light Sensor)
Viewing Angle

178°/178°
Backlight Type

Full Array Local Dimming LED
Operation Life

50,000 hours

Mechanical

Dimensions (W x H x D)

29.3" x 75.3" x 12.8" (744 x 1913 x 325 mm)

Net Weight

 287 lb (130 kg)

Enclosure Material

Galvanized Steel + Aluminum

Finish

Zinc Powder Coating + Fine Grain Powder Coating
Color

Black (Ral 9005)
Glass

AG Coating Tempered Glass, Back Painted Pantone Black C

Power

AC Input

100~240 VAC ±10%, 50/60 Hz

Power Consumption

 330 W

Media

OS

HDMI (x1), 480i, 480p, 720p, 1080i, 1080p

Environmental

IP Rating

IP 66 (Display unit)

Operating Environment

Fully Outdoor

Operating Temperature

-22°F ~ 122°F (-30°C ~ 50°C)

Operating Humidity

5% ~ 98%

Operating Altitude

≤ 6562 feet (≤ 2000 m)

Optional

  • Android
  • Computer
  • Camera
  • Speaker
  • NFC
  • RFID
  • Ultrasonic sensor
