Keewin 55" Indoor Dual Sided, 700 nits, Android
Overview

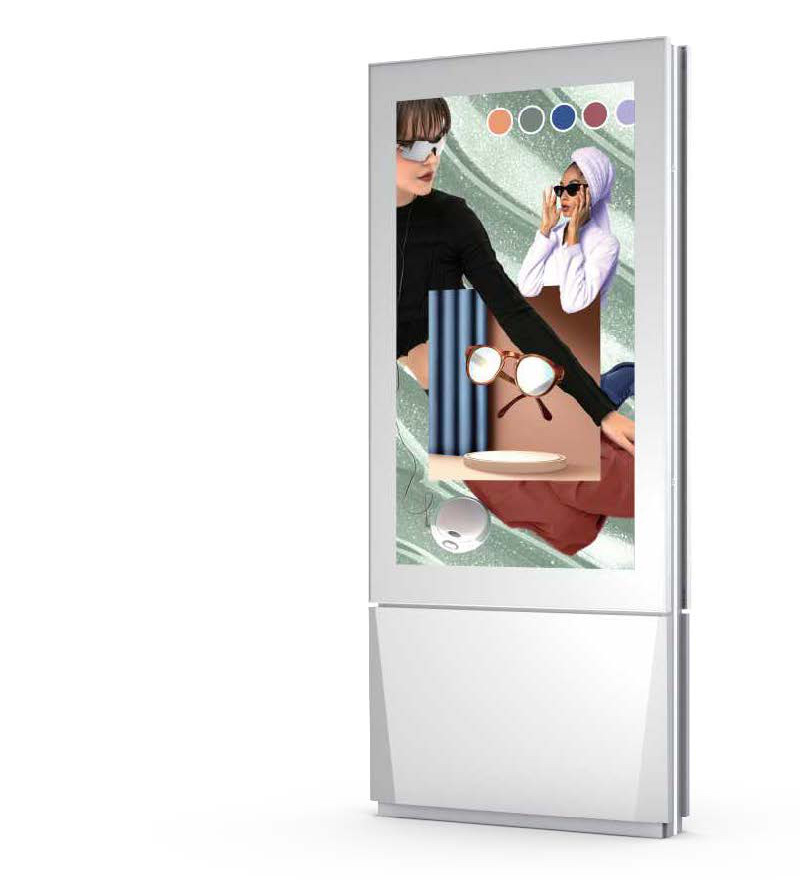

Keewin 55" 4K Indoor Dual-Sided Kiosk
This Keewin indoor kiosk includes two back-to-back 55" (diagonal) LCD displays with 4K resolution. Featuring 700 nits of brightness, it's ideal for a variety of professional applications, from advertising to information boards.
The optional Remote Diagnostics System provides remote monitoring of parameters such as ambient temperature, ambient humidity, display front-face activity, and more.
Specifications
Panel
| Size (diagonal) | 55 inches |
| Active Display Area (H x V) |
26.8" x 47.6" (680 x 1210 mm) |
| Resolution |
3840 x 2160 |
| Aspect Ratio | 16:9 |
| Brightness |
700 nits |
| Viewing Angle |
178°/178° |
| Backlight Configuration |
Direct LED |
| Operation Life |
50,000 hours |
Mechanical
|
Dimensions (W x H x D) |
33.5" x 78.0 x 6.5" (850 x 1980 x 165 mm) |
|
Net Weight |
419 lb (190 kg) |
|
Enclosure Material |
Aluminum + Steel |
| Finish |
Brushing (Aluminum) + High Gloss Coating (Steel) |
| Color |
White (Ral 9003) |
| Glass |
Tempered Glass, Back Painted Pantone White C |
Power
|
AC Input |
100~240 VAC ±10%, 50 to 60 Hz |
|
Power Consumption |
400 W |
Media
|
HDMI Input |
HDMI (x2), 480i, 480p, 720p, 1080i, 1080p, 2160p |
Environment
|
Operating Environment |
Indoor |
|
Operating Temperature |
32°F ~ 104°F (0°C ~ 40°C) |
|
Operating Humidity |
10% ~ 80% |
|
Operating Altitude |
≤ 6562 feet (≤ 2000 m) |
Optional
- Touch
- Android
- Computer
- Camera
- NFC
- RFID
- Ultrasonic sensor
Optional Features
Keewin Surveillance Application is a Remote Diagnostics System for the remote monitoring of digital displays. The system monitors parameters such as:
- Ambient Temperature
- Ambient Humidity
- Display Front-Face Activity
- Impact Alarm
- Flood Alarm
- Smoke Alarm
- Heater Status
- 12V Power Supply Status
- Fan Input Voltage
- Fan Status
- Door Open / Close
- Fan Control
- Auto-Control AD Board Power Supply
