Keewin 65" IP66 Dual Sided 4K Touch, Android, 2500 nits
Features
Keewin HyperTouch 65

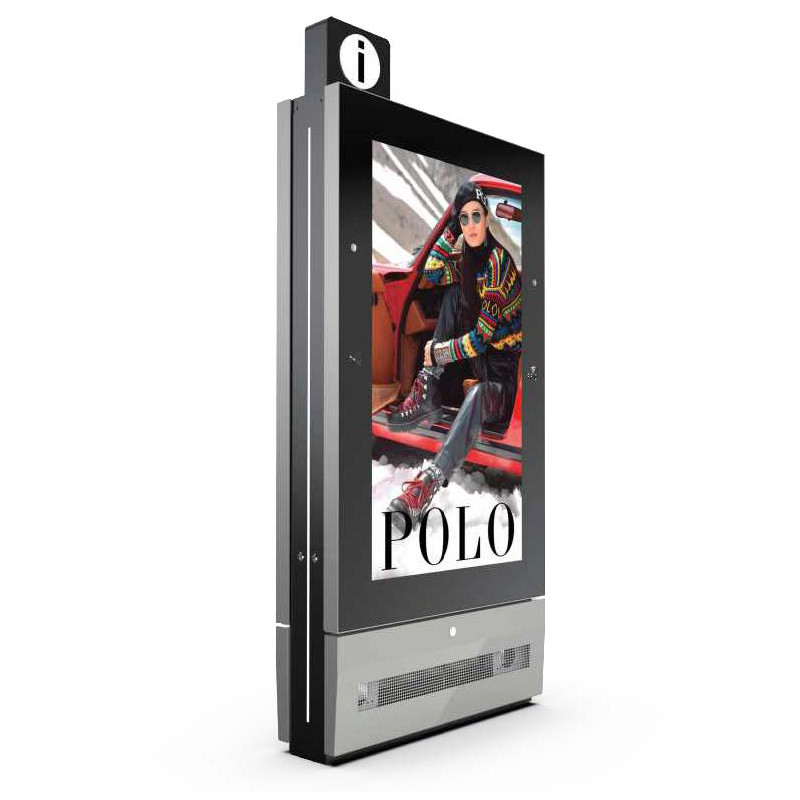

Outdoor 65" Dual-Sided High-Brightness 4K Touch Kiosk
The Keewin HyperTouch 65 consist of two back-to-back 65" (diagonal) LCD touchscreen monitors mounted vertically into a kiosk. With a high brightness of 2500 nits, these monitors are readable even in direct sunlight. In addition, the IP66 rating guarantees a fully enclosed sealed system that can be used outdoors in all types of weather, without the need for ventilation with outside air.
This outdoor kiosk doesn't require additional waterproofing or cooling measures, making it ideal for a variety of professional applications, from advertising to information boards. In addition, the HyperTouch 65 comes equipped with a touch panel that supports the reading of up to 10 simultaneous touch points.
An optional Remote Diagnostics System provides remote monitoring of parameters such as ambient temperature, ambient humidity, display front-face activity, and more.
There are no better protected displays than Keewin's IP 66 High Brightness Displays. With an entirely enclosed design, the IP 66 High Brightness Display is the answer to any commercial display need in unforgiving environments.
Key Features
- High Brightness
- 10-Point Touch
- IP66 Rating
- Monitoring System
Specifications
Panel (x 2)
| Size | 65 inches |
| Active Display Area (H x V) |
56.2" x 31.6" (1428 x 803 mm) |
| Resolution |
3840 x 2160 |
| Aspect Ratio | 16:9 |
| Brightness |
2500 nits |
| Backlight Adjustment |
Automatic (Ambient Light Sensor) |
| Viewing Angle |
178°/178° |
| Backlight Configuration |
Direct LED |
| Operation Life Cycle -mtbf |
50,000 hours |
Mechanical
|
Dimensions (W x H x D) |
43.3" x 94.1" x 11.8" (1100 x 2390 x 300 mm) |
|
Net Weight |
TBD |
|
Enclosure Material |
Galvanized Steel |
|
Finish |
Zinc Powder Coating + Fine Grain Powder Coating |
| Color |
Black (Ral 9005) + Gray (Ral 7038) |
| Glass |
Tempered Glass, Back Painted Pantone Black C |
| Touch | 10-point touch |
Power
|
AC Input |
110 / 220 VAC , 50 / 60 Hz |
|
Power Consumption |
1250 W |
|
Lightning Protection Grade |
Class C |
|
Leakage Protection |
30mA, 0.1S |
Media
|
HDMI in |
x 2 |
Environmental
|
IP Rating |
IP66 |
|
Operating Environment |
Fully Outdoor |
|
Operating Temperature |
-4°F ~ 122°F (-20°C ~ 50°C) |
|
Operating Humidity |
5% ~ 98% |
|
Operating Altitude |
≤ 6562 feet (≤ 2000 m) |
Optional Features
Keewin Surveillance Application is a Remote Diagnostics System for the remote monitoring of digital displays. The system monitors parameters such as:
- Ambient Temperature
- Ambient Humidity
- Display Front-Face Activity
- Impact Alarm
- Flood Alarm
- Smoke Alarm
- Heater Status
- 12V Power Supply Status
- Fan Input Voltage
- Fan Status
- Door Open / Close
- Fan Control
- Auto-Control AD Board Power Supply
