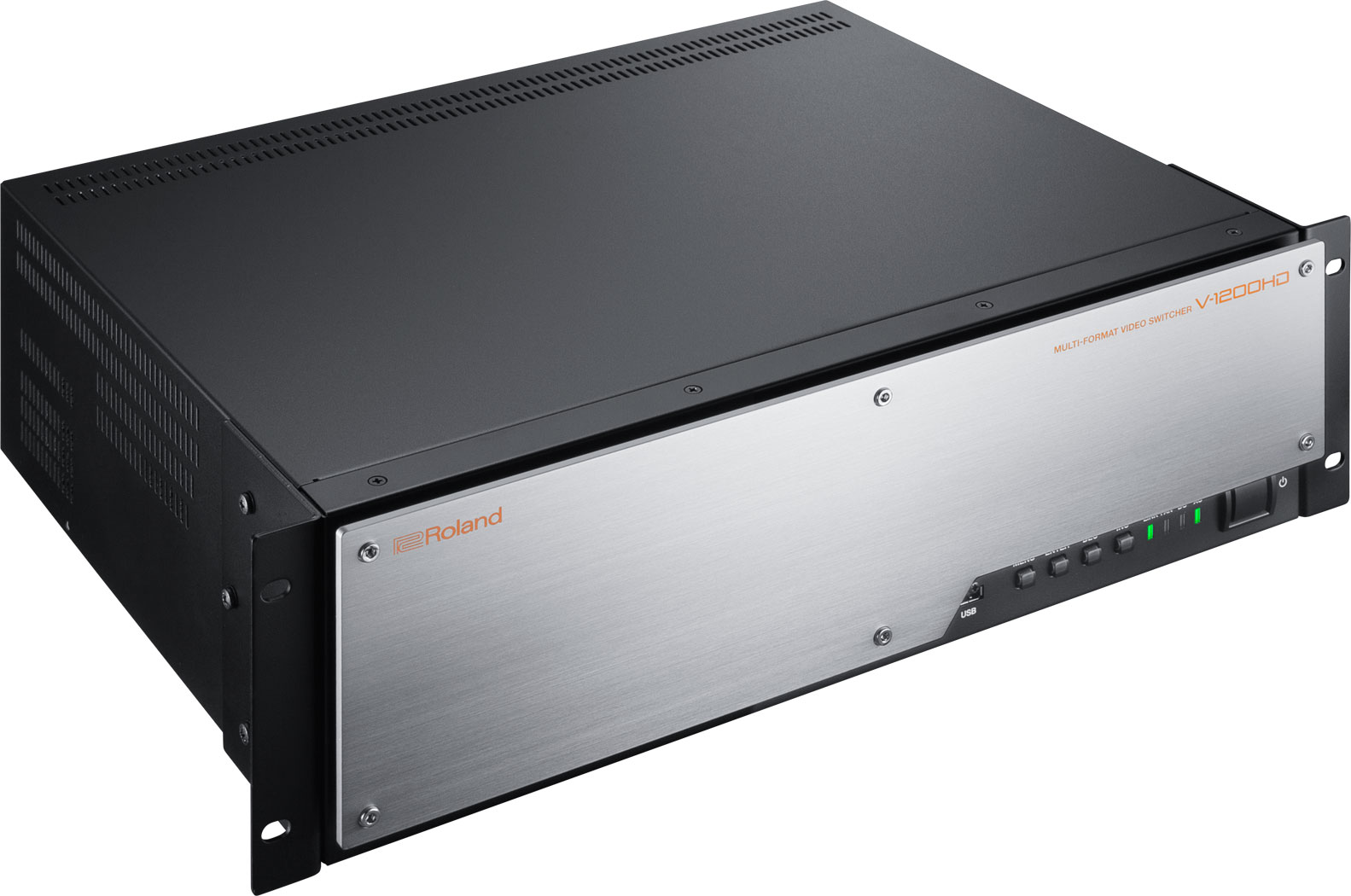

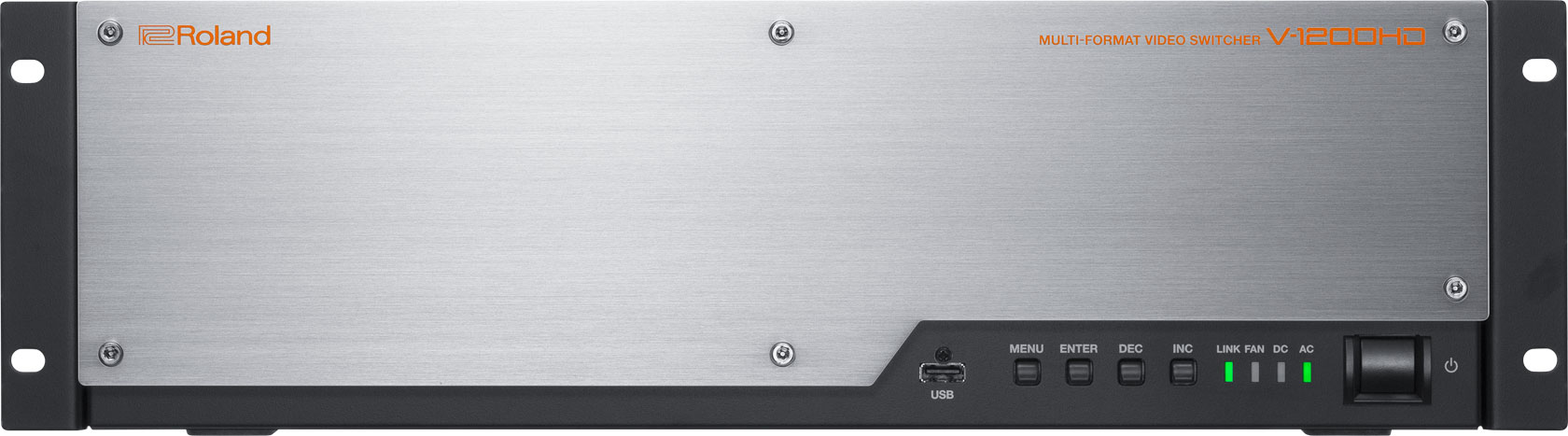

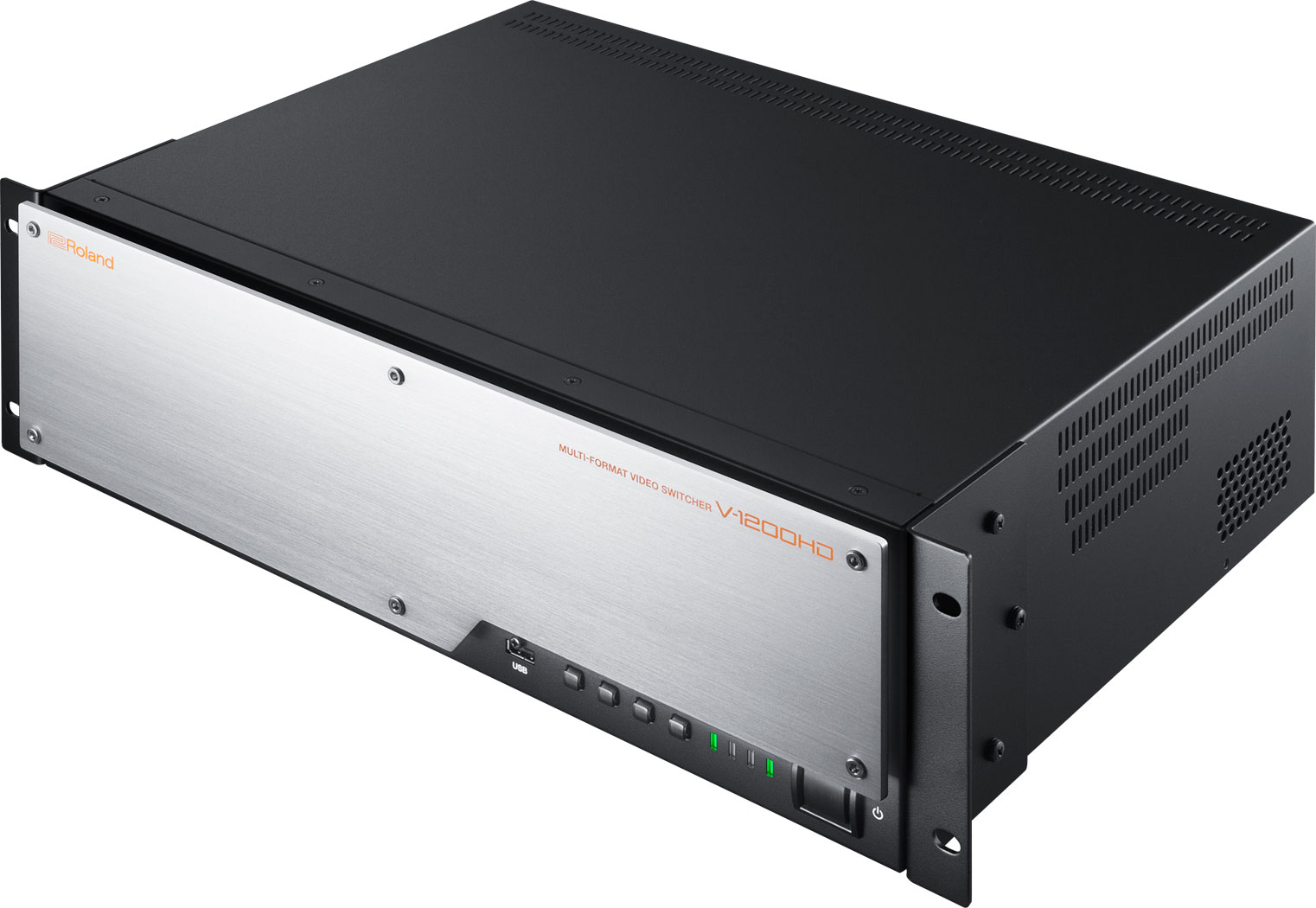

Roland V-1200HD

Multi-Format Audio/Video Switcher, 10 SDI and 4 HDMI inputs, 6 SDI and 2 HDMI outputs, up to 92 Inputs/Outputs 16-channel audio mixer
Part #: 0615-0120    Mfr #: V1200HD

Roland V-1200HD

Features

Hybrid Engine 2 M/E Switcher and Processor for Broadcast and Live Events

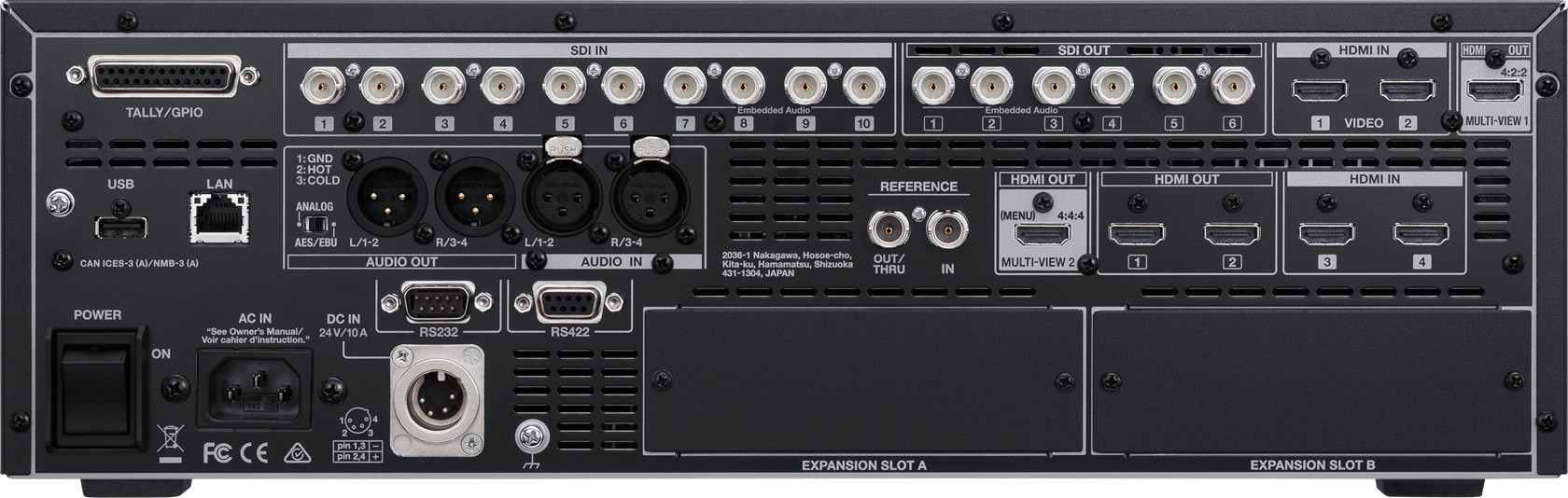

The Roland V-1200HD Multi-Format Video Switcher is a 2 M/E switcher featuring a new 4:2:2 / 4:4:4 Hybrid Engine that combines the features of a production switcher with the power of a presentation switcher. Multiple M/E configurations can be selected from 1 M/E, 1.5 M/E and 2 M/E to meet the needs of your production. Inputs include 10 3G SDI and 4 HDMI with 6 3G-SDI Outputs and 2 HDMI outputs. Scalers on HDMI inputs 3 & 4 and HDMI outputs support SD, HD and VESA resolutions. Switch using the V-1200HDR Control Surface or free downloadable Remote Control Software (RCS). The video inputs and the powerful built-in 16-channel audio mixer can be expanded with XI-Series video and audio expansion cards. An intuitive user interface with assignable cross-points and on screen names ensures maximum flexibility for and live production or broadcast.

The V-1200HD may be controlled from a PC with provided software.  The V-1200HDR control surface seen in the video may be purchased separately or included in the V-1200HD-SYS package.
