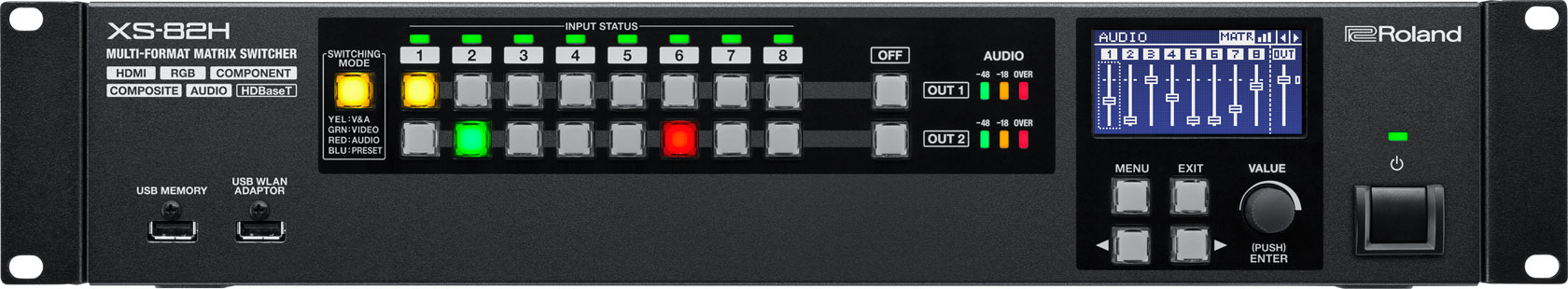

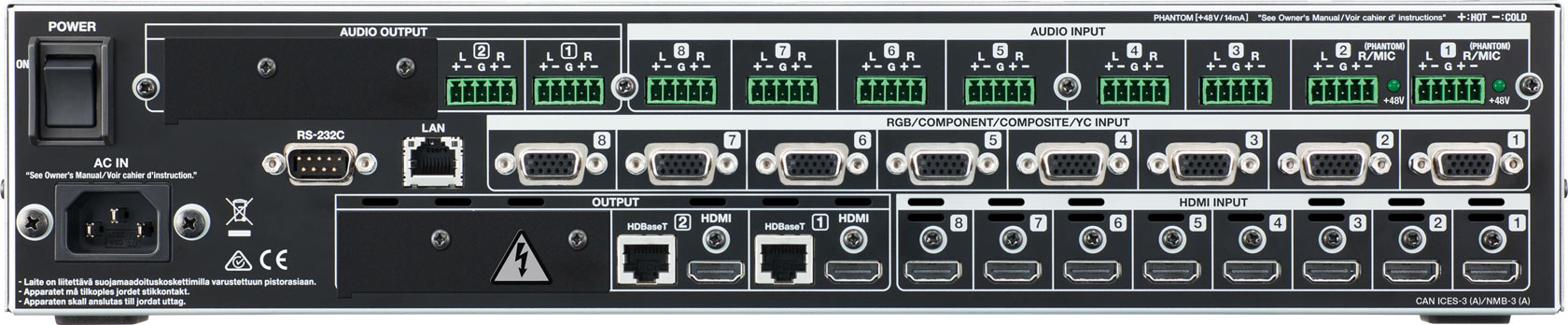

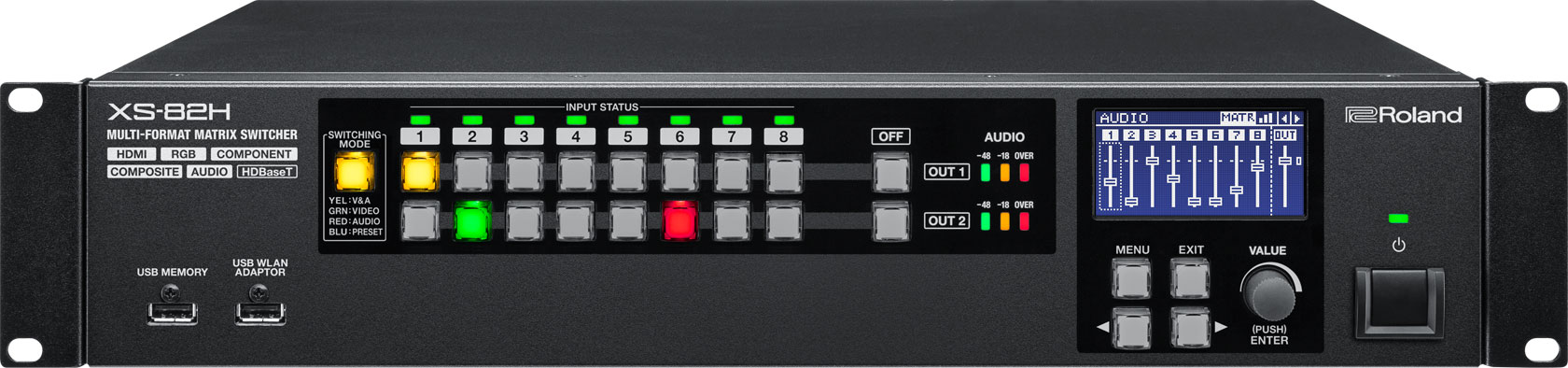

Roland XS-82H

8x2 Multi-Format AV Matrix Switcher
Part #: 0615-0130    Mfr #: XS82H

Roland XS-82H


XS Series AV Matrix Switchers Version 3.0

The Roland XS Series Multi-Format Matrix Switchers are designed for fixed installations requiring high-quality integrated video and audio conversion and switching.

The series is very adaptable supporting eight HDMI, RGB/Component/S-video/Composite inputs and up to four HDMI or HDBaseT outputs with scalers to support picture-in-picture, resizing, rotating, and flipping. Audio can be embedded into outputs via eight stereo audio inputs (2 microphone) and/or HDMI audio as well as de-embedded on output. Additional features include iPad control, EDID emulation and HDCP management.

The XS Series is available in three configurations: 8-in x 4-out (XS-84H), 8-in x 3-out (XS-83H), and 8-in x 2-out (XS-82H) and is ideal for many applications that include board rooms, education, 4K switching to 1080p, performing art centers, churches, convention centers and teleconferencing.

  • Set-up and switching from a PC or Mac using the XS-80HRCS app
  • Independently scaled outputs
  • Seamless switching
  • Accommodate HDMI/HD component/RGB/composite/S-video and audio inputs
  • 16ch stereo digital audio mixer with 8 HDMI inputs and 8 analog inputs
  • Switching and mixing of audio inputs with EQ and dynamics
  • Digital audio effects
  • EDID emulation
  • Live Switching Control
  • Audio Setting Screens
  • Built–in scalers and video processor enable split-picture and compositing function
  • Enhanced control of settings of PinP windows in multi-mode
  • Video signals can be flipped vertically and horizontally, or rotated 90 degrees
  • Confident switching for live events with enhanced PGM/PST Modes
  • Guide Function
  • Switch multiple outputs at the same time
  • Bezel Compensation
  • Still-images/Capture Function
  • Control of Power ON/OFF an external device via HDbaseT
  • Powerful multi-screen processing capabilities
  • Support for maximum resolution of WUXGA and 1080p
