Overview

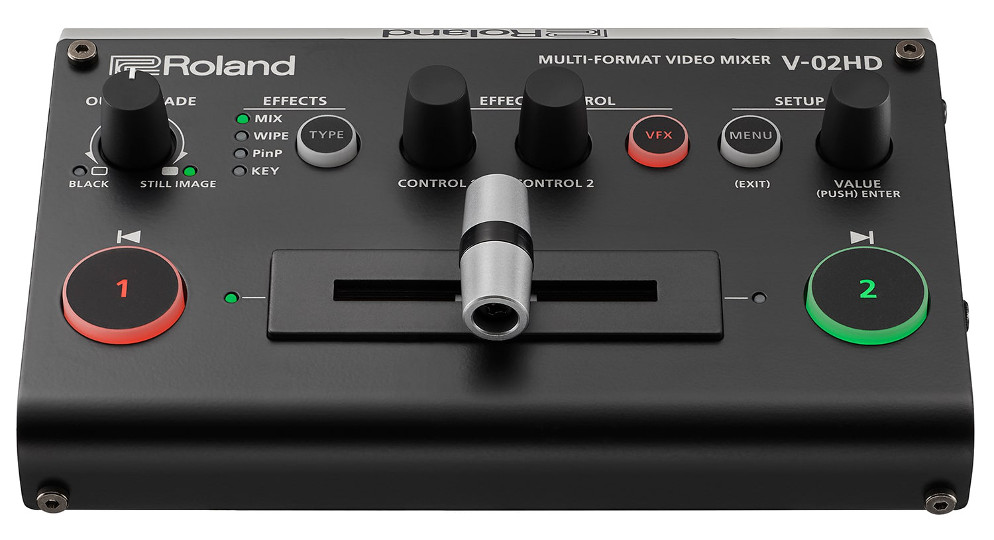

Roland V-02HD

Multi-Format Video Mixer and HDMI Micro Switcher

Events or productions often bring serious challenges that are easily solved — if you have the right equipment. Roland’s versatile V-02HD multi-format video mixer replaces several standalone units: a simple switcher, high-quality scaler, input expander, audio solution, and inline video effects/composition.

With the v1.20 update, the V-02HD receives technology-assisted automatic switching mode, while shared input lets you capture a wide shot and close up with a single camera. More input/output resolutions and frame rates, including the popular 1080/24p, are now available.

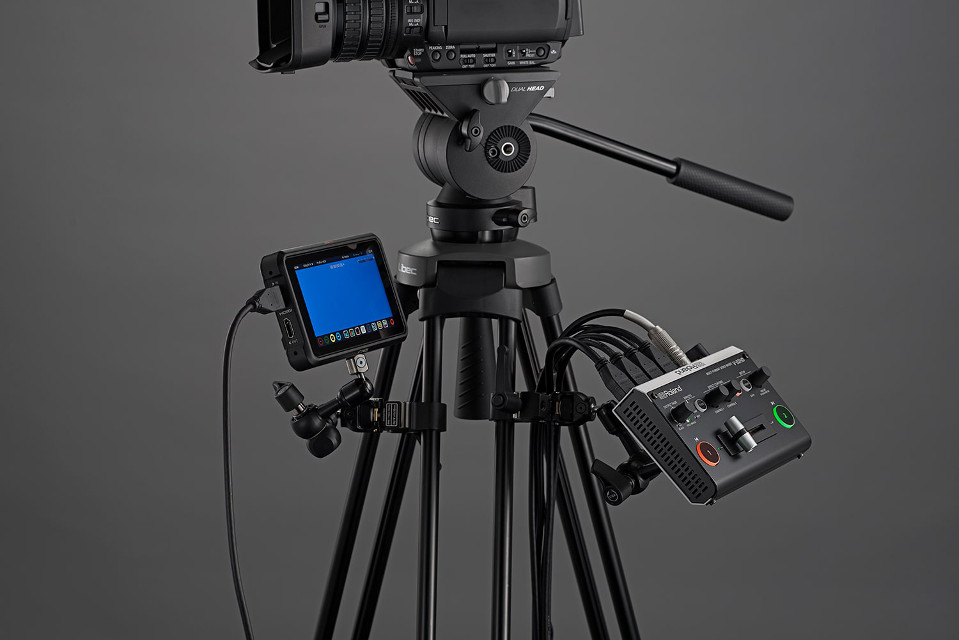

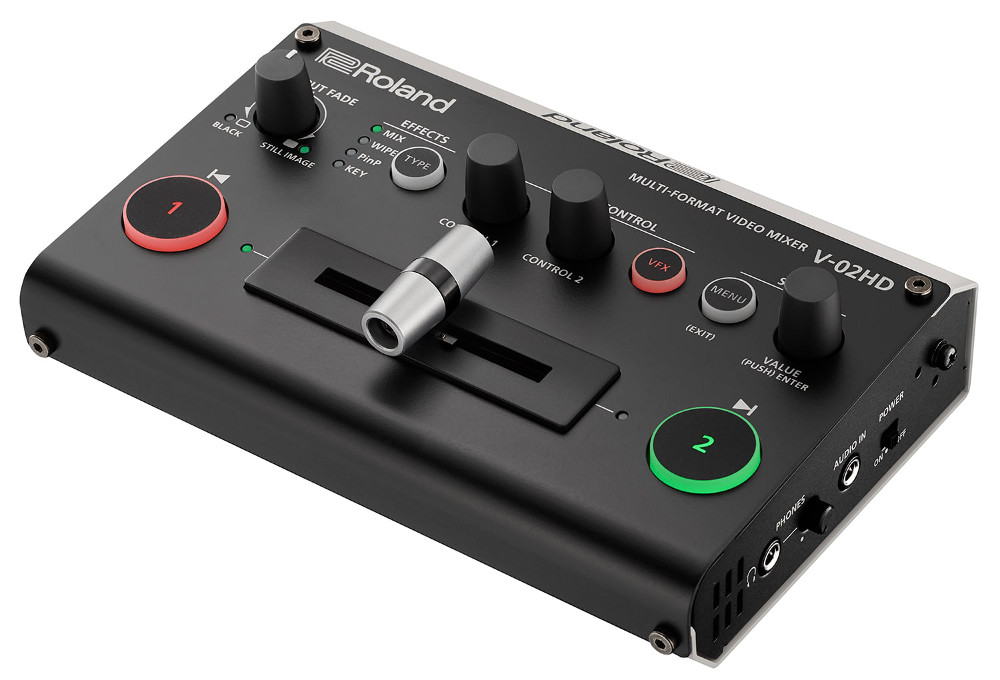

The V-02HD is a "micro switcher" that’s small enough to fit into equipment cases and camera bags. Designed to integrate with typical video production workflows, the V-02HD has a screw tap for standard video mounts and conveniently attaches onto a tripod to stay out of the way. Its lightweight design makes it ideal for mobile video applications too, especially when hooked up to third-party battery packs for longer location-based shoots.

V-02HD — The video production problem-solver

Save on space and headaches by packing a V-02HD, the portable-yet-powerful device that lets you concentrate on producing your event or shooting your scenes, rather than trouble-shooting your gear.

Features

  • Dual camera/single operator productions: transforms a two-camera shoot into a small one-person production studio, for reliable recording or live-streaming, even with minimal resources.
  • Simple, seamless switching: ensures a professional cross-dissolve switchover between computers and screens, maintaining hi-res "pixel-accurate" display resolution with deep 10-bit 4:4:4 color space.
  • Input/output matchmaker: takes SD, HD, and computer resolutions, resizes them to fit the display, then outputs in a new resolution that’s compatible with the receiving device, thanks to both input and output scalers.
  • Ability to both embed and de-embed: lets you embed analog audio into an HDMI signal — for recording or live streaming — as well as extract the audio from an HDMI signal to send over to a larger dedicated audio mixer.
  • Onboard toolkit for fixing your audio (including inline HDMI signals): offers three-band EQ and dynamics onboard, to immediately optimize your audio without sending to an external mixing desk. A built-in effects library is packed with presets for common production scenarios including interviews, ambient sound recording, and eliminating wind noise when filming outdoors.
  • Lets you add one more input: With two extremely low latency inputs, the V-02HD provides that prized additional connection without adding any perceptible delay to camera inputs. And with high-resolution 10-bit 4:4:4 color space, there’s no signal degradation.
  • Time-saving, professional-looking effects: incorporates 14 visual effects that can be applied in real-time (such as blurring a person's face) with adjustable parameters to fine-tune the results. In addition, 5 composition effects let you add titles, use a green screen with the Key effect, or create a separate inset window with the PinP capability.
  • Emergency still image: can load a still image to be displayed in an emergency, such as input source failure or presenter delays.
  • Dedicated remote control app: turns your iPad into a gorgeous touch interface for the V-02HD, letting you access its switching functions, mixing audio with virtual faders, changing settings and effect parameters quickly, and creating up to 8 custom scenes for fast setup changes using preset memories. You can also save and restore V-02HD system settings using the Remote Control Utility.

Specifications

VIDEO
Video Processing 4:4:4 (Y/Pb/Pr), 10-bit

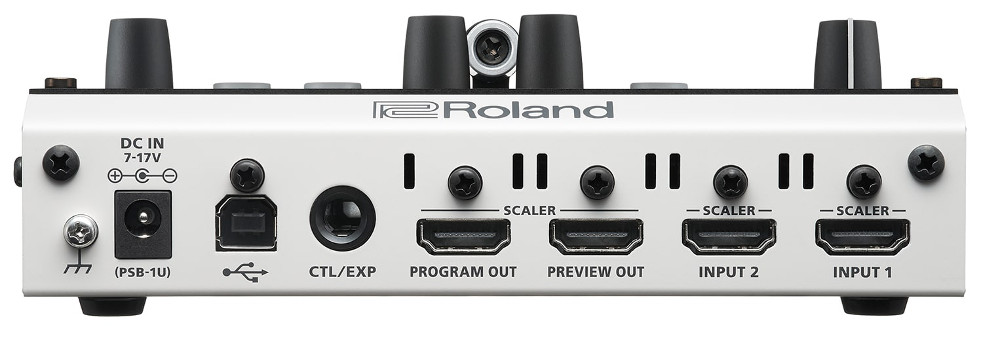

Input Connectors INPUT 1--2: HDMI type A x 2
* HDCP Supported
* Multi-format Supported
Output Connectors PROGRAM OUT: HDMI type A
PREVIEW OUT:  HDMI type A
* HDCP Supported
* Multi-format Supported
Input Formats 480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *¹
576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *²
1080/23.98p, 1080/24p
VGA (640 x 480/60Hz), SVGA (800 x 600/60Hz), XGA (1024 x 768/60Hz)
WXGA (1280 x 800/60Hz), SXGA (1280 x 1024/60Hz)
FWXGA (1366 x 768/60Hz), SXGA+ (1400 x 1050/60Hz)
UXGA (1600 x 1200/60Hz), WUXGA (1920 x 1200/60Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking
* The input interlaced video signal is converted to progressive video signal by internal processing.
*¹ FRAME RATE = 59.94 Hz
*² FRAME RATE = 50 Hz
Output Formats 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p *¹
576/50p, 720/50p, 1080/50i, 1080/50p *²
SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
WXGA (1280 x 800/60 Hz), FWXGA (1366 x 768/60 Hz)
SXGA (1280 x 1024/60 Hz), SXGA+ (1400 x 1050/60 Hz)
UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
HD (1280 x 720/60 Hz), FHD (1920 x 1080/60 Hz)
* Conforms to VESA DMT Version 1.0 Revision 11.
* The output refresh rates of 800 x 600--1400 x 1050 are 75 Hz when the unit’s frame rate setting is 50 Hz.
* 1920 x 1200/60 Hz: Reduced blanking
*¹ FRAME RATE = 59.94 Hz
*² FRAME RATE = 50 Hz

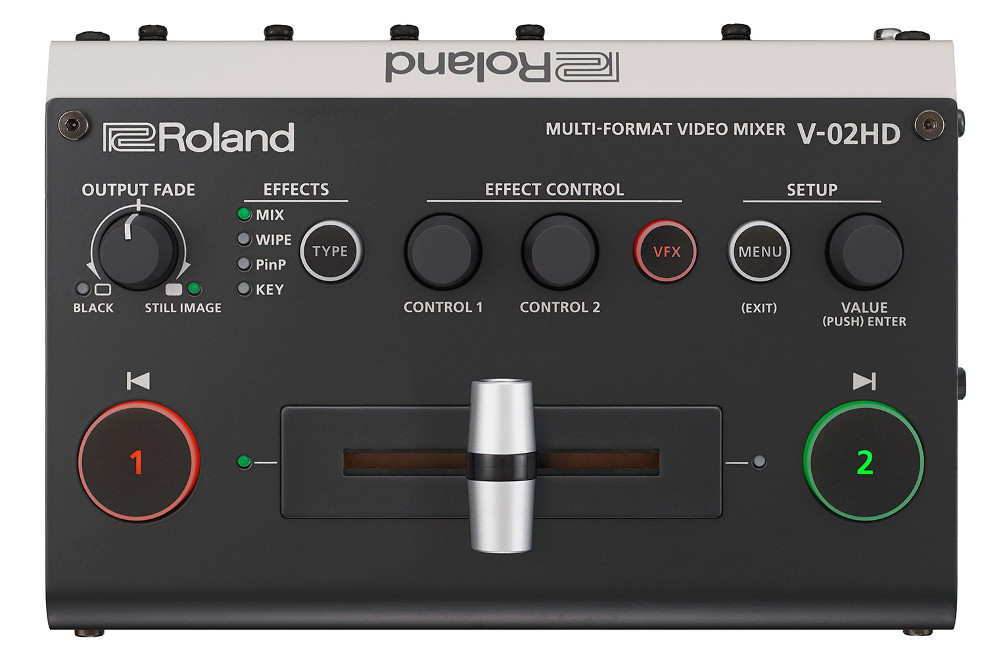

Video Effects Transition: CUT, MIX (DISSOLVE), WIPE (9 types)
Composition: PinP (RECTANGLE, CIRCLE, DIAMOND), KEY (Luminance Key, Chroma Key)
Visual Effects (14 types): MOSAIC, WAVE, RGB REPLACE, COLORPASS, NEGATIVE, COLORIZE, POSTERIZE, SILHOUETTE, EMBOSS, FIND EDGES, MONOCOLOR, HUE OFFSET, SATURATION OFFSET, VALUE OFFSET
Others: Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output
AUDIO
Audio Processing Sampling rate: 24 bits/48 kHz
Audio formats Linear PCM, 24 bits/48 kHz, 2 ch

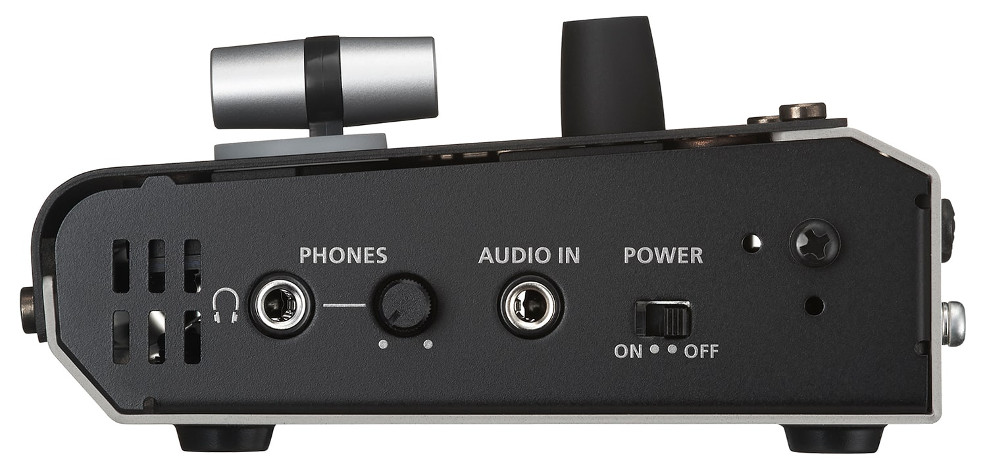

Input Connectors INPUT 1--2: HDMI Type A x 2
AUDIO IN: Stereo miniature type
Output Connectors PROGRAM OUT: HDMI type A
PREVIEW OUT:  HDMI type A
PHONES: Stereo miniature type
Input Level AUDIO IN: -10 dBu (Maximum: +8 dBu)
Input Impedance AUDIO IN: 45 k ohms
Output Level PHONES: 92 mW + 92 mW (32 ohms)
Output Impedance PHONES: 10 ohms
Audio Effects Delay, High pass filter, Compressor, Noise gate, Equalizer, Multi-band compressor, Limiter, Test tone output
OTHERS
Other Connectors USB: USB B Type (for backup from PC, for remote control from iPad)
CTL/EXP: 1/4-inch TRS phone type
Other Functions Preset Memory (8 types)
Panel lock function
EDID Emulator
Auto Switching
Auto Input Detect
Power Supply AC Adaptor
Current Draw 1.1 A
Power Consumption 10.0 W
Operation Temperature +0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Dimensions 160 (W) x 108 (D) x 51 (H) mm
6-5/16 (W) x 4-1/4 (D) x 2-1/16 (H) inches
Weight (excluding AC adaptor) 0.6 kg
1 lbs 6 oz
Accessories Startup Guide
AC adaptor
Power cord
Cord hook
Options (sold separately) Foot switch: BOSS FS-5U, FS-6, FS-7
Expression Pedal: EV-5, BOSS FV-500L, FV-500H
