Minrray UV830S

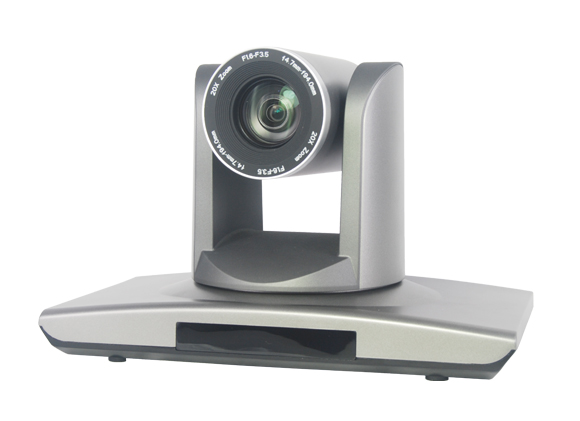

Minrray UV830 HD VTC PTZ Camera, 1080p, 20X Zoom, DVI-I, 3G-SDI
Part #: 0615-0510    Mfr #: UV830S



  • 1/2.8" HD CMOS Sensor, 1920x1080, 50/60 Hz refresh rate
  • DVI-I and 3G-SDI Outputs
  • Supported Output Formats:  1080p60/50/30/25, 1080i60/50, 720p60/50/30/25
  • 20× optical zoom
  • 128 Non-Volatile Presets
  • Field of View:  2.9° (far) - 55.4° (near)
  • RS232 Control Protocols:  VISCA, Pelco-D, Pelco-P, 115,200/2400/4800/9600 baud
  • Multiple camera addressing


Camera/Lens Parameters
Sensor:  1/2.8" high quality HD CMOS
Pixels: Dynamic image: 16:9, 2,070,000 effective pixels
Static image: 16:9, 2,100,000 effective pixels
Output Video Formats: 1080p60/50/30/25, 1080i60/50, 720p60/50
Zoom: 20x optical zoom, f=4.7---94mm
Field of View: 2.9° (far) - 55.4° (near)
Minimum Illumination: Day 0.5 Lux, Night 0.1 Lux
White balance: ATW/Auto/Manual/Indoor/Outdoor/One Push
Focus: Auto/Manual
Iris: Auto/Manual
Electronic shutter: Auto/Manual
S/N: >50dB
Video Output: DVI-I, 3G-SDI
Control interfaces 8 pin mini DIN
RS232 Format Start bit: 1; Data bit: 8; Stop bit: 1; Baud Rate: 115,200/9600/4800/2400
Power HEC3800 power jack
 General Specifications
Rotation: Tilt rotation: -30°~+90°
Pan rotation: ±170°
Manual Control Speed: Pan: 0.2-150°/sec
Tilt: 0.2-80°/sec
Preset Control Speed: Pan: 120°/sec
Tilt: 80°/sec
Color: Silver
Power Supply Adapter: 110V-220V 50/60 Hz to 12VDC, 2.5A
Input voltage: 11.5-12.5 VDC
Power Consumption: 18W Max
Storage Temperature: -10°C to +60°C
Working Temperature: 0°C to +45°C
Dimensions (W x H x W): 10.4 x 5.7 x 6.7 inches, 265 x 144 x 171 mm
Weight: 4.19 lbs, 1.9 KG
Environment: Indoor
