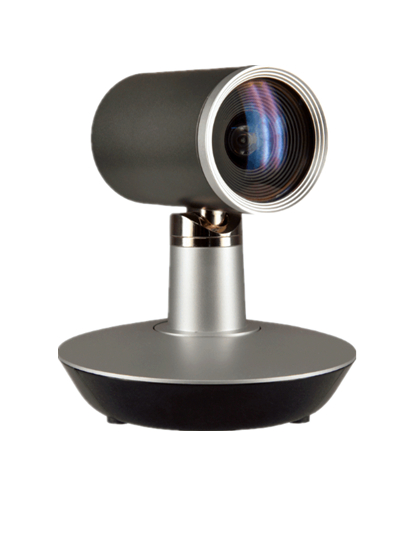

Minrray UV500-USB3.0

Virtual PTZ HD Camera
Part #: 0615-0520    Mfr #: UV500USB3.0

Features

  • Compatible with Skype™, Microsoft Lync™, Vidyo Desktop™, Cisco WebEx™, Polycom RealPresence™, Zoom™, GoToMeeting™, ClearOne Collaborate™
  • Up to 1080p Resolution at up to 60 Hz refresh rate
  • 3X Digital Zoom
  • 105° Viewing Angle
  • Auto Focus
  • Low noise Sony imager combined with 2D/3D noise reduction results in >50 dB SNR
  • USB 3.0 output
  • Supports RS232/422 control with VISCA, and Pelco P & D protocols
  • Support for Multiple Camera Addressing
  • OSD Display
  • 10 Non-Volatile Preset Memory
  • Image can be flipped to allow the camera to be mounted upside-down
  • IR Remote Included

Specifications

Sensor Properties
Sensor 1/2.3 inch high quality HD CMOS sensor
Pixels 12.4 megapixel
Resolution 1920(H) x 1080(V)
Scan mode 16:9 progressive scan
Video signal 1080p25/30/50/60, 1080i50/60, 720p50/60
Digital Zoom 3x
Horizontal View angle 105°
Minimum lux 0.5 Lux
White balance Auto/ATW/One Push/Manual
Focus Auto
Iris F2.2
S/N >50dB

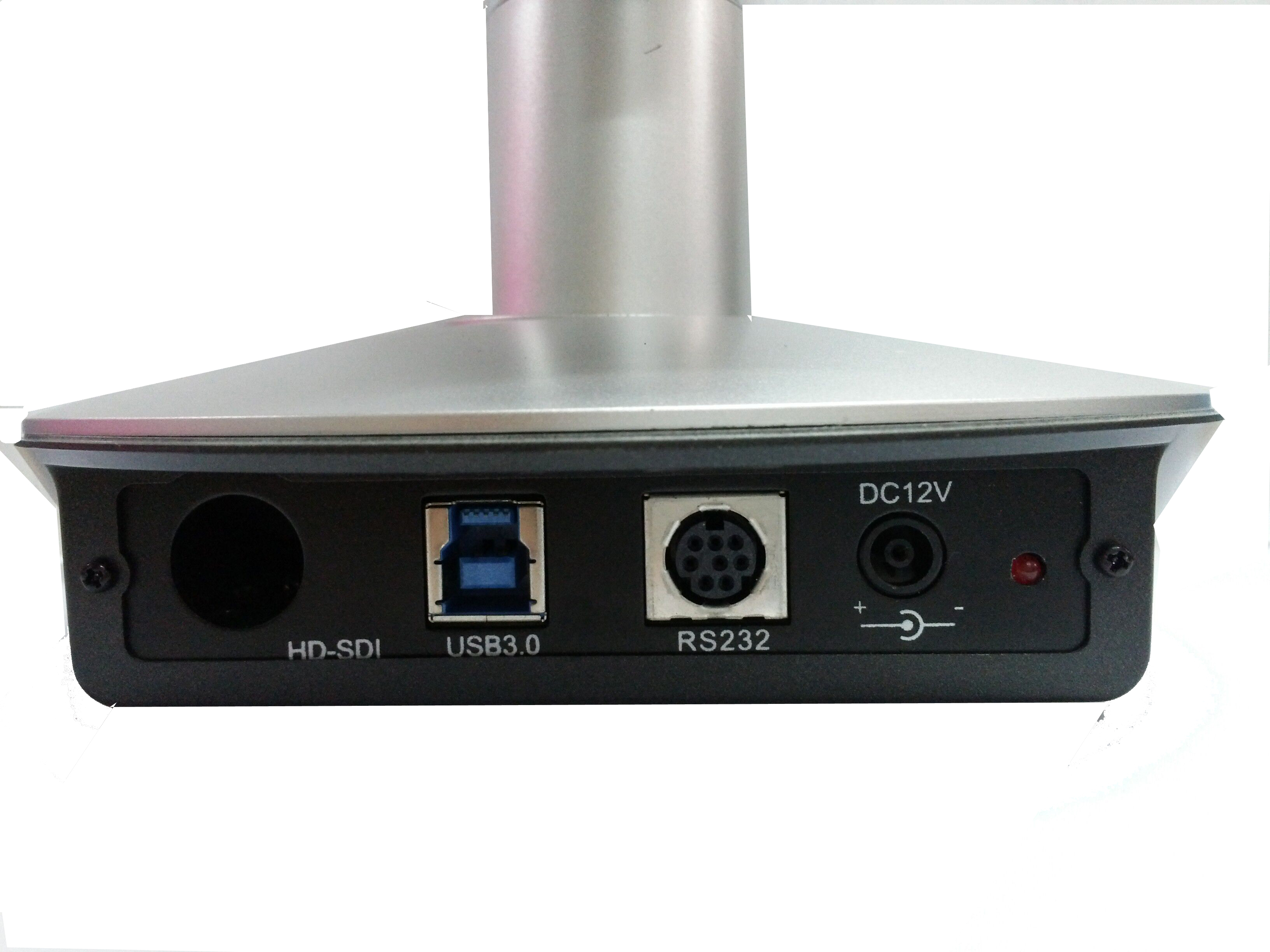

Input/Output Interfaces
Video Output USB3.0
Control connector 8-Pin Mini-DIN
Control Format Start, Data, Stop, Parity 1,8,1,none
Baud Rate 115200/9600/4800/2400bps
Power supply Interface HEC3800 power jack
General Specifications
Mechanism  Tilt: ±25°, Pan: ±90°
Color  Black/Silver grey
Power Supply Adapter 110-220 VAC to 12 VDC, 2A
Input voltage 12VDC (10.5-12V)
Power Consumption 6W
Storage Temperature -10°C to +60°C
Operating Temperature  0°C to +45°C
Dimension (W x H x W) 6.08 x 7.05 x 6.08 inches (154.5 x 179 x 154.5mm)
Weight 2.204 lbs (1 KG)
Environment Indoor
