Zhen Optics ZIP-2020

Camera Controller, Visca IP, ONVIF
Part #: 0615-0691    Mfr #: ZIP2020

Zhen Optics ZIP-2020

$599.00
Price

Overview

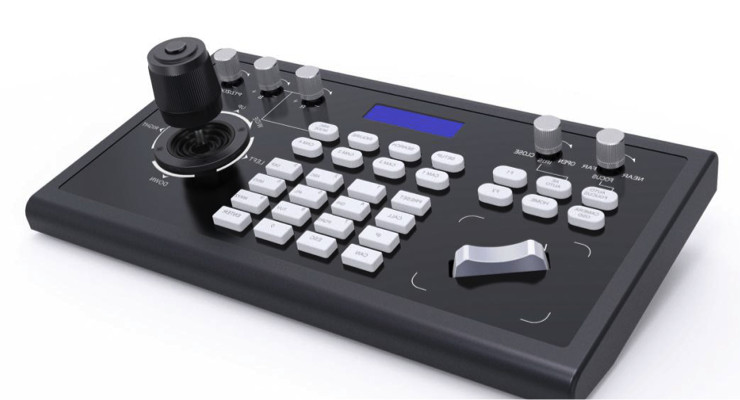

Zhen Optics ZIP-2020 Camera Controller

The ZIP-2020 lets you control up to 255 PTZ (pan-tilt-zoom) video cameras over a network or serial wiring.



Key Features:

  • 4D Joystick proportionally moves the camera left/right, up/down, and controls zoom in/out
  • Buttons to toggle auto focus, auto aperture, on-screen display (OSD), auto white balance.
  • Camera select buttons
  • All camera parameters can be set through the keyboard
  • Two custom function buttons (in VISCA and IP VISCA modes)
  • Select up to 255 Camera Presets
  • Control Modes: VISCA or ONVIF over IP and VISCA, ONVIF or Pelco-D/P over RS232/485/422.
  • Metal case construction with silicon backlit keys

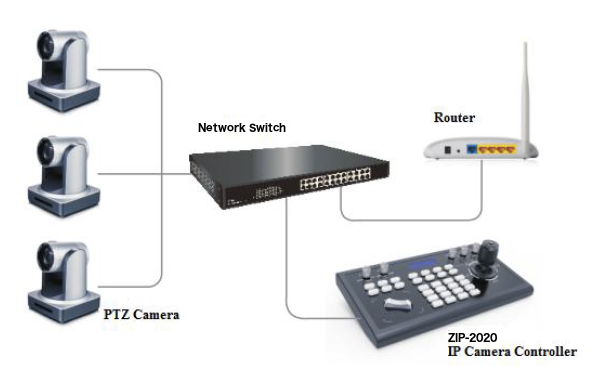

Network Control Wiring Diagram:

ZIP-2020 Wiring Diagram

Specifications

Ethernet One Ethernet port

Joystick

Four-dimensional (up, down, left, right) joystick control and clock

Zoom Tele/Wide

Connection Lead
Display LCD
Prompt Tone Button Sound Prompts Open/Off
Power supply 12VDC, 1A (Included)
Power Consumption 0.6 W Max
Operating Temperature 0°C – 50°C
Storage Temperature -20°C  70°C
Dimensions (W x D x H) 320 x 180 x 100 mm
