Lumantek EZ-HSV+
Overview

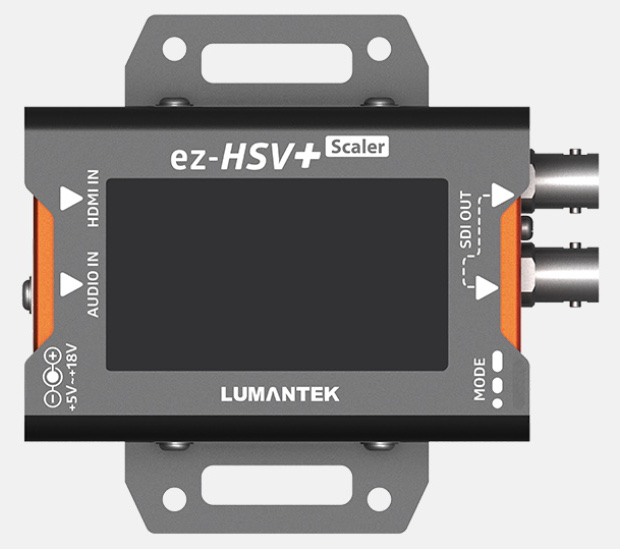

Lumantek EZ-HSV+

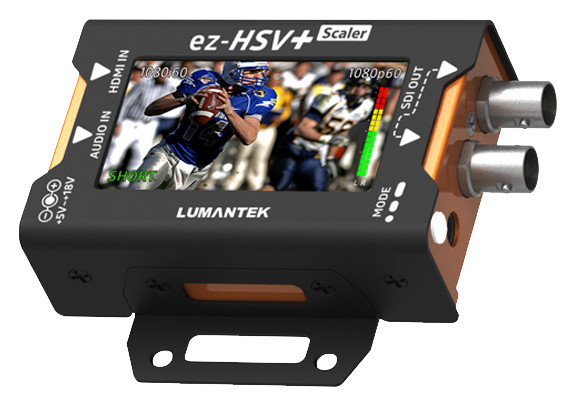

HDMI to SDI Converter with Display
The Lumantek EZ-HSV+ is an HDMI to SDI converter with display and scaler that lets you monitor HDMI video. The 2.7" LCD display lets you check sound level through an audio bar, as well as incoming resolution and scaled out resolution. Resolution can be up or down-scaled (from 480i to 1080p60) with a DIP switch.
The ez-HSV+ also comes with the ability to embed external analog audio (stereo) into the video, giving you a more convenient way to plan your production.

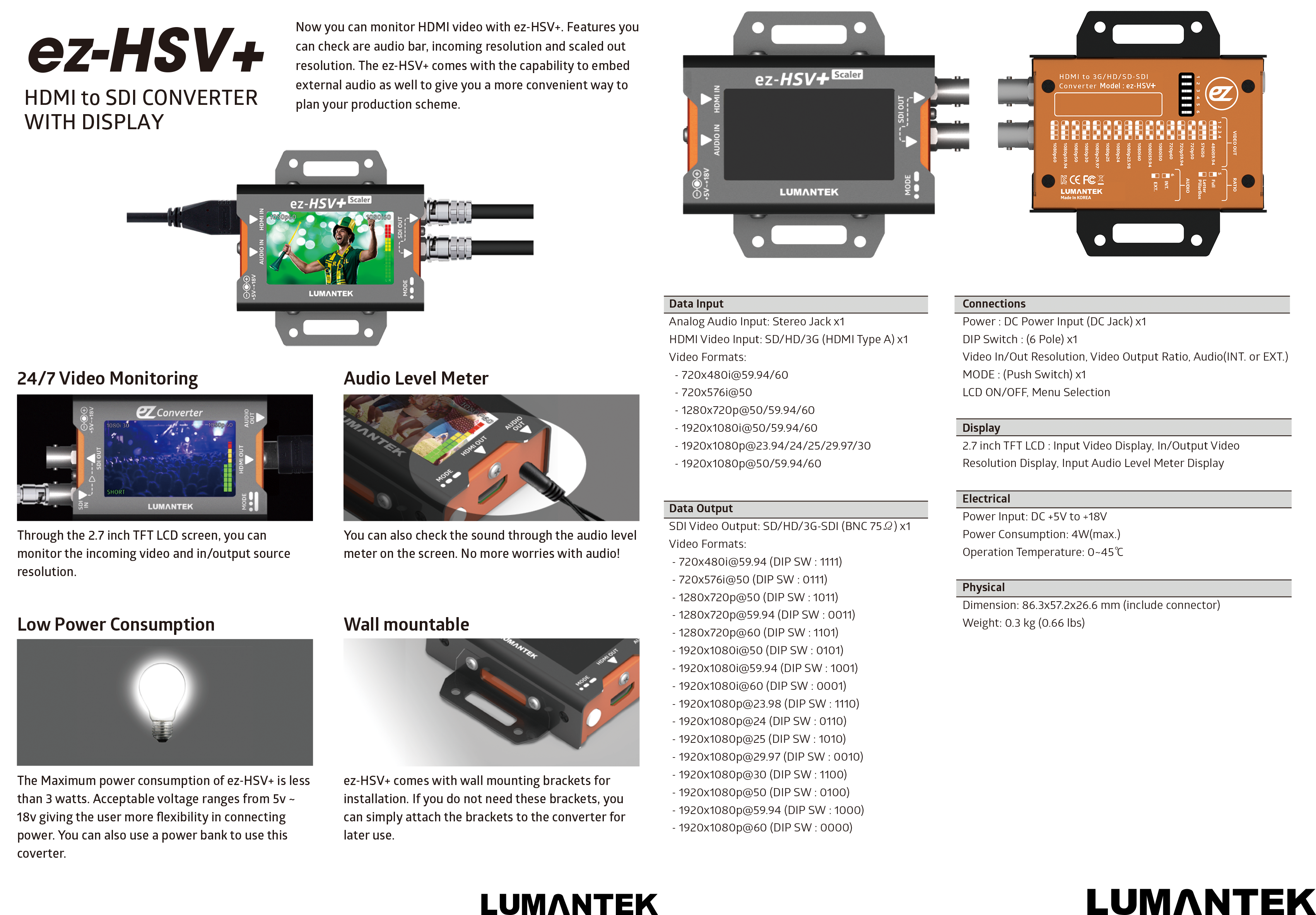

Features

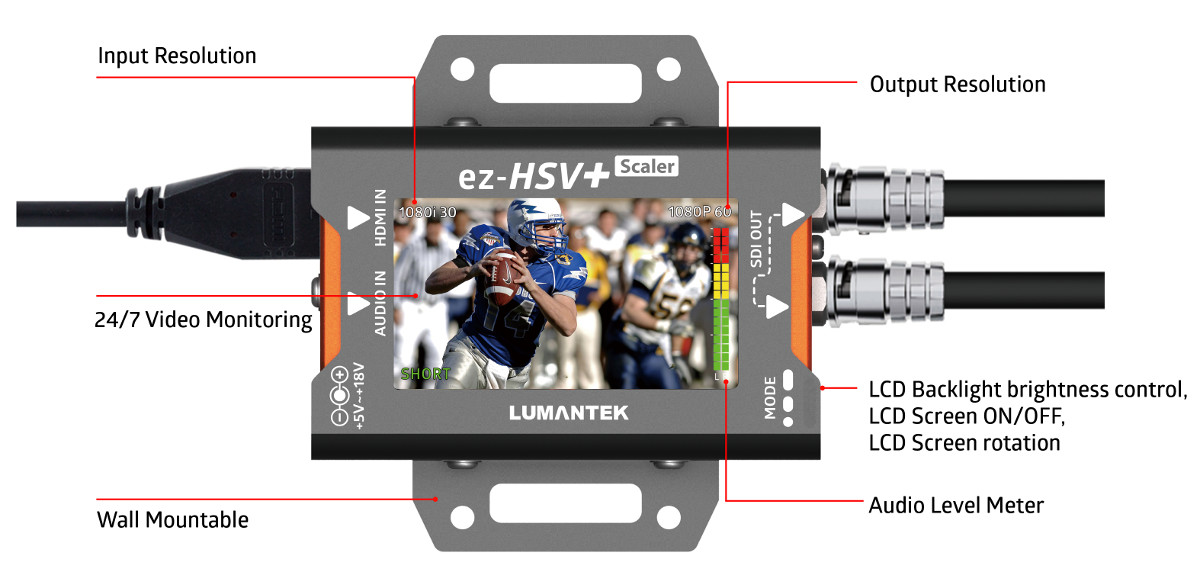

- 24/7 Video Monitoring: Through the 2.7-inch TFT LCD screen, you can monitor the incoming video and input/output source resolution.
-
Audio Level Meter: Check the sound through the audio level meter on the screen.
-
Wall mountable: The ez-HSV+ has a side bracket for optional wall-mounting.
-
Low Power Consumption: The maximum power consumption of the ez-HSV+ is less than 3 watts. Acceptable voltage ranges from 5V ~ 18V, giving the user more flexibility in connecting power. You can also use a power bank with this converter.
-
Global Power Adaptor: All ez converters come with AC/DC power adaptor (AC Input: 100-240V, 50/60Hz / DC Output: DC 12V, 1A). Three different types of replaceable plugs (USA, Australia, and Euro plug) make your work easy wherever you are.
Specifications

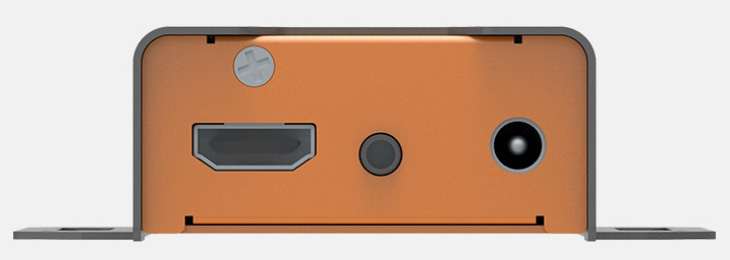

| DATA INPUT | |
| Analog Audio Input | Stereo Jack x 1 |
| HDMI Video Input | SD/ HD/ 3G (HDMI Type A) x 1 |
|
|
720x480i@59.94/60 |

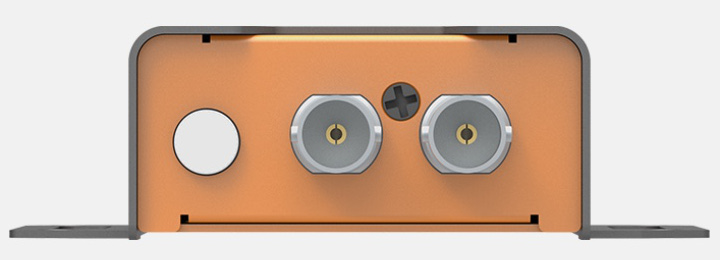

| DATA OUTPUT | |
| SDI Video Output | SD/HD/3G-SDI (BNC 75Ω) x1 |
| Video Formats | 720x480i@59.94 (DIP SW : 1111) 720x576i@50 (DIP SW : 0111) 1280x720p@50 (DIP SW : 1011) 1280x720p@59.94 (DIP SW : 0011) 1280x720p@60 (DIP SW : 1101) 1920x1080i@50 (DIP SW : 0101) 1920x1080i@59.94 (DIP SW : 1001) 1920x1080i@60 (DIP SW : 0001) 1920x1080p@23.98 (DIP SW : 1110) 1920x1080p@24 (DIP SW : 0110) 1920x1080p@25 (DIP SW : 1010) 1920x1080p@29.97 (DIP SW : 0010) 1920x1080p@30 (DIP SW : 1100) 1920x1080p@50 (DIP SW : 0100) 1920x1080p@59.94 (DIP SW : 1000) 1920x1080p@60 (DIP SW : 0000) |
|
CONNECTIONS |
|
| Power | DC Power Input (OD: 5.5 mm, ID:2.1 mm) x1 |

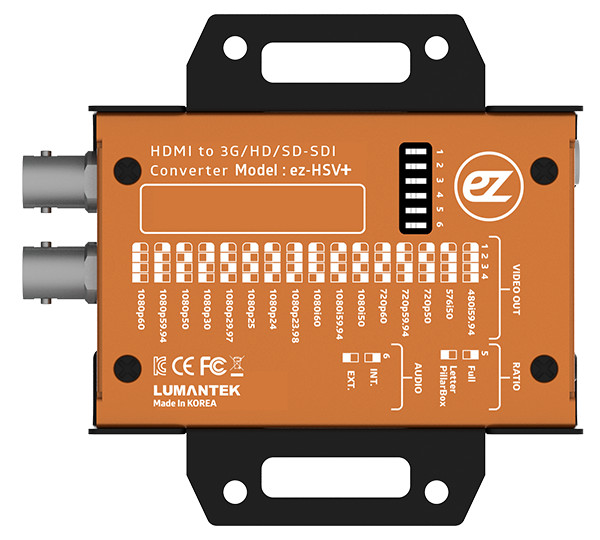

| DIP Switch | (6 Pole) x1 Video In/Out Resolution, Video Output Ratio, Audio (INT. or EXT.) |
| MODE | (Push Switch) x 1 LCD ON/OFF, Menu Selection |
| DISPLAY | |
| 2.7 inch TFT LCD |
Input Video Display, Input/Output Video Resolution Display, Input Audio Level Meter Display |
| ELECTRICAL | |
| Power Input |
DC +5V to +18V 0.33A (333mA) at +12V |
| Power Consumption | 4W (max.) |
| Operation Temperature |
32 ~ 113°F (0 ~ 45°C) |
| PHYSICAL | |
| Dimensions | 3.4" x 2.3" x 1.0" (86.3 x 57.2 x 26.6 mm) including connector |
| Weight | 0.66 lb (0.3 kg) |
