BenQ RM6503

65" 4K Interactive Touchscreen Display
Item #0970-0011 Model #RM6503

Overview

BenQ RM6503

65-inch Master Series Education Interactive Flat Panel

The RM6503 is a 4K UHD display powered by Fine IR+ touch technology to give everyone a smooth and intuitive writing experience. With up to 40 points of simultaneous touch recognition, multiple students can interact with the display at any time for more engaging lessons.

Foster collaborative learning with an intuitive whiteboard. EZWrite 6 lets you work on the canvas from the interactive display or your device.

All BenQ interactive displays come equipped with ClassroomCare® germ-resistant screens and pens, our proprietary line of health-centric technologies carefully designed and tested to make active engagement in the classroom safe for everyone.

The RM6503 interactive display comes out of the box with a quad-core A73 processor, 8 GB memory, and 32 GB of storage. Running on Android 9.0 and including an optional slot-in PC, it is the perfect teaching tool for any classroom.

Key Features
  • Designed for hybrid and remote classrooms
  • Germ-resistant screen and pen
  • Boost student engagement with built-in tools
  • Front USB Type-C for all-in-one connectivity
  • 4K UHD screen with built-in speakers and mics

Features

  • ClassroomCare® germ-resistant screens and pens: reduce disease transmission in the classroom. All BenQ interactive displays have touch screens coated with a nano-ionic silver formula that kills 99.9% of common germs after contact.
  • Enhanced eye comfort: As part of ClassroomCare® technologies, BenQ displays come with low blue light and flicker-free technology for reduced eye strain and a comfortable viewing experience. Anti-glare screens additionally ensure that display content is seen clearly, even on hybrid and remote calls.
  • EZWrite 6 interactive whiteboard: Fosters collaborative learning by letting you work on the canvas from the interactive display or your device.
  • 4K UHD display powered by Fine IR+ touch technology: gives everyone a smooth and intuitive writing experience. With up to 40 points of simultaneous touch recognition, multiple students can interact with the display at any time for more engaging lessons.
  • Untethered screen sharing: Empower students to wirelessly present their ideas in class without the hassle of cables. InstaShare 2 lets students simultaneously cast their device screens onto the interactive display.

  • Compatible with all leading video conferencing software: Have students learn from home or invite a guest speaker to join remotely through video conferencing software such as Zoom, Google Meet, and Microsoft Teams. Use a slot-in PC or plug in the TZY31 InstaShare Button Solution to start video calls on the display with a single click.

  • Learning Management System: Enjoy Google Classroom integration as well as compatibility with Canvas and other LMS.
  • Student Response System: Keep students engaged with student response systems such as Kahoot! and other SRS.
  • Side-by-side learning: Make lessons more efficient by running two apps side by side. Explain in detail with a whiteboard on one side and supporting content on the other.
  • Securely access lesson materials on Dropbox, Google Drive, and OneDrive: Load your personal settings and files on any display for a more personalized experience.
  • Two built-in 16W speakers and 6-microphone array: ensure that the entire class can hear and be heard during hybrid and remote lessons.
  • Convenient connectivity: The front ports cover all your connectivity needs. Charge your notebook, display your screen, and enable touch with a single Type-C cable.
  • Voice assistant: Teach lessons on the RM6503 from anywhere in the room with the remote control and voice assistant for increased accessibility.
  • Effective communication across campus: Keep everyone informed and up to date on events, safety protocols, and emergencies. Deliver clear and effective messages to multiple BenQ displays with X-Sign Broadcast.
  • Device analytics at a glance: Easily monitor and analyze the status of all your BenQ devices on a single dashboard. Manage displays, apps, and OTA updates remotely for maximum convenience.
  • IP5X dust protection: The IP5X certification ensures that the panel will deliver consistent operation, even in dust-prone environments. (Complies with IEC standard 60529.)

Specifications

Panel

Screen size (diagonal) 65"
Panel type IPS
Resolution (pixels) UHD 3840 x 2160
Active area 56.24 x 31.63 inch (1428.5 × 803.5 mm)
Aspect ratio 16:9
Brightness without glass (typical) 400 nits
Contrast ratio (typical) 1,200:1
Dynamic contrast ratio
30,000:1
Color depth 10-bit
Response time 8 ms
Color gamut 72% NTSC
Operation hours 18 hours / 7 days
Orientation Landscape
Light life (typical) 50,000 hrs

Glass

Hardness 9H tempered
Germ-resistant coating Nano-ionic silver
Anti-glare coating Yes

Touch screen

Touch technology Infrared touch
Touch points up to 40
Touch output < 10 ms

System

CPU A73 × 4
GPU G52 MC 2
Memory | Storage 8 GB | 32 GB
OS Android 9.0

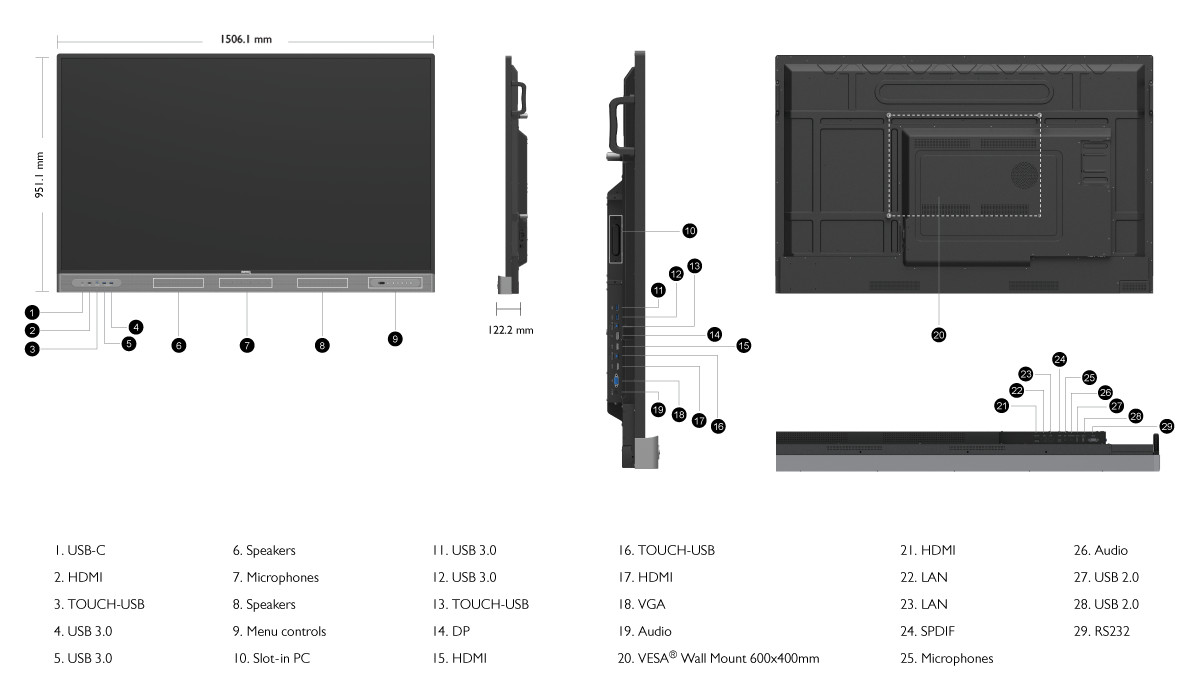

Connectivity

HDMI (in | out) 3 × HDMI 2.0 | 1 × HDMI 2.0
DisplayPort (in | out) 1 × 1.2 | No
VGA (in | out) 1 | 0
3.5 mm Line in (1) PC Audio × 1
3.5 mm Line in (2) Mic × 1
3.5 mm Line out Earphone × 1
SPDIF (in | out) 0 | 1 (optical)
USB-A 2 × 2.0 + 5 × 3.2 Gen1
USB-B (for touch) 3 × 3.0
USB-C 1 × 3. 0 (PD 65 W)
Slot-in PC (OPS) 1
Ethernet LAN 10 / 100 Mbps (Android), 10 / 100 / 1000 Mbps (OPS) × 1

Built-in Peripherals

Microphone 6
Speaker 2 × 16 W

Power

Power AC 100–240 V 50/60 Hz
Maximum power consumption  335 W
Standby power consumption < 0.5 W
Typical power consumption 113.7 W

Physical

Dimensions (W x H x D) 59.3 × 37.4 × 4.8 inch (1506.0 × 951.0 × 122.2 mm)
Shipping dimensions (W x H x D) 65.4 × 41.1 × 8.7 inch (1660 × 1045 × 220 mm)
Weight (product | shipping) 91.49 lb | 126.77 lb (41.5 kg | 57.5 kg)
Mount (screws) VESA 600 × 400 mm (4 × M8 × 20L)
Pen Tray 1

Environment

Operating temperature 32ºF ~ 104ºF (0°C ~ 40°C)
Storage temperature 14ºF ~ 140ºF (-10°C ~ 60°C)
Storage humidity 10% ~ 80% RH Non-Condensing
Operating humidity 10% ~ 90% RH non-condensing

Software

Whiteboarding EZWrite 6.0
Wireless screen sharing InstaShare 2
Account management AMS
Device management DMS
Quick access tool
Floating Tool
Broadcast system
X-Sign Broadcast

Accessories

Cables 1 × VGA (3 m | 9.8 ft), 1 × HDMI (3 m | 9.8 ft), 1 × USB-B for touch (3 m | 9.8 ft), 1 × USB-C (1.5 m | 4.9 ft)
Wall mount (with shipment) 1
Stylus 2
Remote control 1
Power cord BQP: × 7 (3 m | 9.8 ft) (EU/US/AU/TW/JP/UK/IN) ; BQE x 2 (EU/UK) ; BQA × 1 (US); BQin × 1 (IN); BQtw × 1; BQC x 1 (CN)
