Composite Video Cables
Features
Composite Video Cables
Coaxial Audio/Video RCA Cables M/M for S/PDIF, Digital Coax, Subwoofer & Composite Video

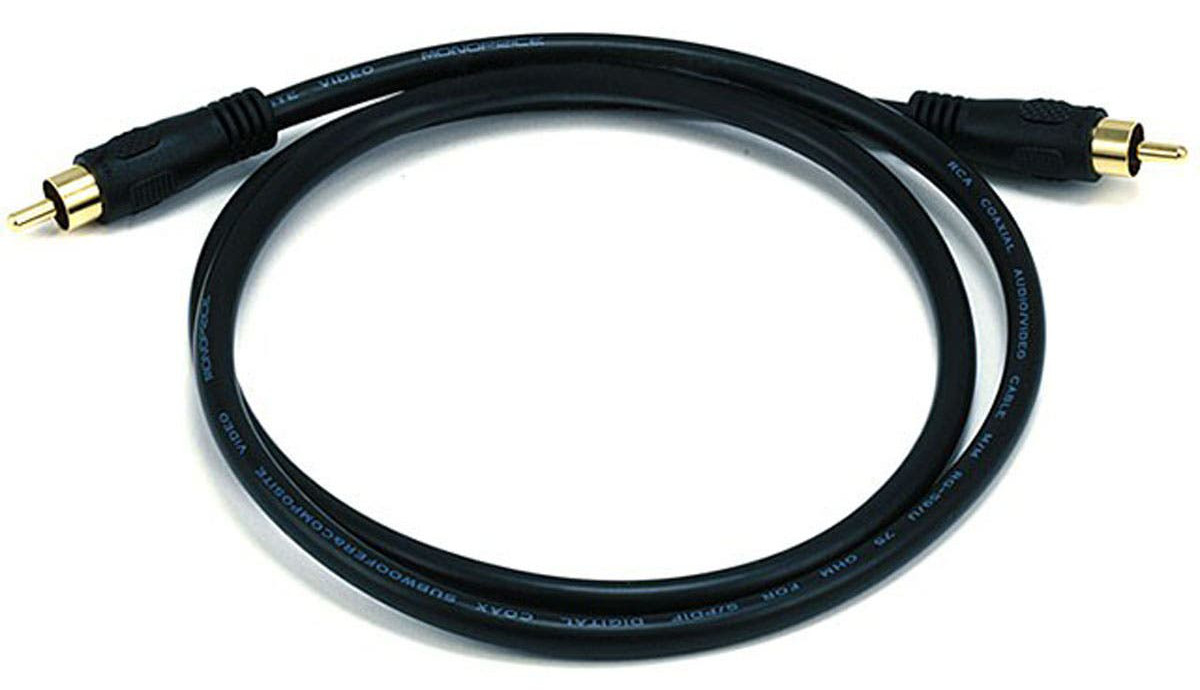

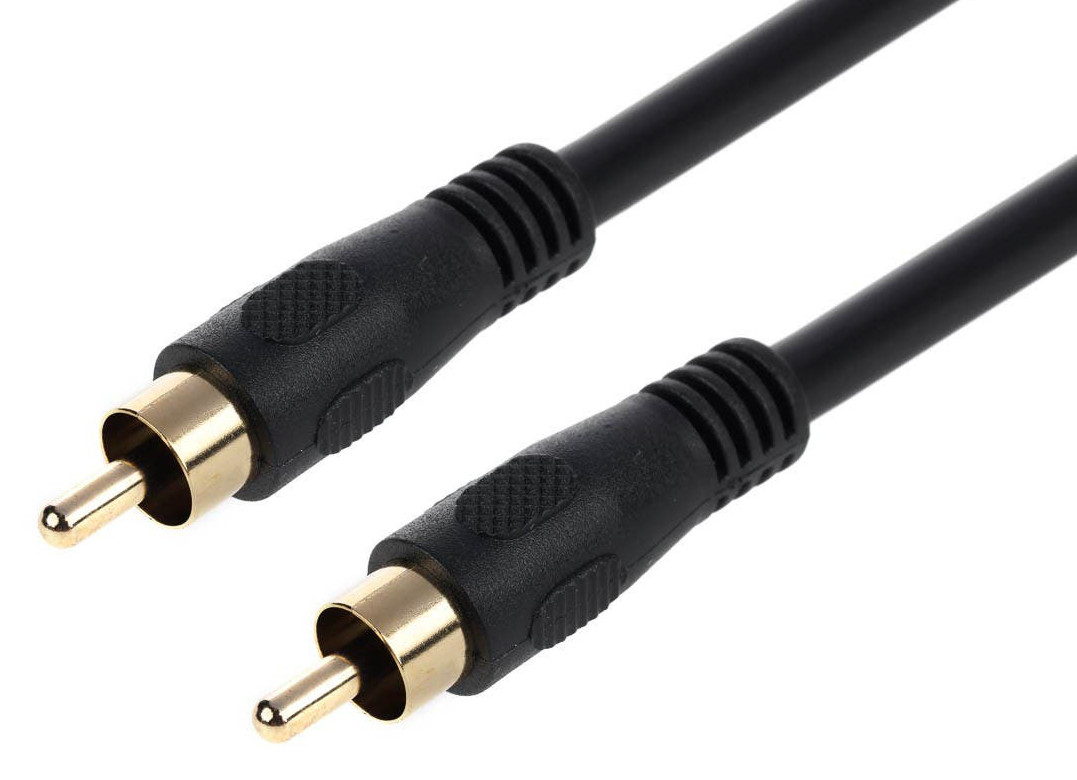

3' to 25' RG-59/U 75 ohm cables, VW-1 rated
These Digital Coax Cables are made from premium quality RG-59/U coaxial cable with double shielding to prevent signal degradation caused by EMI and RFI interference.
The conductor is made of 99.999% pure bare oxygen-free copper, while the shield consists of an inner layer of Aluminum-Mylar foil with 100% coverage and an outer layer of copper braid.
These cables are ideal for conducting S/PDIF digital audio signals and other high-bandwidth content, but they are also ideal for composite video, audio interconnects, and other line level RCA signals.
The VW-1 rating on these cables indicates that the jacket has been treated so that it complies with fire safety regulations, making it safe for use through or within the walls of residential-class buildings.
Features:
- Constructed of 75 ohm impedance miniature coax video cable for maximum signal transfer - extended 1 GHz bandwidth
- Low-loss 100% spiral-wound copper shielding
- Double shielded with aluminum-mylar foil and copper braiding
- Ultra-flexible jacket for easy installation
- Molded connector housings
- 24K gold-plated RCA male connectors ensure long-lasting, corrosion-free connections
- 99.999% pure oxygen-free copper conductor
- Can be used for both temporary wiring and non-plenum installed applications
Available sizes:
Length | Price |
3' (0.9 m) |
$4.00
Add to Cart
|
6' (1.8 m) |
$4.50
Add to Cart
|
12' (3.7 m) |
$5.50
Add to Cart
|
25' (7.6 m) |
$7.50
Add to Cart
|

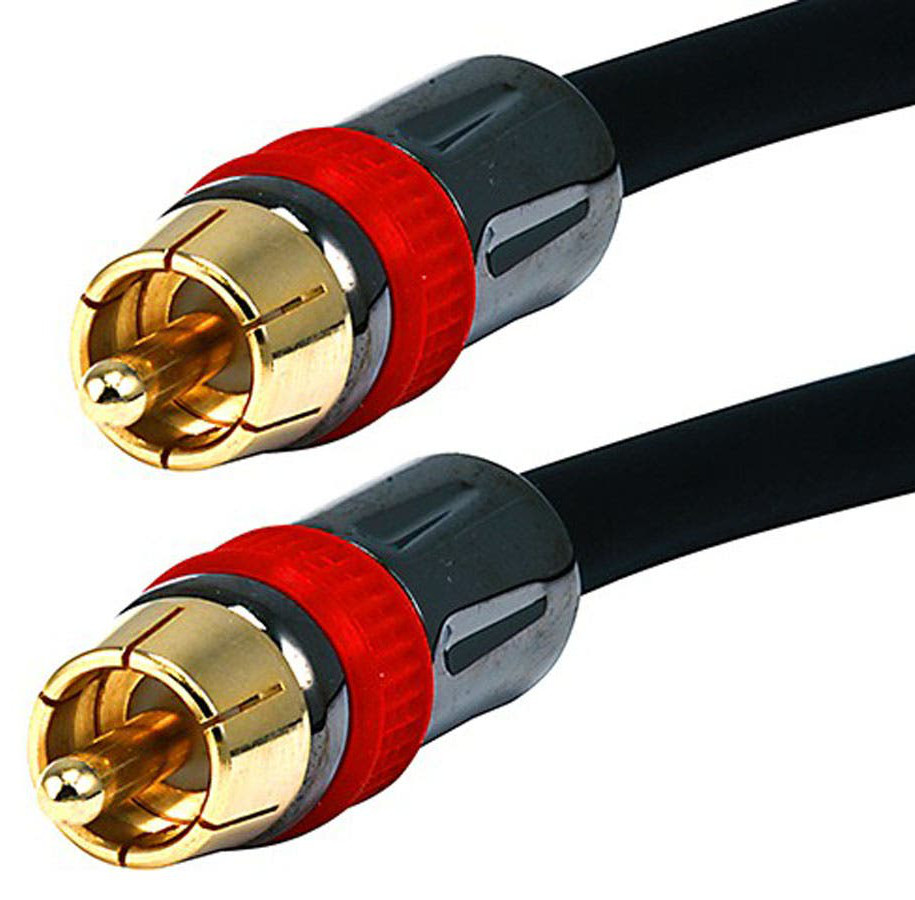

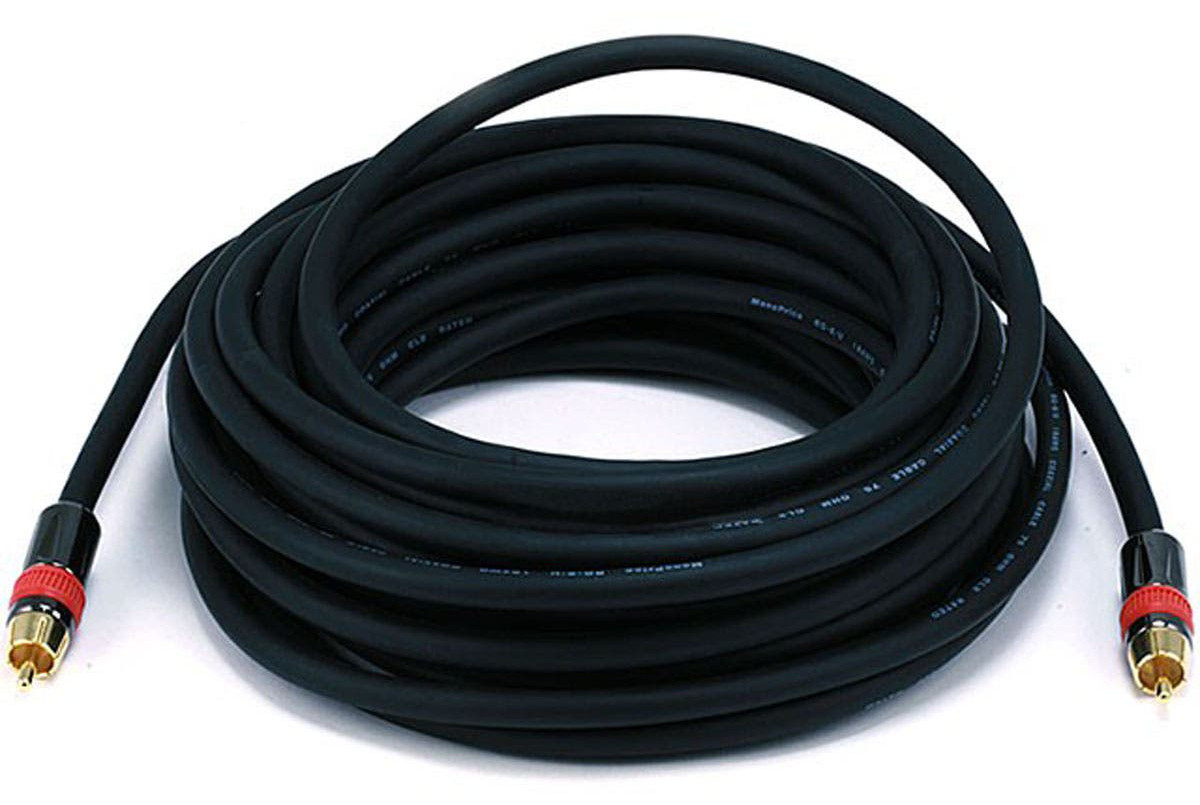

35' to 100' RG-6/U 75 ohm cables, CL-2 rated
These Digital Coax Cables are made from premium quality RG-6/U with double copper braid shielding to prevent signal degradation caused by EMI and RFI interference.
These cables are ideal for conducting S/PDIF digital audio signals and other high-bandwidth content, but they can also be used for composite video and other line level RCA signals.
The CL2 rating on these cables indicates that the jacket has been treated so that it complies with fire safety regulations, making it safe for use through or within the walls of residential-class buildings.
Features:
- Constructed of 75 ohm impedance miniature coax video cable for maximum signal transfer — extended 1 GHz bandwidth
- 22 pF per foot capacitance
- Low-loss 100% spiral-wound copper shielding
- Double shielded with copper braiding
- Ultra-flexible jacket for easy installation
- Rubber-covered, molded connector housings
- 24K gold-plated RCA male connectors ensure long-lasting, corrosion-free connections
- 97% pure oxygen-free copper conductor
- Can be used for both temporary wiring and non-plenum installed applications
Available sizes:
Length | Price |
35' (10.7 m) |
$11.00
Add to Cart
|
50' (15.2 m) |
$15.00
Add to Cart
|
75' (22.9 m) |
$22.50
Add to Cart
|
100' (30.5 m) |
$30.00
Add to Cart
|
