Epson ELPMB67

Ceiling Mount, White
Item #7611-0049 Model #V12HA54010
$367.00
Price

Overview

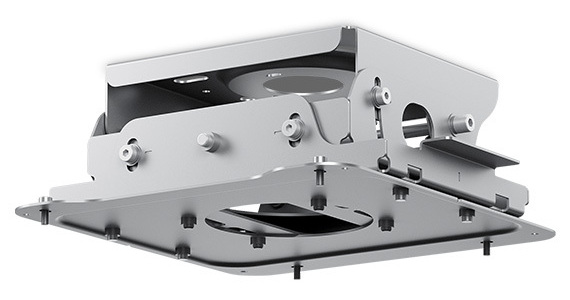

Epson ELPMB67

Adjustable Ceiling Mount for Pro Series Projectors

Simplify projector installations with the versatile Epson ELPMB67 projector ceiling mount. Designed with flexibility in mind, this convenient ceiling mount easily supports a variety of projector adjustments — including vertical, horizontal and rotational tilt — to accommodate a range of applications.

The mount also offers a convenient forward and backward slide capability ideal for lenses that lack zoom features such as ultra-short throw lenses (UST). The ELPMB67 supports 360-degree directional mounting and includes M6 bolt holes for easy truss mounting via clamps. Pair with the ELPFP15 suspension adapter (sold separately) for high-ceiling mount applications.

Please check the Compatibility tab to determine if this mount will work with your projector.

(Model: V12HA54010)

Features

  • Provides a wide range of adjustment options: including vertical, horizontal and rotational tilt
  • Forward and backward slide capability: compensates for lenses that lack zoom, such as ultra short-throw lenses

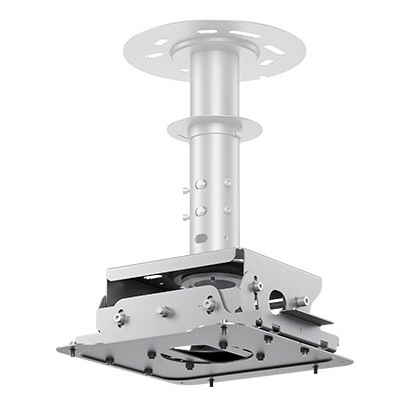

  • Flexible installation: pair with the ELPFP15 suspension adapter for high-ceiling mount applications
  • Supports 360-degree directional mounting: for portrait-projection, inclined-ceiling and desktop-mounting applications
  • Easy truss mounting: two M6 bolt holes for easy truss mounting via truss clamps (not included)
  • Tilt angle: vertical: +5 to -15 degrees; horizontal: +5 to -5 degrees
  • Horizontal rotation angle: +5 to -5 degrees
  • Forward/backward slide: ±36 mm
  • Durable design: supports up to 88 lb/40 kg; unit weight: 12.6 lb/5.7 kg
  • Convenient handling: two handling grips to help lift with projector attached

  • Eco Features:

    • RoHS compliant
    • Recyclable product1
    • Epson America, Inc. is a SmartWay® Transport Partner2
Notes:

1 For convenient and reasonable recycling options, visit www.epson.com/recycle.

2 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.

Specifications

Material Steel
Hole of ceiling mount plate ELPMB22, 23, 47, 48
Dimensions (D x H x W) 12.9" x 4.8" x 14.2" / 328 x 122 x 361 mm
Weight 12.6 lb / 5.7 kg
Supported Weight 88 lb / 40 kg
Installation Site Ceiling, Inclined Ceiling, Wall (360 degree projection), Desktop
Adjustment Range
Vertical Tilt +5 to -15°
Horizontal Tilt ±5°
Horizontal Rotation ±5°
Horizontal Slide (forward/back) ±36mm
Accessories
Safety Wire: 2 pcs
Clip: 2 pcs
Safety wire set: Carabiner: 1 pcs
Wire: 1 pcs
Hook: 1 pcs
Screw: M6 1 pcs
Screw Set Screw: M6×15, 4 pcs
Screw: M8×16, 2 pcs

What’s in the Box

  • ELPMB67 ceiling mount
  • Instruction manual

Downloads

Compatibility

To check whether this item is compatible with your equipment, use the form below.

  • Select a brand from the list first.
