Exact Solutions EVO-LINK-201US
Features
Exact Solutions EVO-LINK-201US
Truss Mount with Fine Adjustment

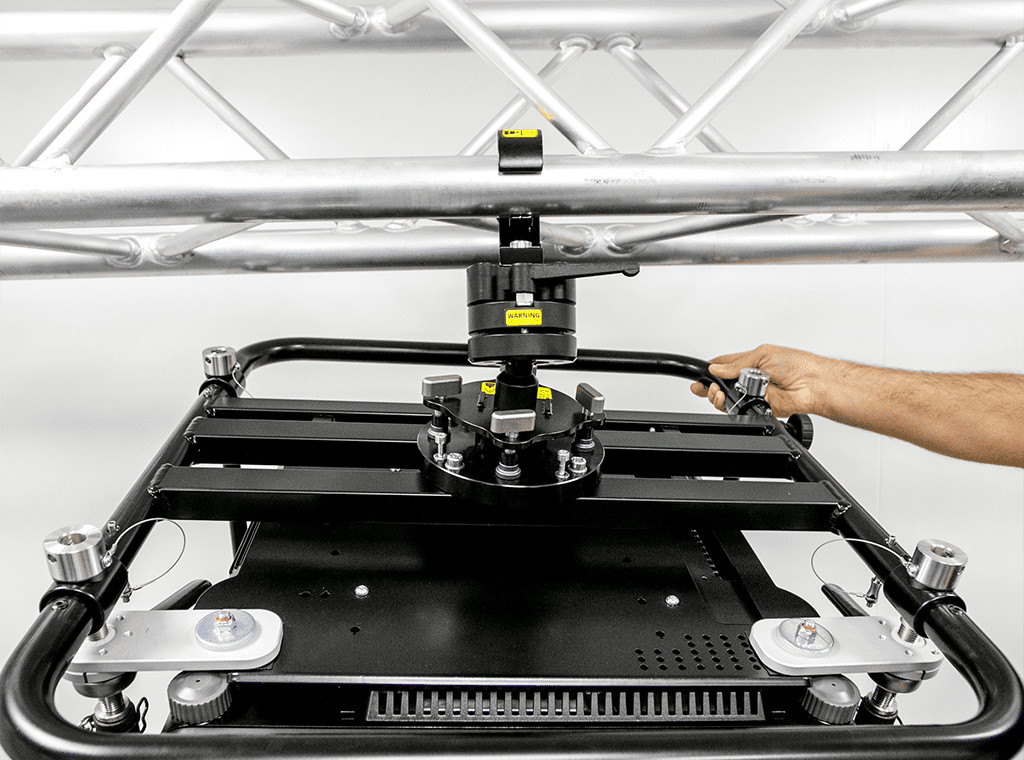

The Exact Solutions EVO-LINK-201US is part of the EVO-LINK product line, completing the EVOlution of projector hanging accessories. In combination with the EVO frame series, the EVO-LINK assures a quick, safe and easy setup for hanging a projector. The integrated ball joint permits super smooth and wide-ranging settings, while the 3-Plates Technology implemented in the EVO-LINK body ensures that your adjustments stay exactly as you set them.

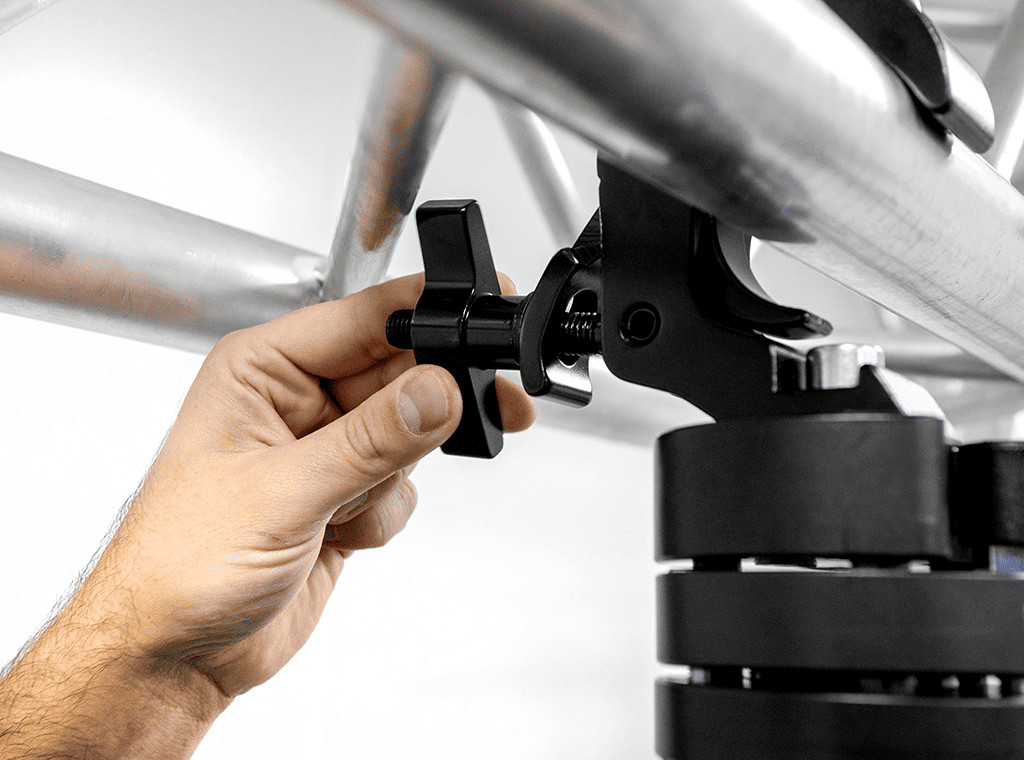

The EVO-LINK-201US comes with one self-lock hook, which enables a fast and easy mounting on a truss. Besides the adjustment range of ±25°, the EVO-LINK-201US offers an additional ±5° fine tuning to ensure precise projector alignment.
Key features:
- Strong and lightweight
- Smooth and safe operation
- Wide adjustment range with ball joint
- Extended fine adjust system
- DGUV V17/V18 verified
Specifications
| Dimensions | 11.0" x 6.4" x 6.4" (279 x 163 x 163 mm) |
| Weight | 9.7 lb (4.4 kg) |
| Max. weight load | 441 lb (200 kg) with safety wire |
| Adjustment | ±25° |
| With self-lock hook | Yes |
| With crossbeam | No |
| Fine adjust | Yes, ±5° |
| Compatibility* | EVO-P10 | EVO-P11 |EVO-P14 | EVO-P17 | EVO-P20 | EVO-P30 | EVO-P31H | EVO-E10 | EVO-E20 | P11 BE | EVO-B20 | EVO-C20 |
* Always refer to manual and do not exceed maximum load. This is an abstract of a complete list of compatible projector frames. EVO-LINK-200 series is also compatible with other projector frames; please contact us for more information.
