Exact Solutions EVO-LINK-211US
Features

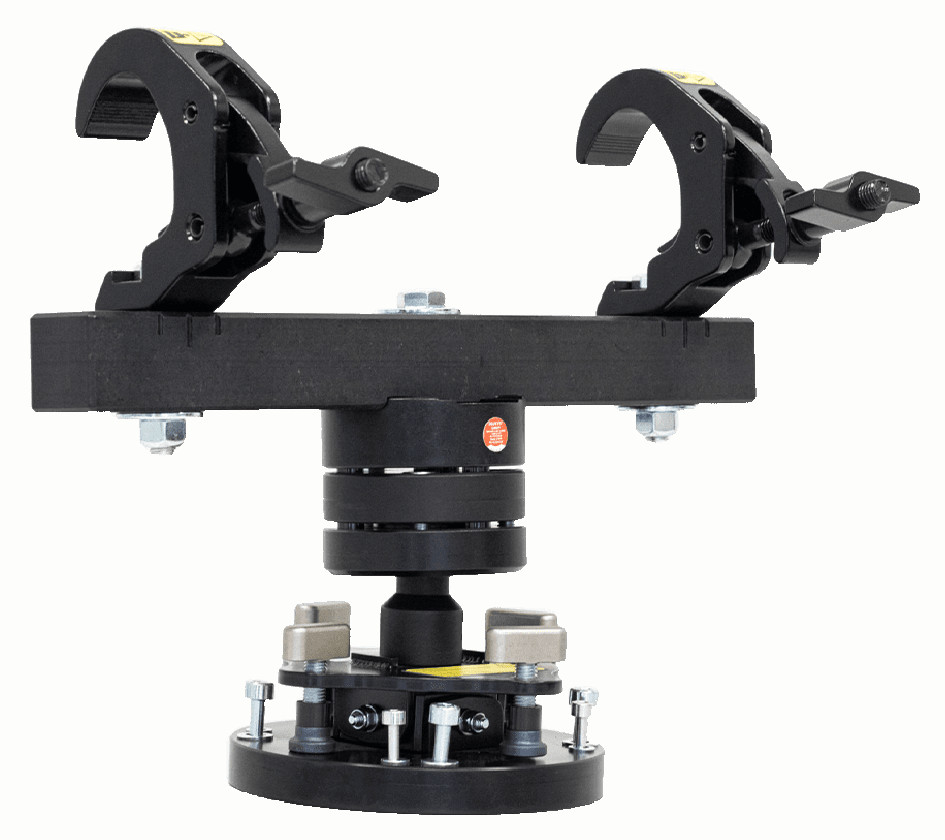

Exact Solutions EVO-LINK-211US
Dual-Hook Truss Mount with Fine Adjustment
The Exact Solutions EVO-LINK-211US belongs to the EVO-LINK product line, completing the EVOlution of projector hanging accessories. In combination with the EVO frame series, the EVO-LINK assures a quick, safe and easy setup for hanging a projector. The integrated ball joint permits super smooth and wide-ranging settings, while the 3-Plates Technology implemented in the EVO-LINK body ensures that your adjustments stay exactly as you set them.

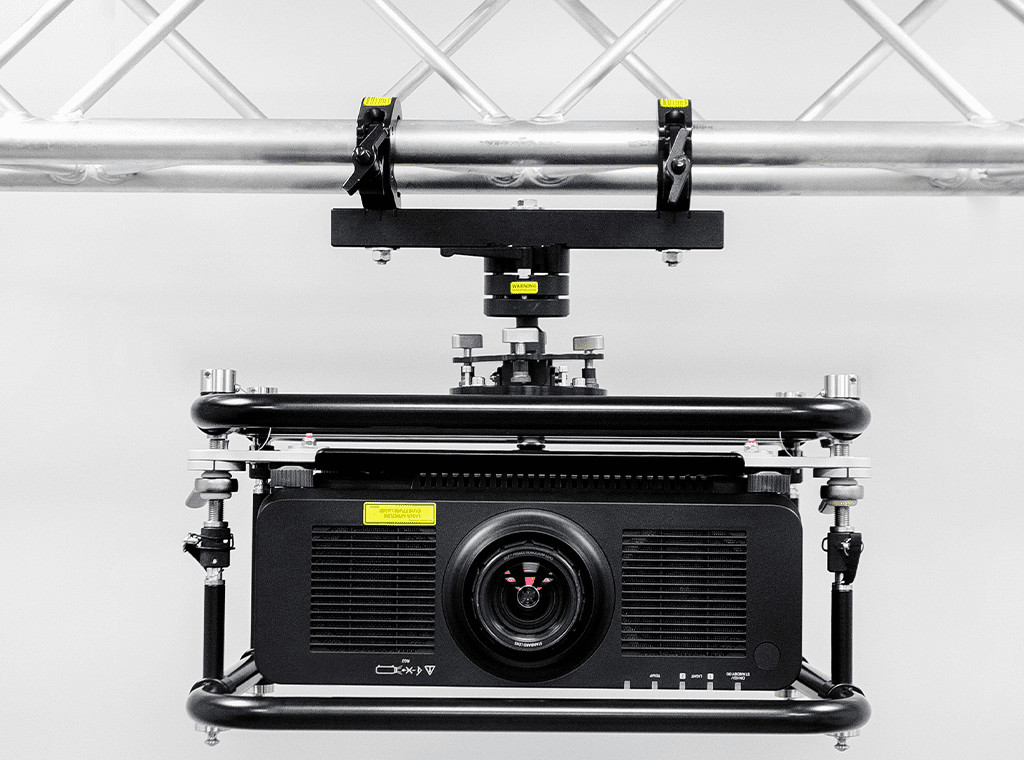

The EVO-LINK-211US comes with a crossbeam and two self-lock hooks, which provide even more possibilities for mounting on a truss, with a triangulated structure inside. This also allows central mounting, ensuring that the center of gravity is balanced in the middle, and preventing the truss from tipping forward or backward. Besides the adjustment range of ±25°, the EVO-LINK-211US offers an additional ±5° fine tuning to ensure precise projector alignment.
Key features:
- Strong and lightweight
- Smooth and safe operation
- Wide adjustment range with ball joint
- Extended fine-adjust system
- DGUV V17/V18 verified
Specifications
| Dimensions | 12.5" x 15.7" x 6.4" (317 x 400 x 163 mm) |
| Weight | 13.9 lb (6.3 kg) |
| Max. weight load | 441 lb (200 kg) with safety wire |
| Adjustment | ±25° |
| With self-lock hook(s) | Yes, 2 |
| With crossbeam | Yes |
| Fine adjust | Yes, ±5° |
| Compatibility* | EVO-P10 | EVO-P11 |EVO-P14 | EVO-P17 | EVO-P20 | EVO-P30 | EVO-P31H | EVO-E10 | EVO-E20 | P11 BE | EVO-B20 | EVO-C20 |
*Always refer to manual and do not exceed maximum load. This is an abstract of a complete list of compatible projector frames. EVO-LINK-200 series is also compatible with other projector frames; please contact us for more information.
