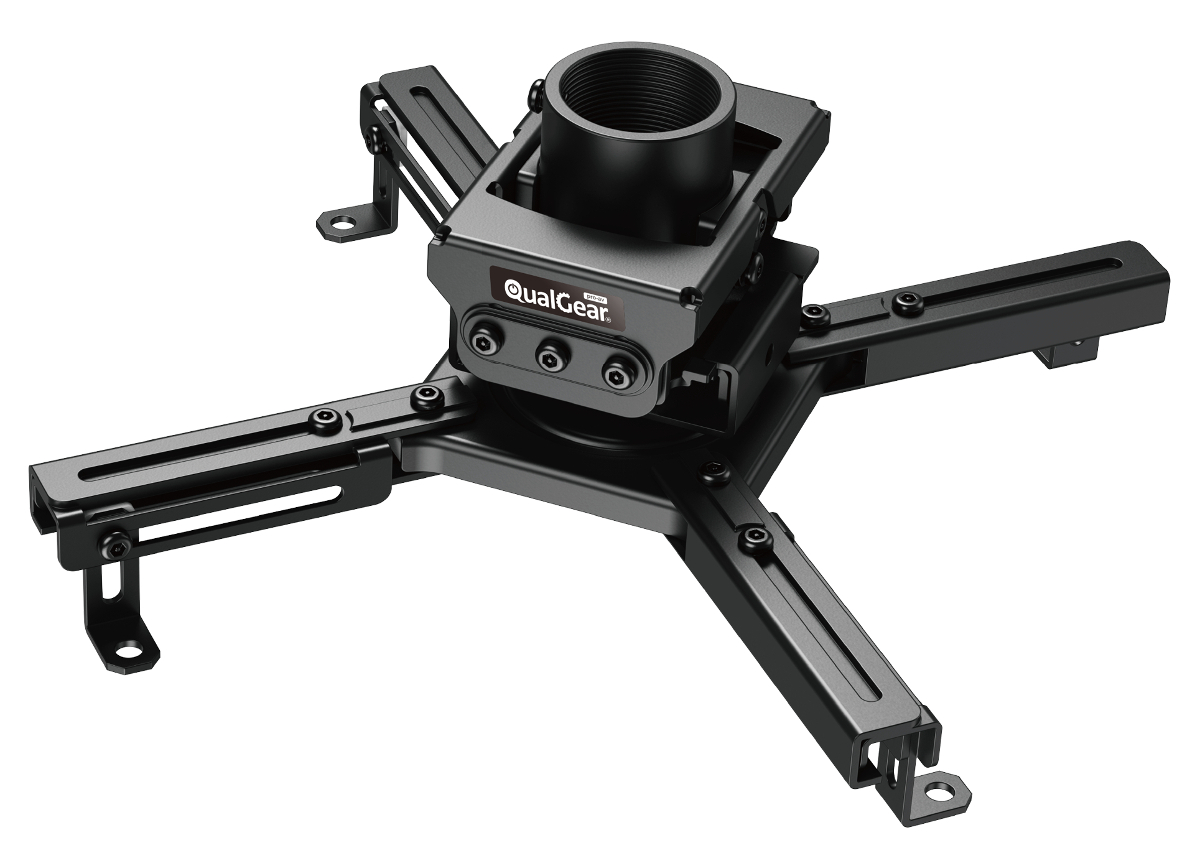

QualGear QG-PRO-PM-50-B
Projector Ceiling Mount, Black, 70 lb Weight Capacity
Item #7612-2102 Model #QGPROPN50B
Features
QualGear QG-PRO-PM-50-B
Black projector ceiling mount, supports up to 70 lb
This two-piece projector mount features easy installation and fits a variety of projector models (up to 70 lb) thanks to its adjustable mounting arms. It has a total of 12 adjustment points (6 for pitch and 6 for roll) that allow the projector to stay in place and not slip after installation.
The QG-PRO-PM-50-B comes with fully adjustable roll, pitch and yaw, and is compatible with standard 1.5 NPT threaded pipes.
Features:
- 12 total adjustment points (6 for pitch and 6 for roll)

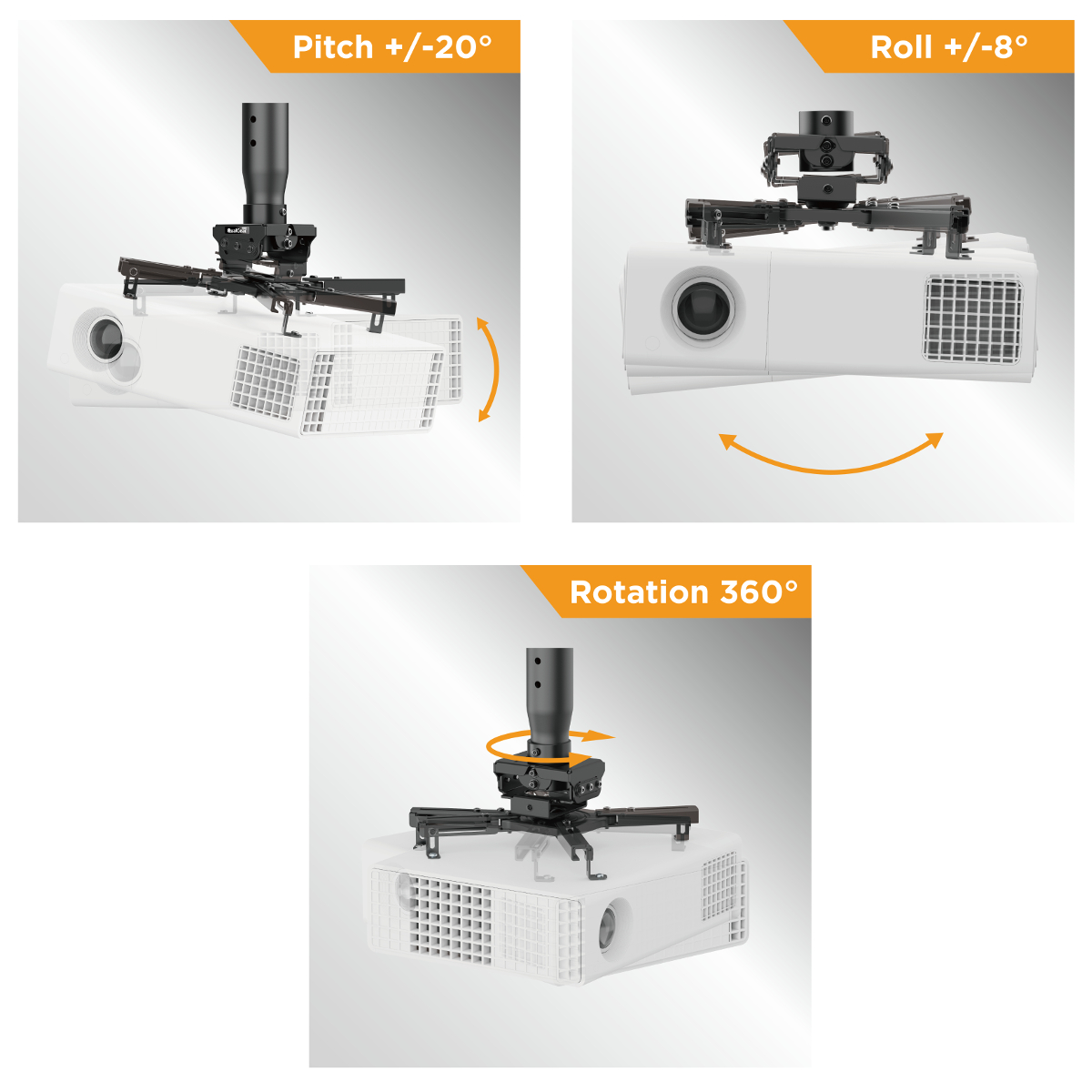

- Six-axis adjustments: pitch ±20°, roll ±8°, rotation 360°
- Low profile that holds the projector close to ceiling
- Weight capacity of 70 lb
- Pre-assembled mounting interface for quick installation
- Pre-sorted hardware pack included

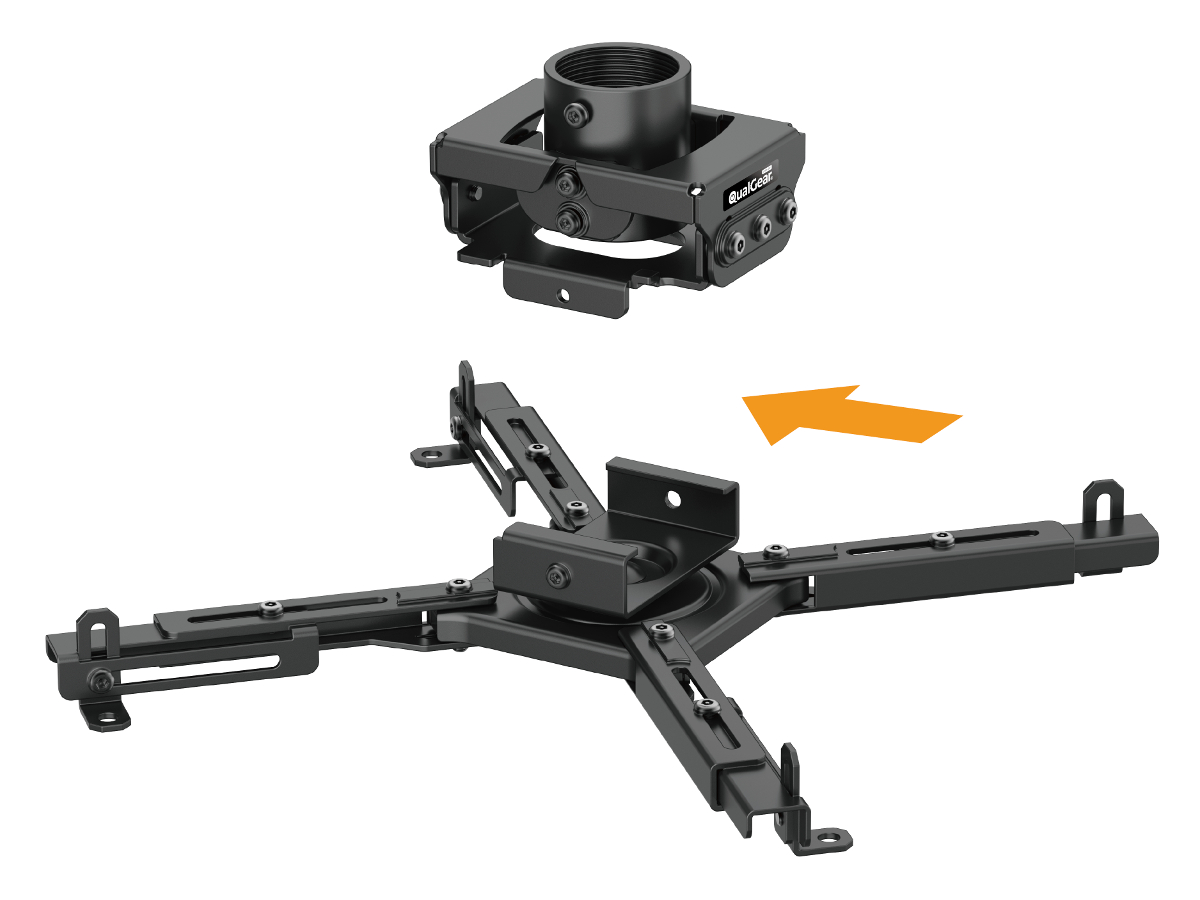

- Detachable mounting plate for quick installation and removal (quick release)

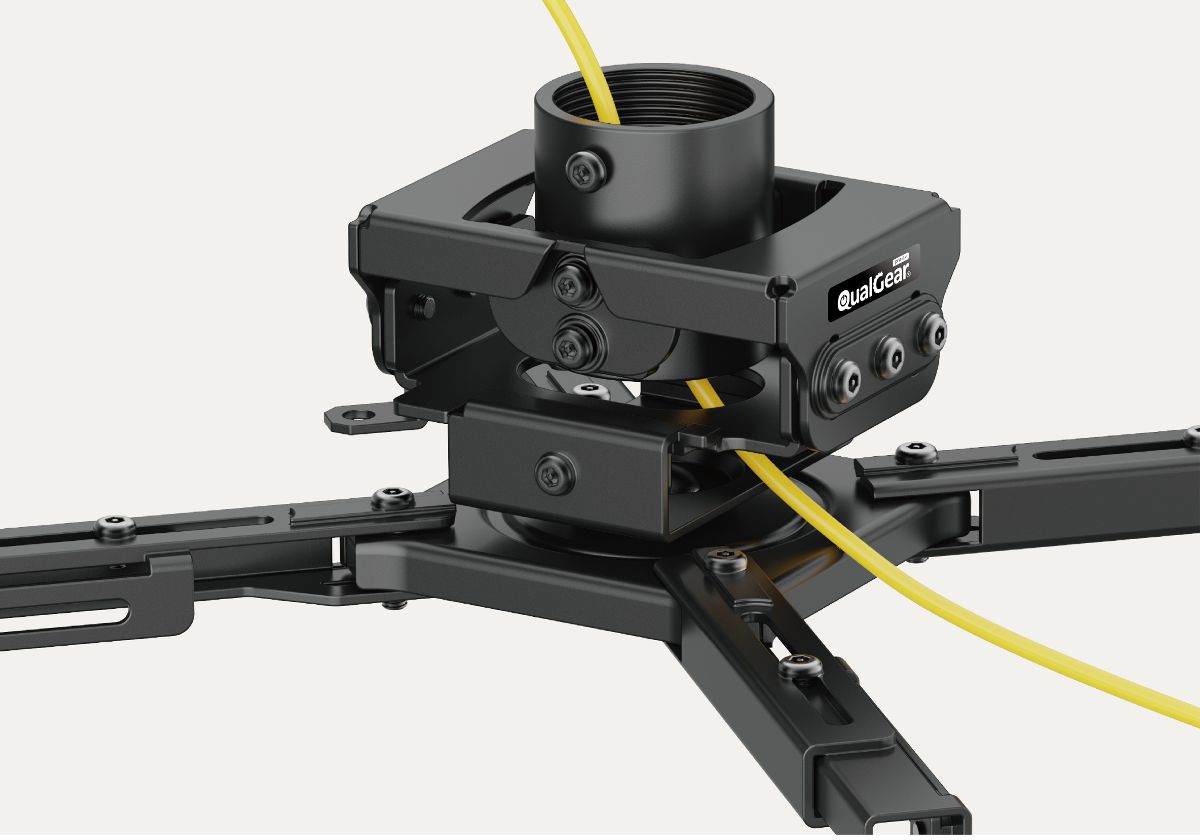

- Cables are kept concealed and organized

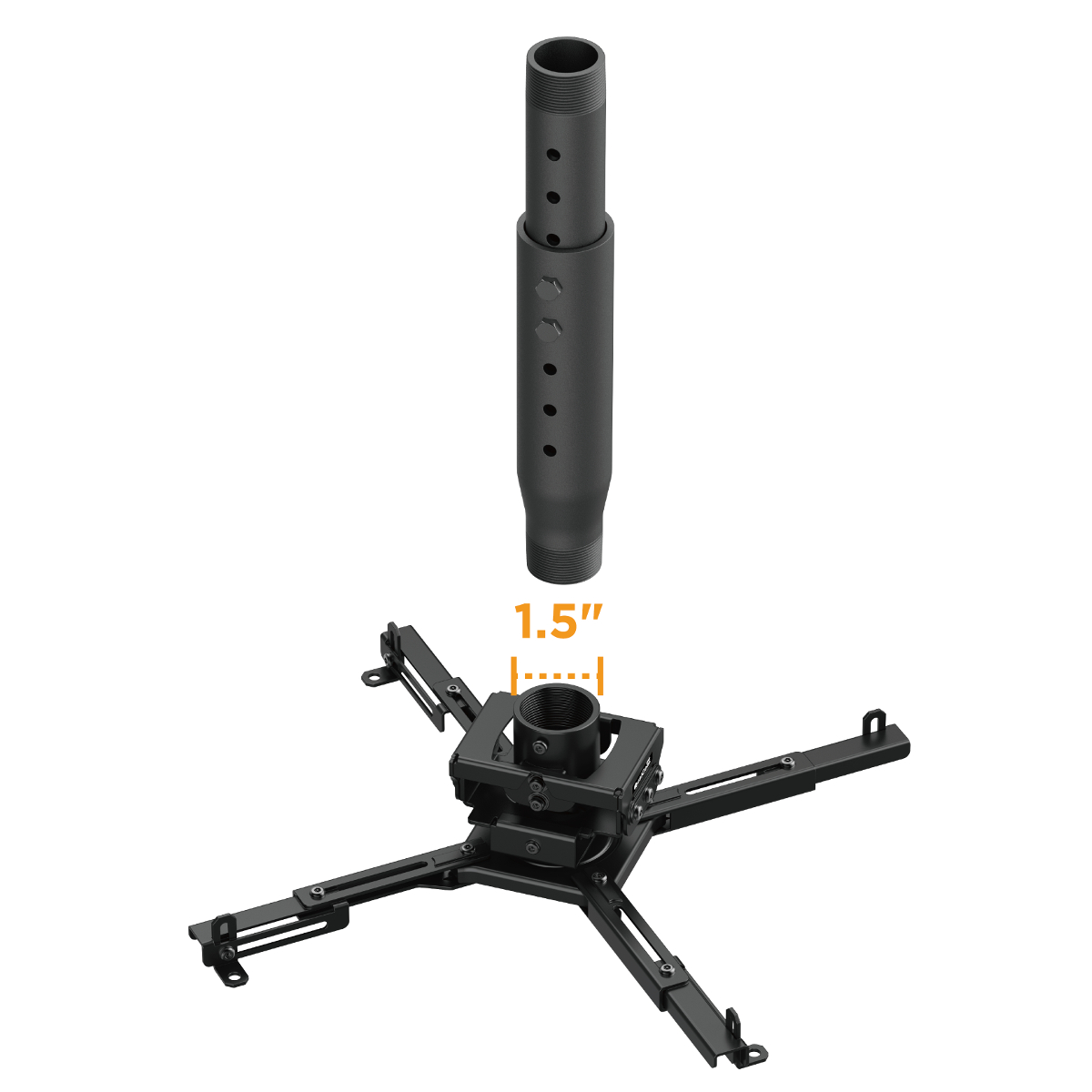

- Compatible with the standard 1.5" NPT threaded pipes

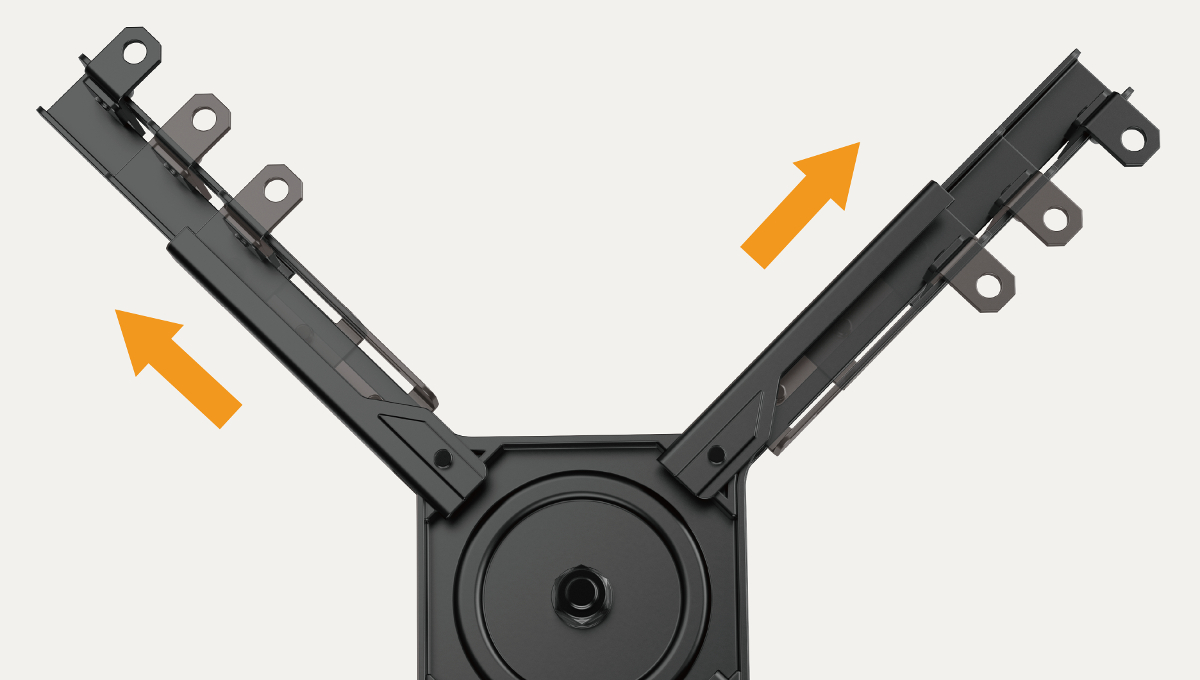

- Adjustable mounting arms fit a variety of projector models

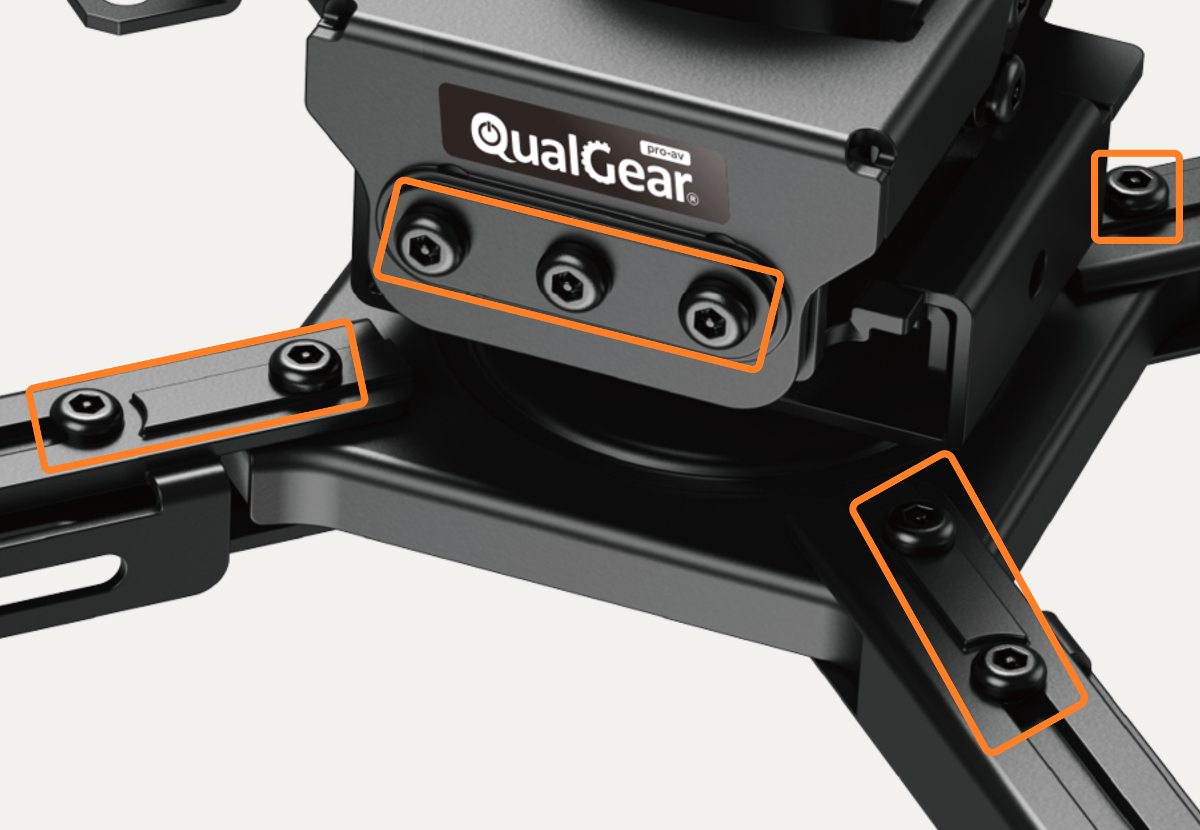

- Anti-theft screws protect the projector from theft
Specifications
| Max. projector weight |
70 lb (31.8 kg) |
| Product dimensions | 13" x 5" x 3" (330 x 127 x 76 mm) |
| Product weight | 3.5 lb (1.6 kg) |
| Color | Black |
| Roll | ± 8° |
| Pitch | ± 20° |
| Rotation (yaw) | 360° |
| 1.5 NPT thread compatible | Yes |
| Mounting profile |
3.46" (88 mm) from ceiling to projector surface |
| Min. mounting hole diameter |
7.8" (198 mm) |
