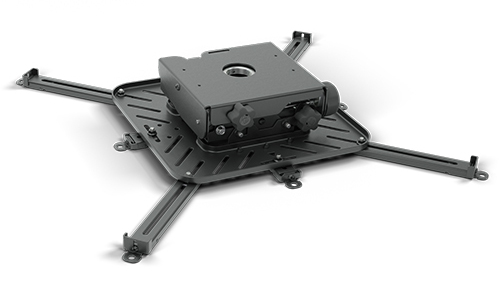

Chief VCT-UB

Large Venue Projector Mount, Black
Item #7612-2400 Model #VCTUB
List price


Chief VCT-UB

VCT Large Venue Projector Mount (Black)

The VCT Large Venue Projector mount was designed to install quickly while maintaining a sleek aesthetic. Lighter and slimmer than its predecessor, the VCM, the VCT works well with projectors between 50–150 lbs (22.7–68 kg). Tool-free MicroZone adjustment ensures accurate and reliable image registration.

Please check the Compatibility tab to determine if this mount will work with your projector.

Key Features

  • Low Profile: The new VCT is 30% slimmer than the VCM mount
  • Lightweight: The new VCT is 25% lighter than the VCM mount
  • Sleek Aesthetic: Matching knobs & hardware
  • Tool-free MicroZone+ Pitch Adjustment
    • The fine tune pitch adjustment has a 100:1 gear ratio for precise image alignment
    • Can be hand adjusted using the tool-free knob or driven with a 1/2" (13mm) socket
    • PrecisionSet™ Technology to lock in pitch adjustments

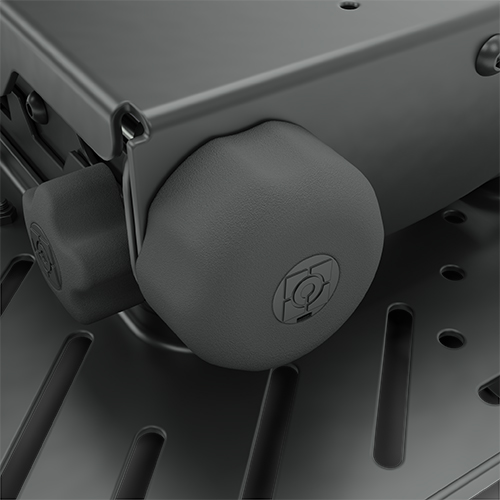

  • Tool-free MicroZone™ Roll & Yaw Adjustments
    • Gear driven tool-free knob adjustments
    • Lockout nuts enable additional image lock security


Adjustments Micro Roll ±5°
Micro Pitch ±20°
Micro Yaw ±10°
Macro Yaw 360°
Color Black
Solution Type Custom, Universal
Weight Capacity 150 lbs (68 kg)



To check whether this item is compatible with your equipment, use the form below.

  • Select a brand from the list first.
