Crimson EA-Series Adjustable Length Pipes
1.5" NPT Pipes
1.5" NPT Pipes
Features

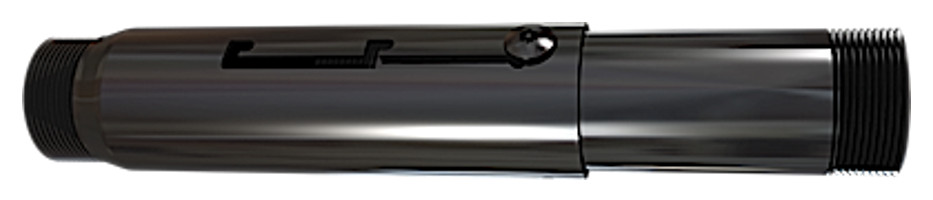

Crimson EA-Series
Adjustable length extension columns
Compatible with all mounts and ceiling adapters using standard 1.5" NPT interface. Unobstructed internal cord routing with 1"x2" outlet opening fits standard VGA connectors. Easily adjust drop length in 1" increments without disassembly. Connectors (sold separately) give ability to extend drop lengths by connecting two or more columns.
Features:
- 1" incremental drop length adjustment
- Through-column cable routing for an uncluttered look (fits standard VGA connector)
- 1" x 2" cable outlet opening fits VGA connector post-installation
- Cover plate for instances where cable outlet opening is not used
- Compatible with all ceiling interfaces using standard 1.5" NPT interface

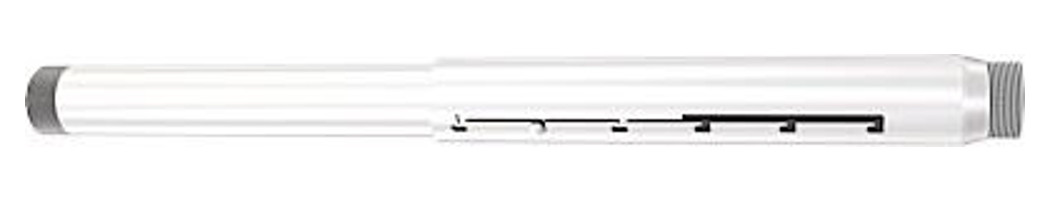

- Available in black or white (EA0611W only)
| Model | Color | Length | Weight | Price |
| EA0611 | Black | 6" – 11" (15 – 28 cm) | 3.1 lb (1.4 kg) | |
| EA0611W | White | 6" – 11" (15 – 28 cm) | 3.1 lb (1.4 kg) | |
| EA01218 | Black | 12" – 18" (30 – 46 cm) | 4.4 lb (2 kg) | |
| EA01824 | Black | 18" – 24" (46 – 61 cm) | 5.5 lb (2.5 kg) | |
| EA23 | Black | 2' – 3' (61 – 91 cm) | 7.5 lb (3.4 kg) | |
| EA24 | Black | 2' – 4' (61 – 122 cm) | 10.1 lb (4.6 kg) | |
| EA35 | Black | 3' – 5' (91 – 152 cm) | 12.6 lb (5.7 kg) | |
| EA46 | Black | 4' – 6' (122 – 183 cm) | 14.8 lb (6.7 kg) | |
| EA68 | Black | 6' – 8' (183 – 244 cm) | 19.8 lb (9 kg) | |
| EA810 | Black | 8' – 10' (244 – 305 cm) | 24.3 lb (11 kg) | |
| EA1012 | Black | 10' – 12' (305 – 366 cm) | 29.3 lb (13.3 kg) |
Specifications
General specifications for all models
| Weight capacity | 500 lb (227 kg) |
| Drop length | 6" – 12' (15 – 366 cm) See Features tab for individual lengths |
| Height adjustment | 1" increments |
| 1.5" NPT thread compatible | Yes |
| Product finish | Scratch resistant epoxy powder coat |
| Color | Black and white |
| Weight | See Features tab for individual weights |
| Warranty | 10 years |
Package contents:
Column, hardware, product manual
