• State-of-the-art 96kHz digital processing.
• Digital formats include an eight channel AES/EBU input, one coax (S/PDIF) and one TOSLINK optical, both with optional Dolby Digital® and DTS® decoding.
• Analog formats include a six channel balanced input, stereo unbalanced input with matrix decoding, and one microphone input with phantom power.
• Outputs include eight channels of balanced analog audio, plus HI/VI-N balanced outputs.
• Optional three channel bi-amped digital crossover.
• One fully configurable format button to address such issues as audio level changes or 5.1, 7.1 switching.
• Audio/Video synchronization delay configurable for each format (0—190ms) plus a surround delay (0—150ms)
• Three automation inputs include one DB25, one RS232 and one RJ45 Ethernet.
• Remote monitoring via 10/100Mbps Ethernet and local configuration via a USB port on front panel.
• SD memory card to backup and store all settings.
• Bypass supports all inputs.

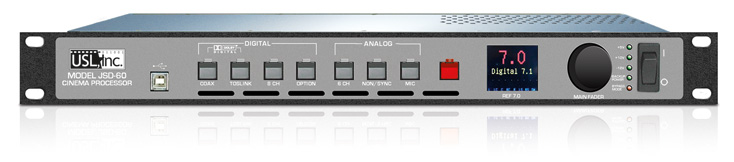

• Compact one RU chassis.
• Auto EQ included.
• Drive-in Support included.
