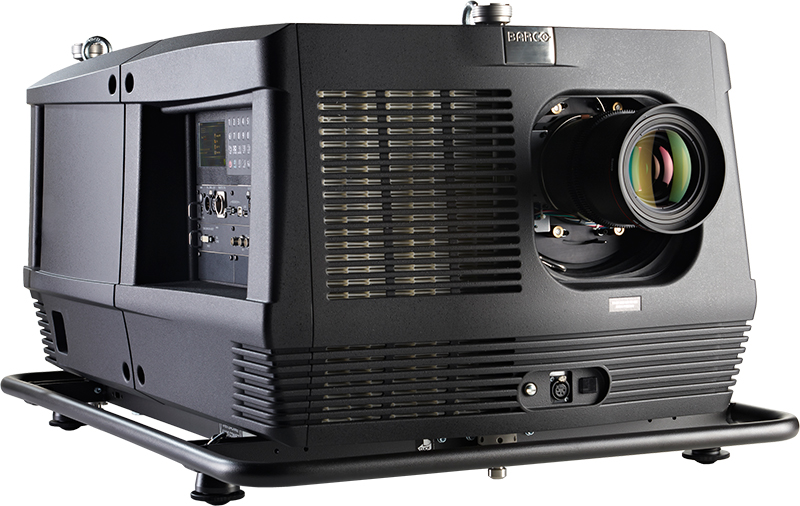

Barco HDF-W30

Flex 3-DLP Projector, 1920x1200 WUXGA, 30K Lumens, No lens, 3 year warranty
Item #0600-4070 Model #R9004540


The ultra-bright and reliable HDF-W30 projector is a perfect fit for any large venue or event that requires extra brightness to show clear, crisp images in a luminous environment.

Reliable and powerful projection
With a light output of 30,000 lumens, the HDF-W30 displays superior images even in venues with lots of ambient light. Thanks to its 3-chip DLP technology, Xenon illumination and high-contrast optical engine, the HDF guarantees crisp images with rich colors on every occasion. What’s more, it is fully ready to support 3D projection. It has also been equipped with Barco’s high-end ImagePRO technology with Athena scaler for flexible scaling.

Wireless control and preview mode
In addition, the versatile HDF-W30 offers extended wireless control features via smart phone or tablet computer. The HDF-W30’s built-in color LCD screen provides all the information you need on your projector's status and allows you to preview your connected sources.

Designed for rental and staging
Building on Barco’s experience in the rental and staging market with the proven FLM family, the HDF has been designed with the road in mind. Its compact and modular design makes it simple to install and service. Equipped with an (optional) bottom or top frame, the rugged projector can easily be rigged as well.

Fast signal distribution
Our proprietary BarcoLink technology guarantees swift signal distribution between Barco’s projectors and image processors. With BarcoLink, signals are distributed over a BNC coax cable, which is not only more durable but also enables you to lower your costs.

Choose your brightness with HDF Flex
The HDF-W30 projector is also available with light-on-demand option. Thanks to this technology, you can fully tune the light output of the projector to your event: it can be programmed to a light output of 18,000 lumens up to 30,000 lumens in 2,000 incremental steps. In this way, rental companies have more flexibility to offer their customers the light output they want.



  • TLD+ (0.37:1 WUXGA) (0.40:1 SXGA+) available Oct 2017
  • TLD+ (0.65-0.85:1 WUXGA) (0.71-0.92 SXGA+) available Nov 2017
  • TLD+ (0.67:1 WUXGA) (0.73:1 SXGA+) R9862000
  • TLD+ (1.14:1 WUXGA) (1.23:1 SXGA+) R9840775
  • TLD+ (1.39 - 1.87:1 WUXGA) (1.5 - 2.0:1 SXGA+) R9862010
  • TLD+ (1.87 - 2.56:1 WUXGA) (2.0 - 2.8:1 SXGA+) R9862020
  • TLD+ (2.56 - 4.17:1 WUXGA) (2.8 - 4.5:1 SXGA+) R9862030
  • TLD+ (4.17 - 6.95:1 WUXGA) (4.5 - 7.5:1 SXGA+) R9862040
  • TLD+ (6.93 - 10.3:1 WUXGA) (7.5 - 11.2:1 SXGA+) R9829997
  • TLD+ Ultra (1.16-1.49:1 WUXGA) (1.25-1.6:1 SXGA+) R9862005


  • 3rd-party TLD lens adapter R9871022
  • Service kit for HDF projectors R5001171
  • Service kit for Barco's HD projectors R5001173
  • FLM 3D Infitec filter set R9864200
  • HDX wi-fi module R9864110
  • IR remote control XLR R852012K
  • Lamp replacement tools and safety kit (includes training) R9854425
  • Projector adapter plate R9864050
  • All-in-one remote projector management software R9850559
  • Safety cable for TLD+ lenses R9801079

Additional Options

  • FLM carrying handle for top R9854530
  • FLM dust filters (6-pack) R9854470
  • FLM flight case R9854510


  • Ceiling mount with pulley R9827341
  • FLM Ceiling Mount CM-100 Adapter Plate R9898359
  • FLM/SLM adaptor plate R9854490

Input modules

  • 3D input module feat. SENSIO® 3D technologies R9864140
  • HDX five-cable input R9864010
  • HDX input 3G+DVI+RGBHV R9864000


  • Front and rear lens cover for all TLD+ lenses (excl. 0.73 and 4.5-7.5 lenses) R9801148
  • Front and rear lens cover for TLD + 4.5 -7.5 lens R9801149
  • Front and rear lens cover for TLD +0.73 lens R9801147
  • HDX cell phone module R9864030
  • Choose your projector brightness R9864400


  • FLM replacement lamp R9854535
  • Osram 2900W XBO WHP R9863000
  • Ushio 3000W PXL-30BA2 R9863005
  • Ushio 3600W PXL-36BA R9865000


Ultra-bright, stunning images

  • High-contrast 3-chip DLP™ engine
  • WUXGA resolution (1920 x 1200)
  • 30,000 center lumens
  • Contrast ratio of 1900:1
  • Xenon illumination
  • ImagePRO technology inside (Athena scaler)
  • Dual-core warp engine

Built for the rental & staging industry

  • Fully sealed optics
  • Extended wireless control options
  • 3D ready
  • Preview mode on LCD display
  • Removable lamp house, power supply & electronics
  • Low video delay (broadcast live events)
  • Universal lamp house for all HDF projectors
  • Easy to set up, install, service and transport thanks to modular design

Low total cost of ownership

  • Sealed engine with constant image quality over time
  • Projector designed for high resistance against external contamination
  • Customer can replace bulb
  • Power-saving mode
  • TLD+ lens range that is fully compatible with Barco's FLM and HDX projector series


Projector type: WUXGA 3-chip DLP digital projector
Technology: 0.96" DMD™ x3
Resolution: 1,920 x 1,200
Brightness: 30,000 center lumens / 28,000 ANSI lumens
Contrast ratio: 1,900:1 (standard) / 2,200:1 (high contrast mode)
Brightness uniformity: 90%
Aspect Ratio: 16:10
ScenergiX: Horizontal and vertical edge blending
Lens type: TLD+
Lenses: 0.73:1 ; 1.2:1 ; 1.25-1.6:1 ; 1.5-2.0:1 ; 2.0-2.8:1 ; 2.8-4.5:1 ; 4.5-7.5:1 ; 7.5-11.5:1
Optical lens shift: Vertical: -10% to +110% / Horizontal: +/-30% (on zoom lenses memorised)
Color correction: P7
Lamps: 4.0 kW xenon
Lamp lifetime: 600 Hrs
Transport with lamp: Yes
Lamp house, quick replace: Yes
Customer bulb replace: Yes
Lamp warranty (field replace/ factory replace): 90 days, 500 hours / pro rata 500 hours
Sealed DLP™ core: Standard
Optical dowser: Standard
Picture-in-picture: Two sources simultaneously
Orientation: table - ceiling - side (portrait)* - vertical* lamp door down/bottom
Others: can be controlled by DMX 512 console, warping
DMX 512: standard
WARP: direct adjust OSD + toolset
Integrated web server: yes
CLO (constant light output): Standard
3D: Active eyewear (optional), passive Infitec (optional), passive circular (optional), triple flash up to 200Hz
Inputs: DVI-I (HDCP including analog RGB YUV), SDI/HDSDI/Dual HDSDI/3G/BarcoLink
Optional Inputs: 5-BNC RGBHV (RGBS/RGsB, YUV CS/SOY, Composite video, S-Video); DVI-I (HDCP including analog RGB YUV) + BarcoLink/SDI/HDSDI/Dual HDSDI/3G; 3D active input (HDMI/DisplayPort) feat. SENSIO 3D
Input Resolutions: From NTSC up to QXGA (2,048 x 1,536)
Max. pixel clock: 200 MHz
Software tools: Projector Toolset + Android app
Control: XLR wired + IR, RS232, Wifi, GSM (opt)
Network connection: 10/100 base-T, RJ-45 connection, Wifi (optional)
Power requirements: 200-240V / 50-60Hz
Max. power consumption: 4,800W / STBY < 10W
Noise level (typical at 25°C/77°F): 60dB(A)
Operational ambient temperature: 0-40°C / 32°-104°F
Operational humidity: 0-80% (non condens)
Dissipation BTU: Max. 16,378 BTU/h
Dimensions (WxLxH): 27.83 x 40.35 x 21.57 inches
Weight: 218.25lbs
Shipping Dimensions: 47.24 x 38.58 x 29.92 inches
Shipping Weight from Factory: 333lbs
Standard accessories: Power cord; wireless/XLR wired rugged remote control, bottom rigging kit/clamps
Certifications: Compliant with UL60950-1 and EN60950-1 complies with FCC rules & regulations, part 15 Class A and CE EN55022 Class A, RoHS
