Epson PowerLite 1266

LCD Projector, 1280x800 WXGA, 3600 Lumens, 2 year warranty
Part #: 0600-4254    Mfr #: V11H845120

Epson PowerLite 1266

Overview

Epson PowerLite 1266

Widescreen, wireless portable HD projector with WXGA resolution and MHL

Featuring enhanced setup and broad connectivity options, the PowerLite 1266 wireless portable projector offers reliable, powerful performance. Delivering 3,600 lumens of color/white brightness, the 1266 achieves more accurate, vivid color, even in well-lit rooms.

Widescreen WXGA resolution (1280 x 800) and advanced wired and wireless support — including MHL® and HDMI® — allow users to project HD-quality presentations from laptops, mobile and streaming devices. Plus, Epson® 3LCD projectors deliver remarkable color accuracy, with high Color Brightness and wide Color Gamut.



  • Projection System: 3LCD, 3-chip technology
  • Native Resolution: 1280 x 800 (WXGA)
  • Color Brightness: 3600 lumens
  • White Brightness: 3600 lumens

Features

  • More accurate, vivid color, even in well-lit rooms — 3,600 lumens of equal color and white brightness1
  • WXGA resolution (1280 x 800) — for HD-quality presentations; plus an array of connectivity options
  • Wireless — project from your laptop, tablet, or smartphone3 without plugging into the projector, so you can move freely about the room
  • Remarkable color accuracy — High Color Brightness* and wide Color Gamut4 with Epson
  • Share HD video directly from smartphones, tablets or streaming devices — supports MHL-enabled devices2 for mirroring and charging5
  • Fast wireless setup for your mobile device — just scan the on-screen QR code using your phone or tablet
  • Fast, easy setup with Epson — get up and running in no time with easy image adjustments and convenient control
  • Works with the latest laptops and media players — supports HDMI, the standard in connectivity, for digital video and audio in one cable
  • Portability you need for presentations on the go — carrying case included

Eco Features

  • RoHS compliant
  • Recyclable product6
  • Epson America, Inc. is a SmartWay™ Transport Partner7

Notes:
* Color brightness (color light output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions.

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 Includes one Mobile High-Definition Link® (MHL) HDMI port.

3 For wireless functionality, including via the Epson iProjection™ App, the projector must be configured on a network, either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner’s manual to determine if a wireless LAN module must be purchased separately to enable a wireless connection. Not all Epson projectors are able to be networked. The Epson iProjection App does not support all files and formats. See www.epson.com for details.

Gamut volume in brightest mode, measured by a third-party lab in 3D in the CIE L*a*b* coordinate space.

5 Depending on your MHL device, charging may not be supported.

6 For convenient and reasonable recycling options, visit www.epson.com/recycle

7 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.

8 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.

Specifications

Specifications Projector:

Projection System: Epson 3LCD, 3-chip technology
Projection Method: Front / rear / ceiling mount
Driving Method: Epson Poly-silicon TFT Active Matrix
Pixel Number: 1,024,000 dots (1280x800) x 3
Color Brightness - Color Light Output: 3600 lumens1
White Brightness - White Light Output: 3600 lumens1
Aspect Ratio: 16:10 native, supports 4:3 and 16:9
Resolution: 1280 x 800 (WXGA)
Resize: 800 x 600 (SVGA), 1024 x 768 (XGA),1152 x 864 (SXGA), 1280 x 960 (SXGA2), 1280 x 1024 (SXGA3), 1440 x 900 (WXGA+), 1400 x 1050 (SXGA+),1600 x 900 (WXGA++), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+)
Size - projected distance: 30" – 300" (0.9 – 9.0 m)
Keystone Correction: Automatic: Vertical: ±30 degrees
Manual: Horizontal: ±30 degrees (Easy-Slide Horizontal Image Correction)
USB Plug 'n Play: Projects audio and video
PC and Mac® compatible
Contrast Ratio: Up to 15,000:1
Color Reproduction: Up to 1.07 billion colors
Lamp Type 210 W UHE
Lamp Life: ECO mode:     Up to 10,000 hours8
Normal mode: Up to 6,000 hours8

General:

Operating Temperature: 41° to 95° F (5° to 35° C)
Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz
Power Consumption: ECO mode:            228 W
Normal mode:        315 W
Dimensions (WxDxH): 11.9" x 9.9" x 3.6" (including feet)
11.9" x 9.8" x 3.4" (excluding feet)
Weight: 6.2 lb (2.8 kg)
Security: Password Protect function

Projection Lens:

Type: Optical zoom (Manual) / Focus (Manual)
F-number: 1.50 – 1.71
Focal Length: 20.42 – 24.50 mm
Zoom Ratio: 1.0 – 1.2
Throw Ratio Range: 1.38 (Zoom:Wide) – 1.68 (Zoom:Tele)

Projector Details:

Display Performance: NTSC: 480 lines
PAL:    576 lines
(Depends on observation of the multi-burst pattern)
Input Signal: NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM

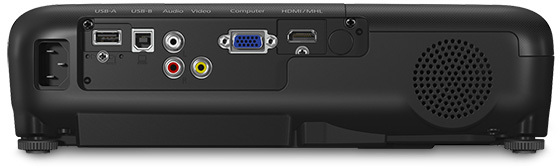

Interfaces:
  • HDMI x 1 with MHL connectivity
  • Computer/component video: D-sub 15 pin x 1
  • Composite video: RCA (Yellow) x 1
  • Audio in: RCA x 2 (1 White/1 Red)
  • USB connector Type A x 1: PC-free USB & Other
  • USB connector Type B x 1: USB Plug 'n Play
Speaker: 2 W (mono)
Fan Noise: ECO mode:     28 dB
Normal mode: 37 dB

Remote Control:

Features: Source search selection, power, volume, e-zoom, A/V Mute, freeze, menu, page up and down, help, auto, mouse functions
Operating Distance: 19.7 ft (6 m)
Operating Angle: Right / Left:     ±30 degrees
Upper / Lower: ±15 degrees

Wireless:

Mode: Infrastructure, Access Point
Supported Speeds: IEEE 802.11b (2.4 GHz): 11 Mbps*
IEEE 802.11g (2.4 GHz): 54 Mbps*
IEEE 802.11n (2.4 GHz): 130 Mbps*
*Maximum speed and range is achievable when used with same enhanced mode technology. Actual data rates, features and performance may vary depending on your computer system, the environment and other factors.
Type: 802.11b/g/n (2.4 GHz) (DSSS/CCK, OFDM)



Warranty:

Two-Year Projector Limited Warranty and 90-Day Lamp Limited Warranty



What's in the Box:

  • PowerLite 1266 projector
  • Power cable
  • Computer cable (VGA)
  • USB cable
  • Soft carrying case
  • Projector remote control
  • Batteries
  • User manual CD
  • Quick Setup Sheet



Notes 1-8: See Features tab.
