Epson PowerLite 109W

LCD Projector, 1280x800 WXGA, 4000 Lumens, 2 year warranty
Part #: 0600-4260    Mfr #: V11H861020

Epson PowerLite 109W

Overview

Epson PowerLite 109W

Widescreen classroom projector with enhanced connectivity and audio

The bright, widescreen PowerLite 109W classroom projector features advanced connectivity and premium 16 W audio.

Offering remarkable color accuracy, Epson® projectors deliver high Color Brightness. This reliable performer features 4,000 lumens of color/white brightness, plus WXGA resolution. Its long-lasting lamp, which delivers up to 12,000 hours in ECO Mode, lowers maintenance costs.

Optional wireless and built-in RJ-45 connectivity offer advanced network control and support the simultaneous display of multiple screens — including from Chromebooks. It also features easy setup and 2x HDMI® (1x MHL®).



  • Projection System: 3LCD, 3-chip technology
  • Native Resolution: 1280 x 800 (WXGA)
  • Color Brightness: 4000 lumens
  • White Brightness: 4000 lumens

Features

  • Remarkable color accuracy — High Color Brightness1 and wide Color Gamut6 with Epson
  • More accurate, vivid color, even in well-lit rooms — 4,000 lumens of equal color and white brightness2
  • Brilliant, widescreen image quality — native WXGA (1280 x 800) resolution; 16:10 format
  • Long-lasting, low-cost lamps — up to 12,000 hours in ECO Mode3
  • Enhanced wireless display technology — connect up to 50 Chromebook™, Mac®, PC, iOS® and Android™ devices, and simultaneously display up to four screens, with Epson iProjection™4 (wireless module sold separately)
  • Two-way content sharing — teachers can push content from the projector to wirelessly connected devices and control which device screens to display; students can make notes and send their work back to the projector4
  • Advanced network control — RJ-45 and optional wireless connectivity for remote projector management, presentations over the network, and more
  • Flexible, easy setup — 1.2x optical zoom, ±30 degrees vertical and horizontal keystone correction, Easy-Slide control and Quick Corner®
  • 2x HDMI — connect multiple A/V devices; includes 1x MHL-enabled port5
  • Powerful, engaging sound — includes a built-in 16 W speaker and microphone input; or, use external speakers, even in Standby Mode

Eco Features

  • RoHS compliant
  • Recyclable product7
  • Epson America, Inc. is a SmartWay™ Transport Partner8

Notes:

1 Color brightness (color light output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions.

2 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

3 ECO Mode is up to 12,000 hours. Normal Mode is up to 6,000 hours. Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.

4 For wireless functionality, including via the Epson iProjection App, the projector must be configured on a network, either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner’s manual to determine if a wireless LAN module must be purchased separately to enable a wireless connection. Not all Epson projectors are able to be networked. The Epson iProjection App does not support all files and formats. See www.epson.com for details.

5 Includes one Mobile High-Definition Link® (MHL) HDMI port.

6 Gamut volume in brightest mode, measured by a third-party lab in 3D in the CIE L*a*b* coordinate space.

7 For convenient and reasonable recycling options, visit www.epson.com/recycle

8 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.


Specifications

Specifications Projector:

Projection System: 3LCD, 3-chip technology
Projection Method: Front / rear / ceiling mount
Driving Method: Poly-silicon TFT Active Matrix
Pixel Number: 1,024,000 dots (1280x800) x 3
Color Brightness - Color Light Output: 4000 lumens2
White Brightness - White Light Output: 4000 lumens2
Aspect Ratio: 16:10
Resolution: 1280 x 800 (WXGA)
Resize: 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 960 (SXGA2), 1280 x 1024 (SXGA3), 1366 x 768 (WXGA60-3), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1680 x 900 (WXGA++), 1600 x 1200 (UXGA60)
Size - projected distance: 33" to 320" (0.84 to 8.13 m) (Zoom:Wide)
Keystone Correction: Vertical:     ±30 degrees (Automatic)
Horizontal: ±30 degrees (Slider)
USB Plug 'n Play: Projector is compatible with PC and Mac® computers
Contrast Ratio: Up to 15,000:1
Color Processing: 10 bit
Color Reproduction: Up to 1.07 billion colors
Lamp Type 210 W UHE
Lamp Life: ECO mode:     Up to 12,000 hours3
Normal mode: Up to 6,000 hours3

General:

Operating Temperature: 41° to 95° F (5° to 35° C)
Power Supply Voltage: 100 – 240 V AC ±10%, 50/60 Hz
Power Consumption: ECO mode:            237 W
Normal mode:        326 W
Communication on: 2.0 W Standby
Communication off: 0.2 W Standby
Dimensions (WxDxH): 11.6" x 10.2" x 3.5" (including feet)
11.6" x 10.2" x 3.4" (excluding feet)
Weight: 6.17 lb (2.8 kg)
Security: Kensington®-style lock provision
Padlock
Security anchor bar

Projection Lens:

Type: Manual focus
F-number: 1.49 – 1.72
Focal Length: 16.9 mm – 20.28 mm
Zoom Ratio: 1.0 – 1.2
Throw Ratio Range: 1.30 (Zoom:Wide) – 1.56 (Zoom:Tele)

Projector Details:

Display Performance: NTSC: 480 lines
PAL:    576 lines
(Depends on observation of the multi-burst pattern)
Input Signal: NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM

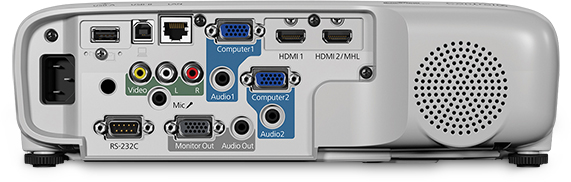

Interfaces:
  • 1x USB-A
  • 1x USB-B
  • 1x LAN
  • 1x HDMI
  • 1x HDMI/MHL®
  • 2x Computer/Component
  • 1x Video
  • 1x RS-232c
  • 1x Stereo Mini-jack (Mic)
  • 1x Monitor Out
  • Audio 1 & 2
  • Audio L & R
  • 1x Audio Out
  • Wireless LAN port: 802.11 b/g/n (optional – module sold separately)
Speaker: 16 W (mono)
Fan Noise: ECO mode:     28 dB
Normal mode: 37 dB
Eco Features: RoHS compliant
Recyclable product7
Epson America, Inc. is a SmartWaySM Transport Partner8

Remote Control:

Features: A/V Mute, Freeze, Split, Aspect, Color Mode, Auto, MHL Menu, Volume
Operating Distance: 19.7 ft (6 m)
Operating Angle: Right / Left:     ±30 degrees
Upper / Lower: ±15 degrees

Warranty

Two-Year Projector Limited Warranty and 90-Day Lamp Limited Warranty



What's In The Box:

  • PowerLite 109W Projector
  • Power cord
  • Computer cable (VGA)
  • Projector remote control
  • Batteries
  • Software CD
  • Quick setup sheet
  • Warranty card
  • Password protect sticker

Notes1-8: See Features tab.
